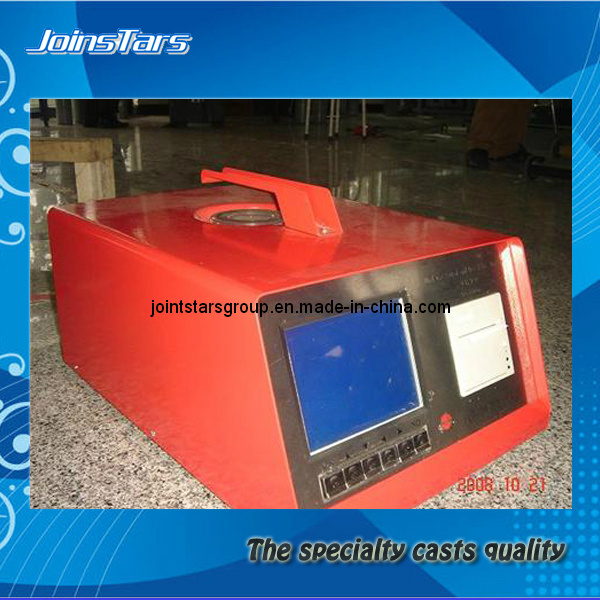

Automotive Emission Tester for Antomotive Inspect

Main Function:

Used to measure the concentration of HC, CO, CO2,
O2, NOx in the Automobile Exhaust Gas
Used to measure opacity and light absorption coefficient, easy to operate
Free acceleration experiments and adopts the transient measurement function, and automatic processing of test data and display measurements.
Two kinds of Test Function for gasoline automotive: General and Two-speed idle
Full English Menu Operation, LCD (Liquid crystal) screen display
Automatic calculation and show the air-fuel ratio
Equipped with RS232 digital serial communication interface to facilitate networking
Equipped with functions of plate number and time display
Can store and search 500 groups of data, built-in printer
Measurable with Liquefied Petroleum Gas (LPG), Compressed Natural Gas(CNG), and gasoline and other alternative fuel vehicles


Main Technical Parameter:

Measurement range:
CO: 0~ 10% CO2: 0~20%
HC: 0~10000ppm O2: 0~25%
NOx: 0~5000ppm N: 0~99.9%
K: 0~16.00m-1

Response Time:
CO, HC, CO2≤ 10S;
NOx, O2≤ 15S

Length of Optical channels: 215mm

Power: AC 220V; 50Hz

Preheating time:
Gas test: 10min; Smoke test: 15min

Indication Error:
CO: ± 5% CO2: ± 5%
HC: ± 5% O2: ± 5%
NOx: ± 5% Non-transparence N: ± 2%

Gross weight:
Control unit: 6Kg, Test unit: 7.5Kg

Packing size:
Control unit: 620*495*325mm
Test unit: 515*340*320mm
