Automatic Downfeed CNC Touch Screen Milling Machine
| Price: |
NegotiableSet |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T |

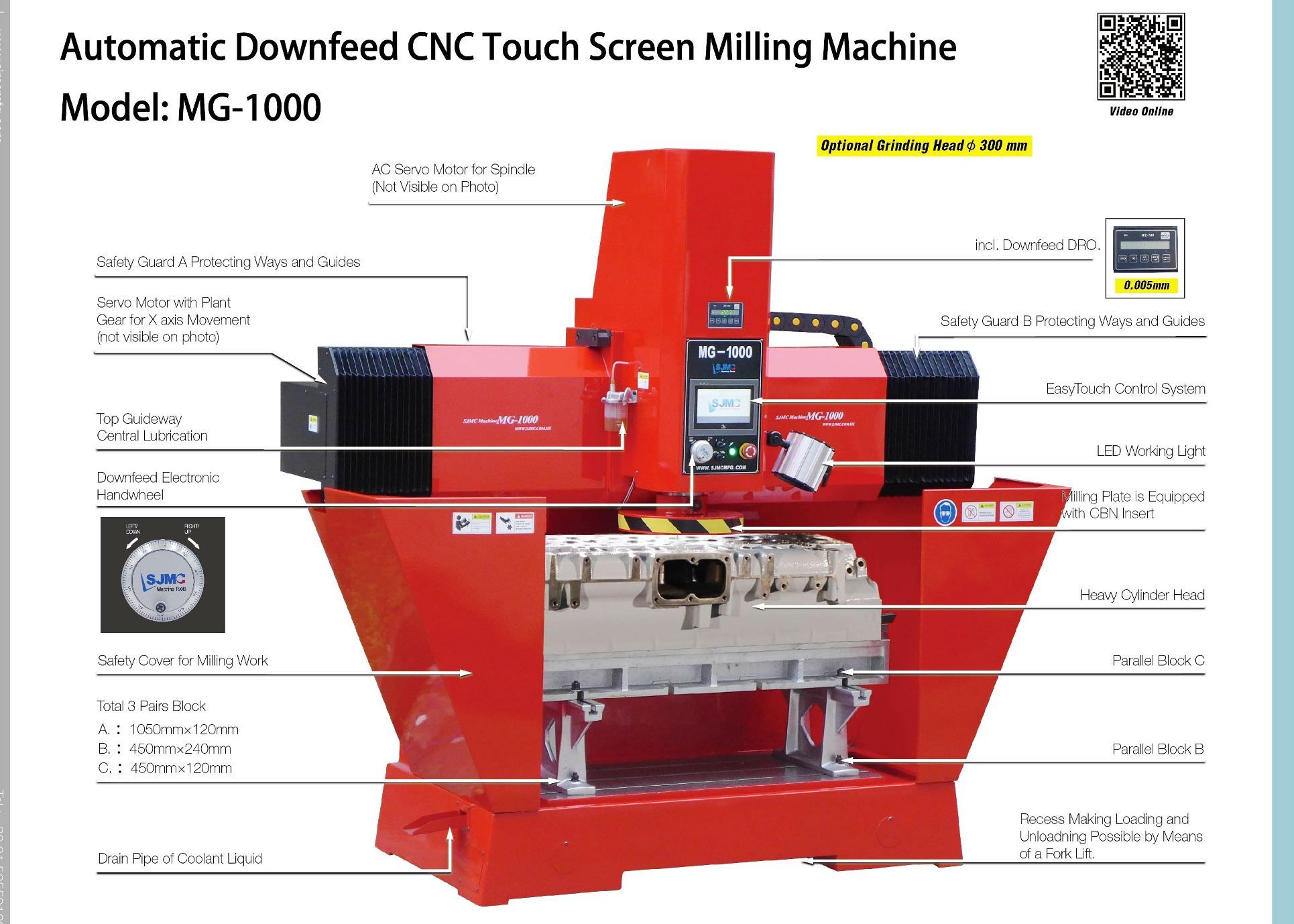

Automatic Downfeed CNC Touch Screen Milling Machine Model: MG-1000 is Mech-Electrical highly integrated machine uses touch key and screen display. The milling plate longitudinal movement by servo motor, the spindle vertical movement and rotation controlled by servo motor, three axis linkage control, high precision, high efficiency. This machine has a nice looking, stability, and supermatic, easy to use interface of EasyTouch control system, you can achieve the effect of finishing at RA1.6, flatness can reach to 0.01mm/300mm , same as the grinding. It is suitable for middle size, small size cylinder head, cylinder block and other Industrial parts required high-precision, high finish.Main Specification | Model | MG-1000 |
| Control System | EasyTouch 3 Axis |
| Spindle Speed | 200 - 1400 rpm stepless |
| Milling Plate Motor | 4 kW |
| Milling Plate Traverse Motor | 0.75 Kw |
| Downfeed Motor | 0.4 kW |
| Max. Milling Length | 1000 mm |
| Max. Milling Width | 300 mm |
| Max. Milling Height of Work Piece | 650 mm |
| Working Table Surface ( L×D ) | 1000×400 mm |
| Milling Plate Dia. | 300 mm |
| Number of Milling Insert | 8 piece |
| Vertical Movement of Milling Plate | 150 mm |
| Milling Plate Traverse Speeds , Stepless | 200 ~ 1800 mm / min |
| Length of Machine | 2010 mm |
| Width of Machine | 810 mm |
| Max. Height of Machine | 1850 mm |
| Min. Height of Machine | 1980 mm |
| Flatness for Grinding | 0.01 mm / 300 mm |
| Surface Roughness for Grinding | Ra. 0.63 |
| Package Size ( L×D×H ) | 2250×1100×2200 mm |
| N.W. | 1500 Kg |
| G.W. | 1800 Kg |
| Prod Model: |
MG1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
CNC Touch Screen for Automatic 2 Axis |
| Precision: |
High Precision |
SJMC Corporation, founded in 1997, is a national foreign-trade company combined with production and technology which is wellknown in supplying the service of Overall Mechanical processing solution in the filed.
SJMC' products are widely used in automotive, manufacturing, aerospace and defense, construction and farming equipments, oil and energy field, mold and die industries, etc. From the beginning, our company made it as our mission to provide machines of good quality at competitive price to all customers. Rely on good relationships with many famous manufactories and final assembly these inputed products in our house to realize our concept of reducing the cost.
SJMC Machines involve all kinds of machine tools and motor maintenance equipments, e. G. Vertical and horizontal machining centers, lathe, milling machine, drilling machine, boring machine, grinder, measuring equipments etc. Which offer users high throughput, high quality, reliable solution and cost effective to production machining operations.
SJMC has developed successfully of its own corporate philosophy of High quality, Cost effective, first-rate service and has underpinned the development of world's manufacturing by offering machine tools that satisfy manufacturing makers. These years, SJMC has set up close business co-operation with many companies in the world through good services and mutual trust.
Choosing SJMC as your machining partner, you are free to imagine a more productive, cost effective solution and we assure you that we can together to make your dream come true.
