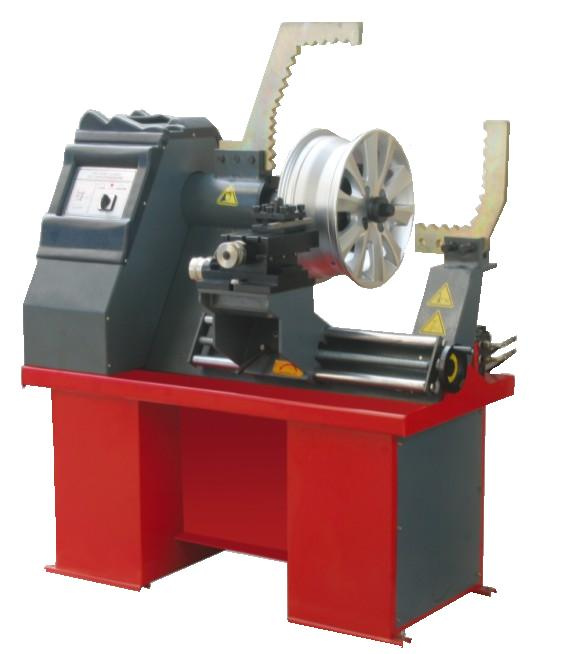

Rim Straightening Machine with Lathe

Specifications
Designed and manufactured to repair by straightening all kind of steel, aluminium and alloy wheels.
RIM STRAIGHTENING MACHINE With LATHE System.

The model UX580 is designed and manufactured to repair by straightening all kind of steel, aluminium and alloy wheels with range diameter between 10'nd 22.5'e system uses an easy to
Handle piston controlled by an hydraulic unit that, conveniently positioned, pushes on the damaged part of the rim taking it back to the original shape. Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean tothe different rim profiles. LJX580 moreover is equipped with a lathe unit that allows, after the wheel straightening operation, to remove dents on the edges.

DIMENSIONS

Height 1250 mm
Width 1110 mm
Length 900 mm
Net Weight 370 Kg

MOTOR SPECIFICATIONS

Mechanic 0, 55 kw, 1400 rpm, 0, 75 hp,
3 phase - single phase, 220V - 380 V
Hydraulic 0, 75 kw 1400 rpm, 1 hp,
3 Phase - single phase, 220V - 380 V
Sound 35 db
HYDRAULIC PISTON POWER

Total pressure = π R2 x 160 (Working pressure bar)
Total pressure = 3, 14* (3, 15 x 3, 15) = 31, 156kg
Total pressure = 31, 156 x 160 = 4 984, 96kg

Diameter of piston cylinder we used is 63mm which comes to as radius 3, 15 cm.

As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines.

STANDARD ACCESSORIES LIST

1.18 pcs rim attaching center
2.1 pcs (mihengir) metal pointer
3.7 pcs press tips
4.3 pcs support axis for press tips
5.1 pcs lever
6.1 pcs lathe pen
7.1 pcs upper support
8.1 pcs lower support
9.4 pcs Support pins
10. Flange nuts and bolts
