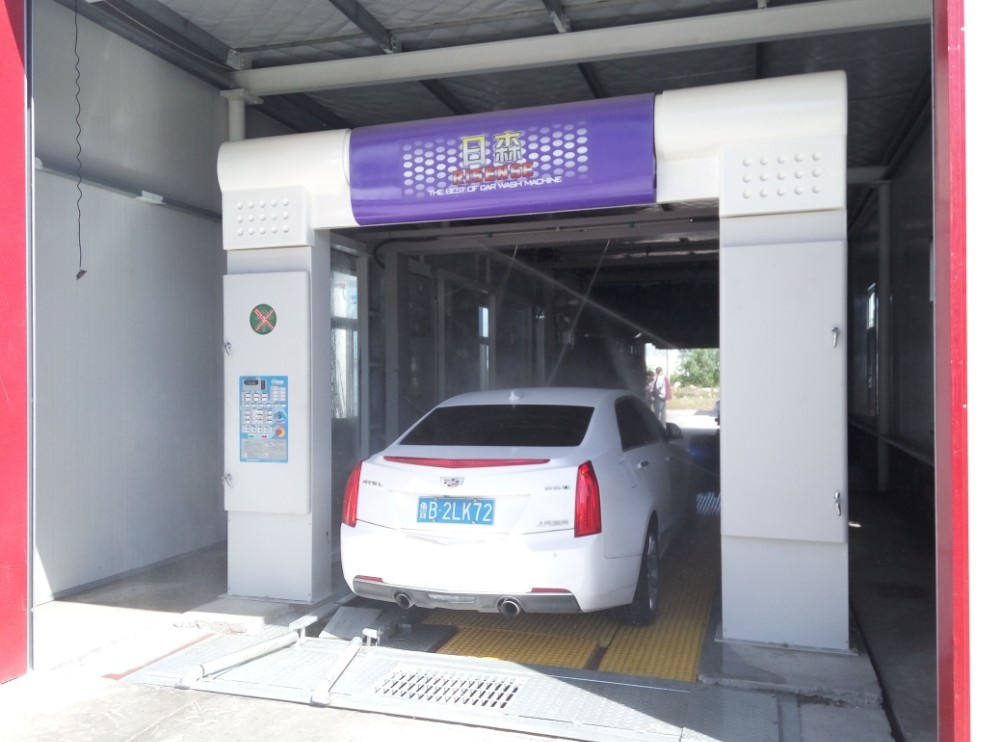

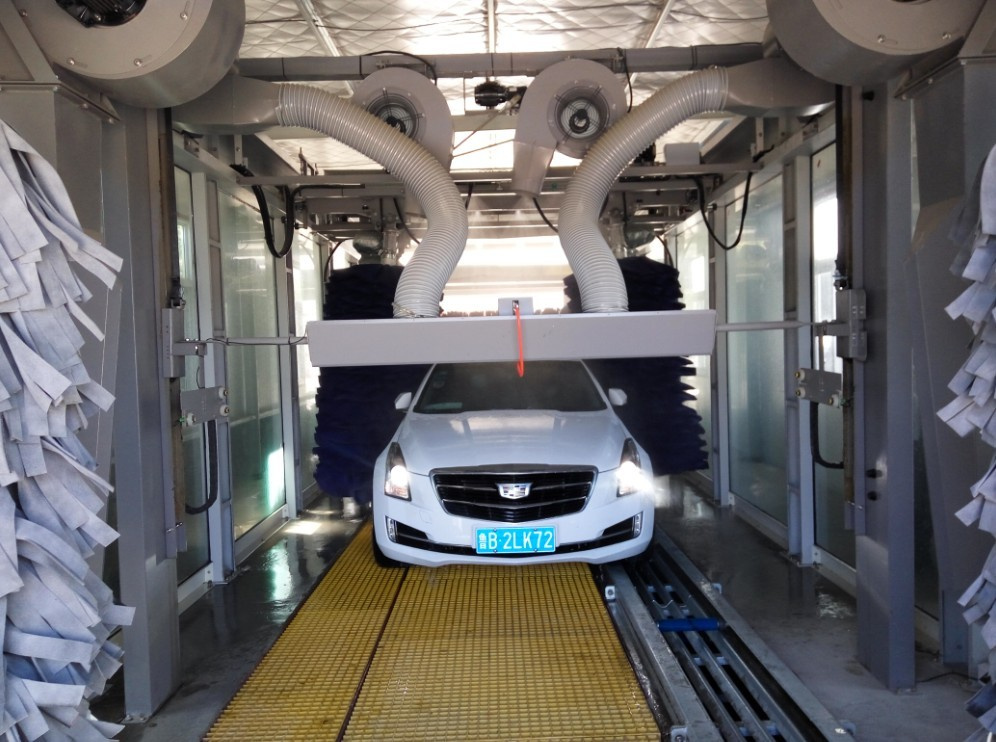

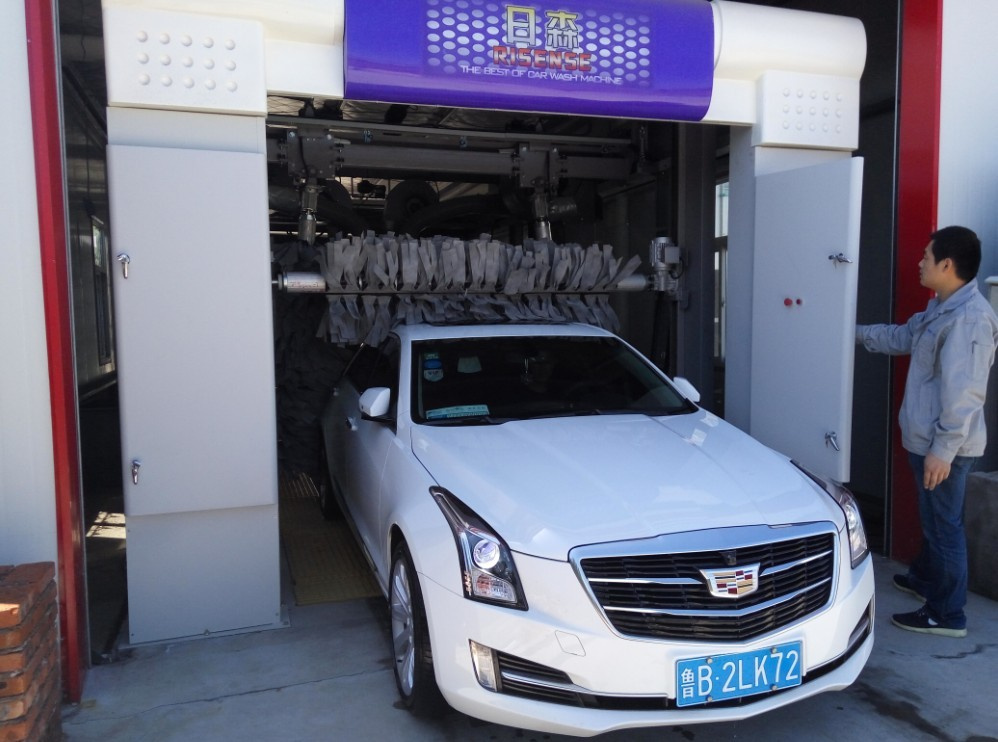

Automatic Conveyor Car Washing System with Polishing Brushes
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Company Information
Qingdao Risense Mechatronics Co., Ltd. As a prominent manufacturer, supplier and exporter, has grown to be a leading force to produce all kinds of car wash machine with the MK's advanced technology and core components from Japan.
We have developed a strong reputation over the years amongst our customer from Malaysia, India, Middle East, Africa and Russia for providing a high quality car wash machine and amazing installation case with competitive price and after sales services.
All of us at Risense take great pride in offering our car wash solutions for your consideration to make your car wash business booming. We are happy to answer any questions you may have or discuss with you which machine is best suit for your needs.
CC-693 Fully automatic tunnel car wash machine
Main Features:
1. High pressure water pre-washing and chassis sprinkling.
2. Shampoo(Foams) sprinkling and wax washing systems.
3. Nine brushes with foam material and lifelong warranty.
4. Three blowers dry the car body completely and precisely.
5. Three polishing brushes with chamois leather.
6. PLC control system & humanized operate pannel.
7. Intelligent avoidance system to wash all kinds of car types.
8. Main technology and machine design from Japan.
9. Electroplated conveyor equipped with the tire corrector device.
10. Hop-dip galvanized steel frame keep the whole machine antirust.
11. Motors,electrical apparatus,pumps all imported from abroad.
12. With one years warranty and lifelong maintenance service.
13.Technician to customer site installation and maintenance training.
| Specification |
| Overall dimensions | 15500x3800x3440mm |
| Assembling range | 16000x3800mm |
| Site requirement | 35000x5800mm |
| Available size for car | 5200x2150x2200mm |
| Available car to wash | car/jeep/coach within 10seats |
| Washing time | 1'12"/car |
| Car wash capacity | 45-50cars/hour |
| Mains voltage | 3PHASE AC380V /50HZ |
| Total power | 37.82 |
| Water supply | DN25mm/Waterflow rate≥200L/min |
| Air pressure | 0.75-0.9Mpa/Airflow rate≥0.6m³/min |
| Water/electricity consumption | 180L/Car, 0.6kw/Car |
| Shampoo consumption | 10ml/Car |
| Water wax consumption | 12ml/Car |
FAQ
Which service will you offer?
Beside to manufacture touch-free car wash, rollover car wash, tunnel car wash, bus and truck wash, wheel wash system with our own brand. We also offer ODM and OEM from all customers' requirements.
Who will install my car wash?
We offer you the construction design drawings for your car wash bay, then we will send our engineer to your side to install and operation training.
How long will the machine quality guarantee?
1. We have made the car wash machine running-in times before leave factory, and the failure rate is approaching zero, for the pumps, motors and electronic control panel systems all form Japan.
2. The whole car wash machine guaranteed one year, and parts of components guaranteed 2-3 years. The wearing parts will offer you additional, such as wheels, chains and nozzles.
3. The working life of the car wash can up to 15-20years.
| Prod Model: |
cc 693 |
| Machine Dimension: |
9500X3800X3440mm |
| Assembling Range: |
11600X3800mm |
| Moving Range: |
10470X3700mm |
| Available Size For Car: |
5300X2200X2100mm |
| Available Car To Wash: |
Car/Jeep/Coach Within 10seats |
| Washing Time: |
1'45"/Car |
| Car Wash Capacity: |
45-55cars/Hour |
| Mains Voltage: |
3 Phase AC380V /50Hz |
| Total Power: |
34.82kw |
| Fuel: |
Electric |
| Certification: |
ISO9001 |
| Material: |
Metal |
| Condition: |
New |
| Function: |
Car Wash |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
