| Prod Model: |
WS-1100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2250X4900X1300mm |
| Type: |
Fixed Style |
| Automatic Type: |
Fully Automatic |
| Solids Remove: |
Automatic |
| Fuel: |
Electric |
| Certification: |
ISO4001, ISO9001 |
| Material: |
Metal |
| Condition: |
New |
Product Description

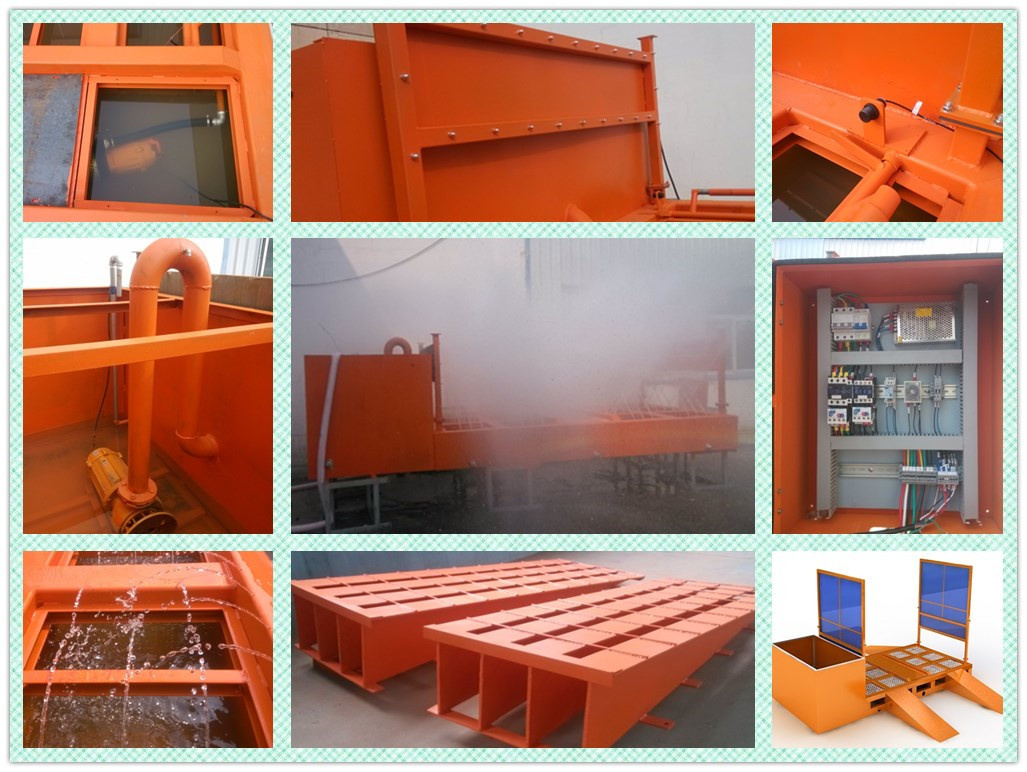

Automatic Wheel Wash Systems
Main Features:
1. Its ideal for construction industry, mines, energy plants, landfills, quarries and garbage dump.
2. To provides 360° water spray on the bus and truck wheel, vehicle chassis with high pressure water.
3. The wheel washing and solids remove work can be finished fully automatic by photoelectric sensors.
4. The frame adopted high quality steel with preservative treatment can keep the machine stable and long life use.
5. High quality control systems, motors, pumps and photoelectric sensors keep the machine in great running.
6. Very easy to install, maintenance and relocation with our after sales service and lifetime warranty.
| Model | WS-1100W |
| Overall dimensions | 2250x4900x1300MM |
| Water tank size | 2250x1250x1250MM |
| Ramps size | 2000x750x400MM |
| Mains voltage | 3PHASE AC380V /50HZ |
| Total power | 9KW |
| Water supply | DN25mm≥120L/min |
| Water consumption | 120-150L/each |
| NO.of chassis nozzles | 100pcs |
| NO.of sides nozzles | 48pcs |
| Pumps (Total 3 pumps ) | 7.5KW*1, 0.4KW*1 |
| Washing pressure | 3-4kg/cm2 |
| Available vehicles to wash | 15-140Tons for vehicle trucks |
| Washing time | 30-60s/per vehicle |
| Starting mode | Manual/Photoelectric sensor |
| Solids remove | Automatic by mud pumps |
| Gross weight | 3500.00KGS |
Risense Automatic bus and truck wash machine have a proven, time-tested track record in providing solutions for:
1. Bus wash center
2. Bus service and repair center
3. Freight logistics center
4. Logistics company
5. Sea port and terminal
6. Gas filling station
7. The bus parking lot
8. The construction industry
9. Industrial wash down
FAQ
Which service will you offer?
1. Beside to manufacture touch-free car wash, rollover car wash, tunnel car wash, bus and truck wash, wheel wash system with our own brand. We also offer ODM and OEM from all customers' requirements.
Who will install my car wash?
2. We offer you the construction design drawings for your car wash bay, then we will send our engineer to your side to install and operation training.
How long will the machine quality guarantee?
1. We have made the car wash machine running-in times before leave factory, and the failure rate is approaching zero, for the pumps, motors and electronic control panel systems all form Japan.
2. The whole car wash machine guaranteed one year, and parts of components guaranteed 2-3 years. The wearing parts will offer you additional, such as wheels, chains and nozzles.
3. The working life of the car wash can up to 15-20years.
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
