Auto Lift 9, 000 Lb. Capacity Automotive Scissor Lift (PX09)

Name: Auto Lift 9, 000 Lb. Capacity Automotive Scissor Lift (PX09)
Brand: ibuyautoparts.com
SKU: 688951951
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

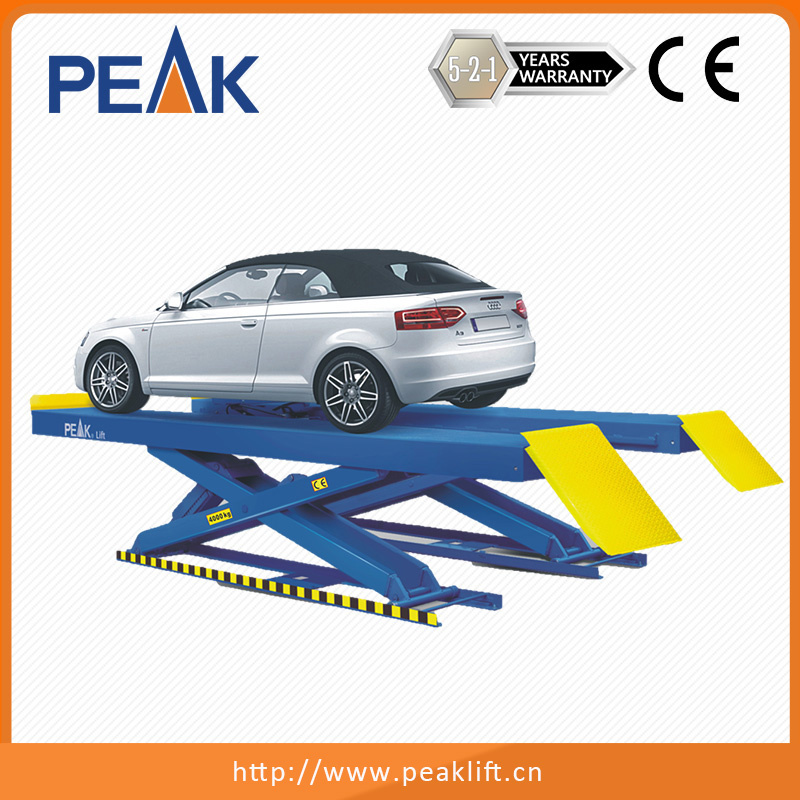

Auto Lift 9,000 lb.Capacity automotive scissor lift (PX09)

Feature
• 9,000 Lbs Capacity
• Dual synchronous cylinders are applied to assure the lifting level on both platforms.
• Electro-air control system, mechanical safety locks.
• Non-skid diamond platform to avoid skidding.
• Integrated rear slip-plates.
• Heavy duty design,the X serial scissors lifts use 150 x75mm tube to make it strong and assure the runways remain level during working.
• Optional Jack .
• Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

PX09 High Safety Dual Synchronous Cylinders Scissors Car Hoists

Model		PX09
Style		Scissors Lift
Lifting Capacity		4.0T (9,000lbs)
Lifting Time		55 Seconds
A	Lifting Height	1870mm (73 5/8")
	Minimum Height	245mm(9 5/8")
B	Runway Length	4417mm(173 7/8")
C	Overall Width	2190mm(86 1/4")
D	Runway Width	625mm(24 5/8")
E	Overall Length(With Ramps)	5894mm(232")
Gross Weight		1797kg(3,961lbs)
Motor		4.0HP
Packing Dimension		4853 X 762 X 1010 mm
QTY of Container		6 Units/20'GP
		12 Units/40'GP

EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!

Prod Model:	PX09
Lifting Time:	55 Seconds
Lifting Height:	1870mm (73 5/8")
Motor:	4.0HP
Gross Weight:	1797kg(3,961lbs)
Surface Treatment:	Spray-Paint
Color:	Blue
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	4T
Certification:	CE
Design:	Scissor
Brand:	Peak

PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.

At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.

PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.

Each PEAK lift is designed for customers who seek the world-class products!
