PEAK CORPORATION >> High Quality Auto Scissors Jack Lift with Ce Approval (SX07)
High Quality Auto Scissors Jack Lift with Ce Approval (SX07)
Price: |
Negotiable/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

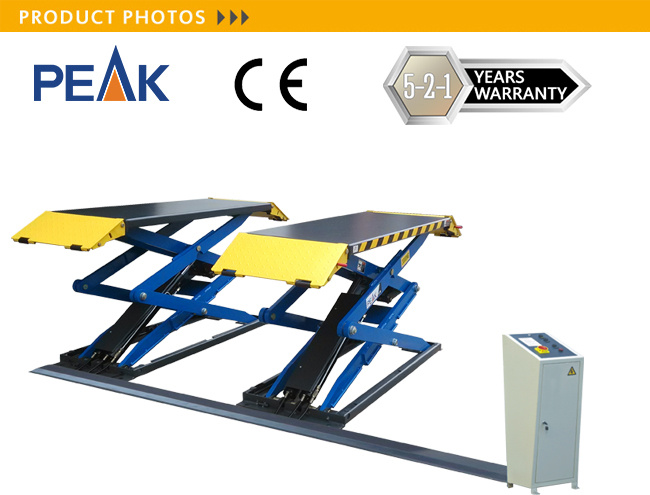

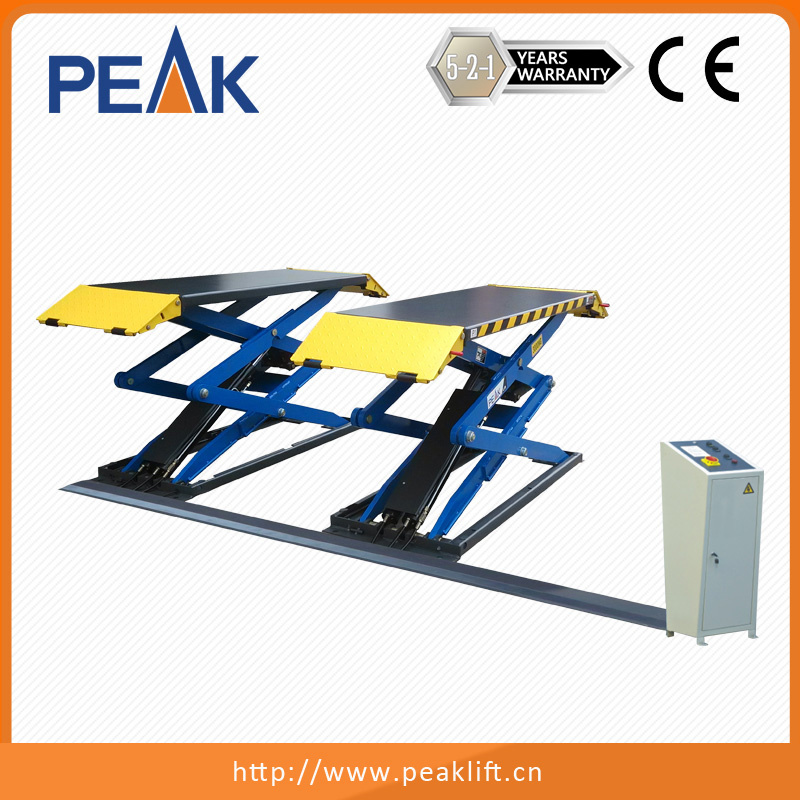

High Quality Auto Scissors Jack Lift with Ce Approval (SX07)Feature• 7,000 Lbs Capacity
• 2 Dual synchronous cylinders are applied to assure the lifting level on both platforms.
• Automatic safety device controlled electrically. No air needed.
• Hydraulic safety locks system instead of the mechanical safety lock.
• Hydraylic equalization for easy access between ramps.
• Electrical control system operated by Up or Down button.
• Low profile design. The closed height is only 115mm.
• Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).High Quality Repair Shop Auto Scissors Lift Jack with Ce Approval (SX07)Model | SX07 |
Style | Scissors Lift |
Lifting Capacity | 3.0T (7,000lbs) |
Lifting Time | 40 Seconds |

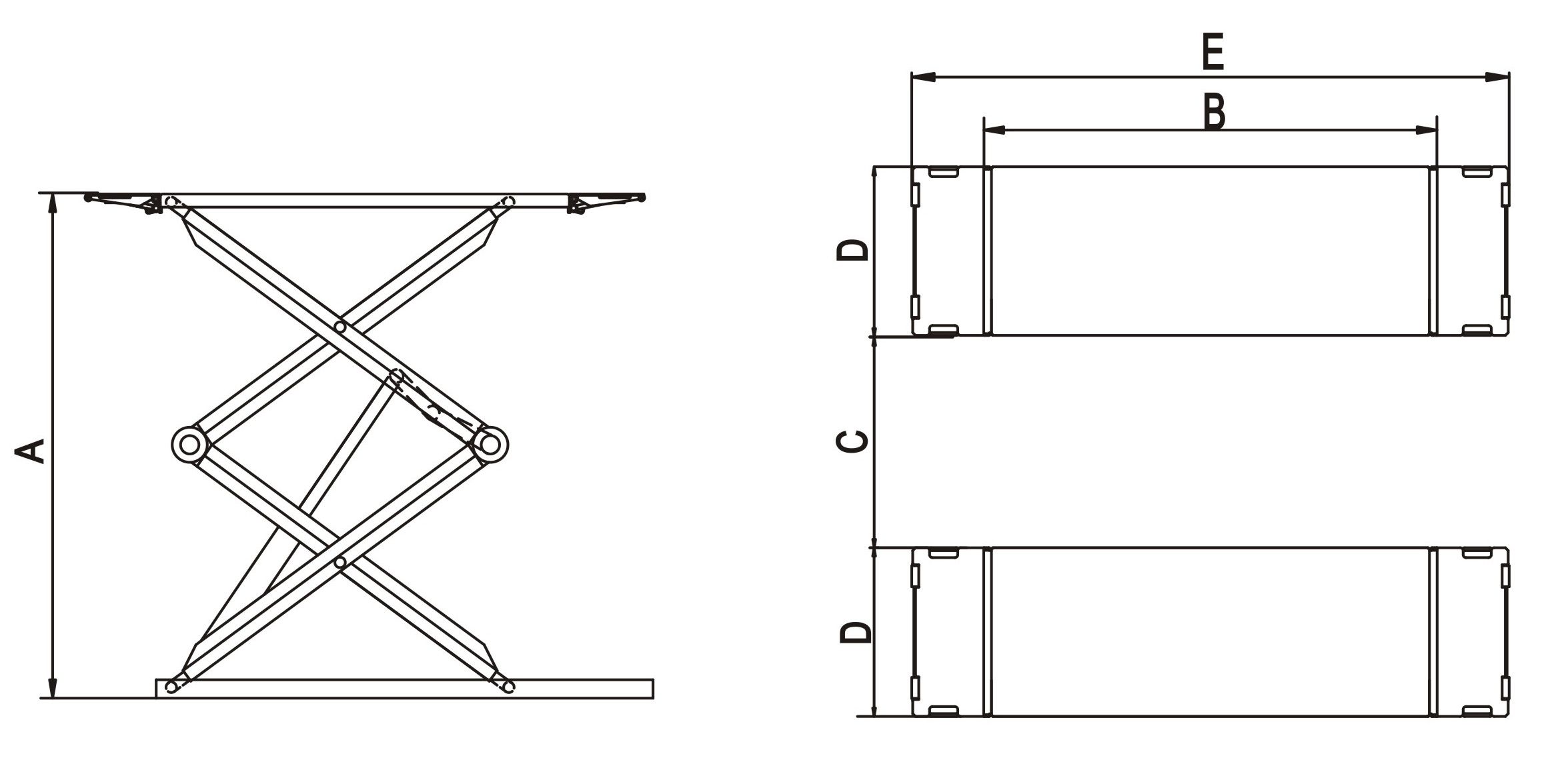

A | Lifting Height | 2000mm (78 3/4") |
Minimum Height | 115mm(4 1/2") |
B | Runway Length | 1458mm(57 3/8") |
C | Width Between Runways | 750mm(29 1/2") |
D | Runway Width | 600mm(23 5/8") |
E | Overall Length(With Ramps) | 2025mm(79 3/4") |
Gross Weight | 874kg(1,927lbs) |
Motor | 2.0/3.0HP |
Packing Dimension | 1704 X 704 X 520 mm |
QTY of Container | 24 Units/20'GP |
48 Units/40'GP |
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
Prod Model: |
SX07 |
Lifting Time: |
40 Seconds |
Lifting Height: |
2000mm (78 3/4") |
Motor: |
2.0/3.0HP |
Gross Weight: |
874kg(1,927lbs) |
Surface Treatment: |
Spray-Paint |
Color: |
Blue |
Type: |
Double Cylinder Hydraulic Lift |
Lifting Capacity: |
3T |
Certification: |
CE |
Design: |
Scissor |
Brand: |
Peak |
PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

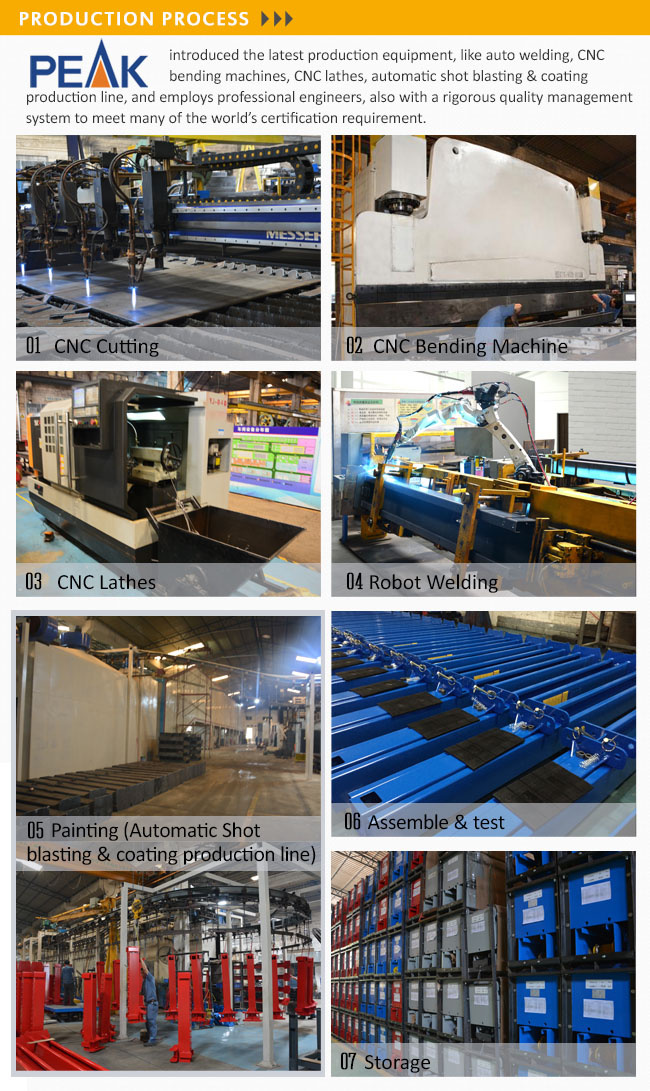

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.
At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.
PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.
Each PEAK lift is designed for customers who seek the world-class products!
