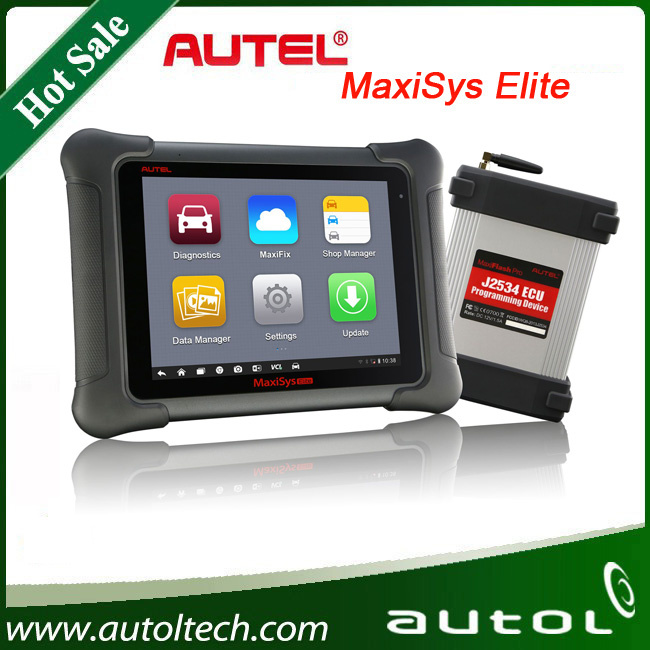

MaxiSys Elite
The MaxiSys Elite, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android operating system. Powered by NVIDIA's Tegra 4, the world's fastest mobile processor, its visually stunning 9.7" Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications.
The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.
MaxiSys Elite Features:
1.The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models.
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming.
3.Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface.
4.Automatic system and software updates with real-time push message notifications via internet.
5.Instant remote control tech support anytime, anywhere.
6.Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors.
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing.
9. Hardware running speed is twice than Autel Maxisys Pro MS908P .
MaxiSys Elite Specifications:
Operating System Android 4.4.4 KitKat
Processor NVIDIA Tegra 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex - A15 CPU
Memory 2GB RAM & 32GB Embedded Memory
Display 9.7" Retina display with 2048X1536 resolution & Capacitive touch screen
Connectivity 802.11a/b/g/n/ac WIFI
Version 2.1 3Mbs Bluetooth
RJ45 Ethernet Connection
3.0 USB (2.0 Compatible)
HDMI 1.4a
SD Card (Support up to 32GB)
Camera Rear: 8.0 Megapixel, Autofocus with Flashlight
Front: 2.0 Megapixel
Sensors Ambient Light Sensor, G-sensor
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 3.7V/13600mAH Lithium-polymer battery
DC/12V/3A Power Supply
Input Voltage DC/12V/3A
Power Consumption Max 20W
Operating Temperature -10 to +55°C
Storage Temperature -20 to +70°C
Dimensions (W x H x D) 309 X 225 X 35 (mm)
Weight 1.59 kg
Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, for GM UART, UART Echo Byte Protocol, for Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V
Comparison between Autel Diagnostic System:
Maxysis Elite Vehicle List:
FOR AUDI, For BENZ, For BMW, For DACIA, For EU FORD, For AU Ford, For Ford, For Holden, For LANDROVER, For MINI, For OPEL, For PEUGEOT, For RENAULT, For SEAT, For SKODA, For VW, For VOLVO, For SMART, For JAGUAR, For BENZ SPRINTER, For SAAB, For FIAT, For ABARTH, For LACIA, For ALFA ROMEO, For VAUXHALL, For MAYBACH, For BENTLEY, For BUGATTI, For PORSCHE, FOR USAGM, For CHRYSLER, For FORD,SUZUKI, For KIA, For DAWEOO, For ISUZU, For TOYOTA, For SUBARU, For SCION, For NISSAN,For MITSUBISHI, For LEXUS, For INFINITI, For HYUNDAI, For HONDA, For ACCURA, For MAZDA.
Package Including:
1pc x Maxisys Elite Interface
Accessories as follows:
1pc x Lighter Fuse
1pc x GM/Daewoo-12 adaptor
1pc x PSA-2 adaptor
1pc xFiat-3 adaptor
1pc x BMW-20 adaptor
1pc x Benz-38 adaptor
1pc x Kia-20 adaptor
1pc x Mitsubishi/Hyundai-12+16 adaptor
1pc x Nissan-14 adaptor
1pc x Honda-3 adaptor
1pc x USB Cable
1pc x Cigarette Lighter
1pc x Compact Disc (CD)
1pc x AC/DC External Power Adapter
1pc x Clipper Cable
1pc x Screwdriver
1pc x VW/AUDI-2+2 adaptor
1pc x Adaptor for Chrysler-16 (for USA only) / 1pc x Adaptor for Benz-14 (for EU only)
1pc x Mini USB Cable
1pc x Ethernet Serial Cable
