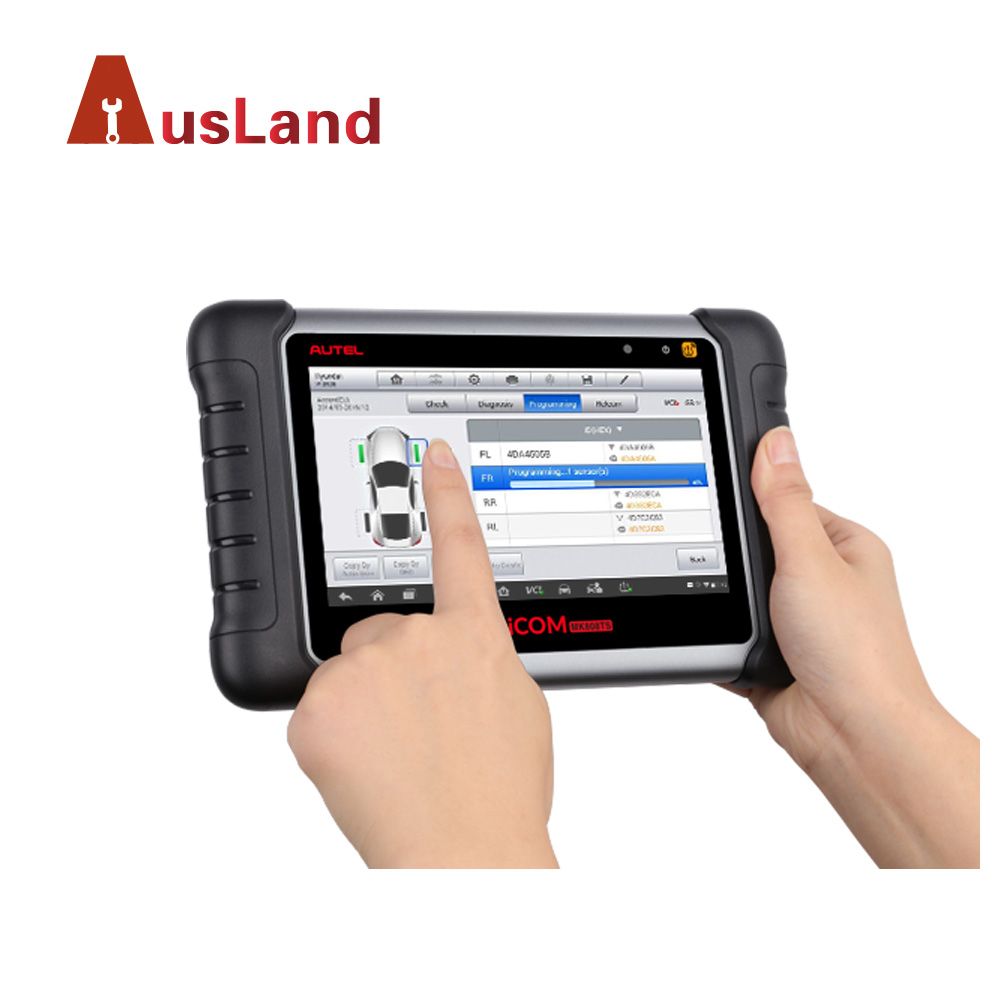

2017 New Released Autel MaxiCom MK808TS Tire Sensor TPMS Scan Tool With Bluetooth And Wifi Auto Diagnostic Tool MK808TS Update Online
Autel MaxiCOM MK808TS TPMS Reset Activation Programming Tool & All System OBD Diagnostic Tool with Oil Reset/EPB/SAS/BMS/DPF and Immobilizer Service Tool with Wireless Bluetooth
- Advanced Tire Sensor TPMS Scan Tool diagnostics for complete TPMS health check. Activate 98% of all known TPMS sensors.
- Program AUTEL MX-Sensor. Comprehensive OBD relearn coverage. On-screen relearn procedure.
- Read/clear codes for all available systems. Display live data in text, graph & analog for easy data review. Auto VIN technology can automatically identify the vehicle's make, model and year information in no time.
- Reset Steering Angle Sensor (SAS) and service mileage and service intervals, Relearn parking brake pad after replacement.
- Support forced DPF regeneration and adjusting injectors, Support battery registration and reset.
More information
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, Autel MaxiCOM MK808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) and IMMO. In addition to OBD II diagnostics and special service, MK808TS enables you to carry out complete TPMS functions, including TPMS health check, sensor activation & programming and Tire Sensor TPMS Scan Tool relearn.
Functions:

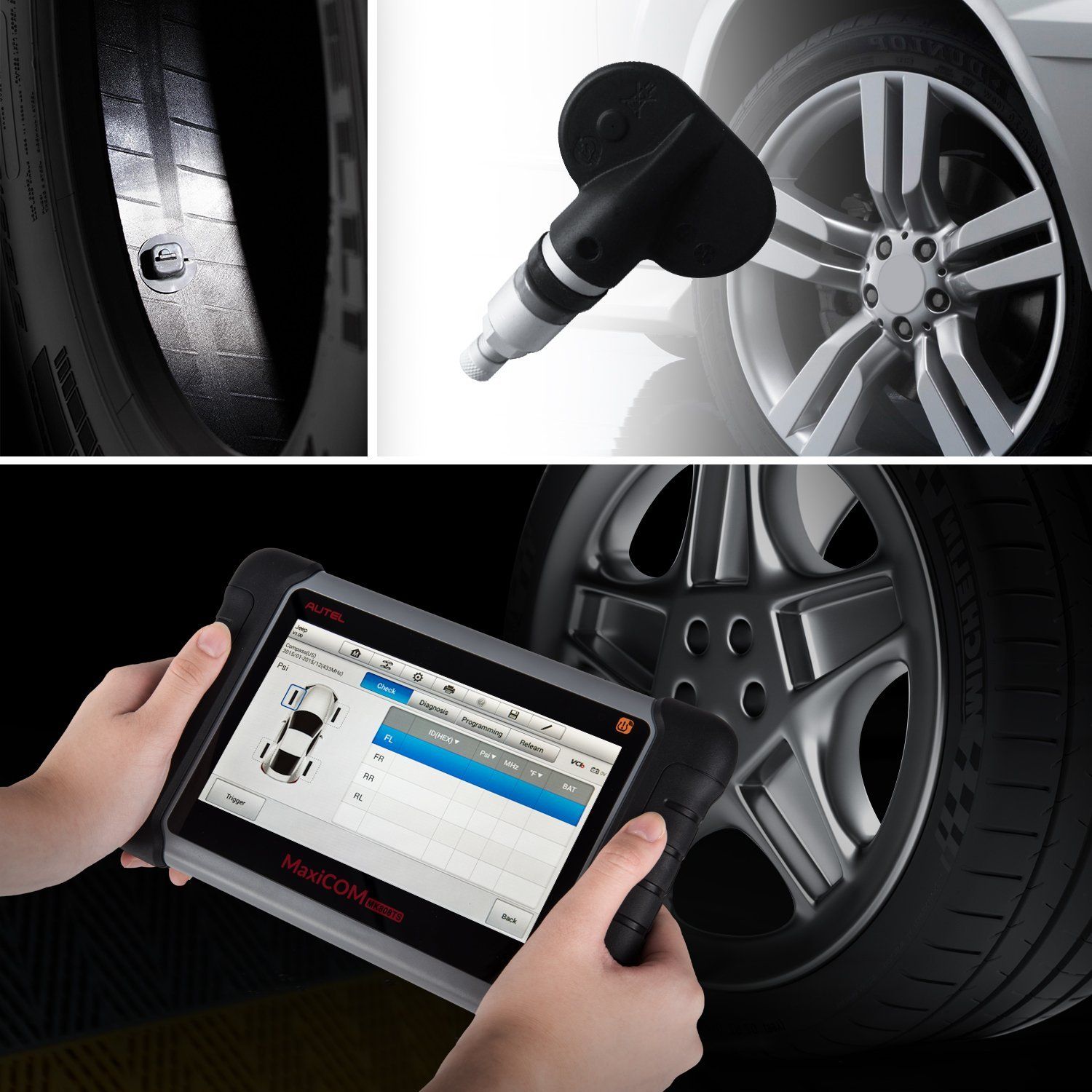

- Complete Tire Sensor TPMS Scan Tool functions
Advanced TPMS diagnostics for complete TPMS health check
Activate 98% of all known TPMS sensors
Program AUTEL MX-Sensors
Comprehensive OBD relearn coverage
Onscreen relearn procedure
- Basic Diagnostic functions for all systems
Read/clear codes for all available systems.
Display live data in text, graph & analog for easy data review
ECU informationRead/erase codes
View live data
View freeze data
View I/M readiness status
View vehicle information
O2 monitor test
ON-board monitor test
Component test
Modules present
DTCs helpOil service reset
Parking brake pad after replacement
Steering Angle Sensor (SAS)
Battery registration and reset
Diesel particulate filter regeneration
IMMO functions- Display live data in text, graph & analog for easy data review.
- Auto VIN technology can automatically identify the vehicle's make, model and year information in no time.

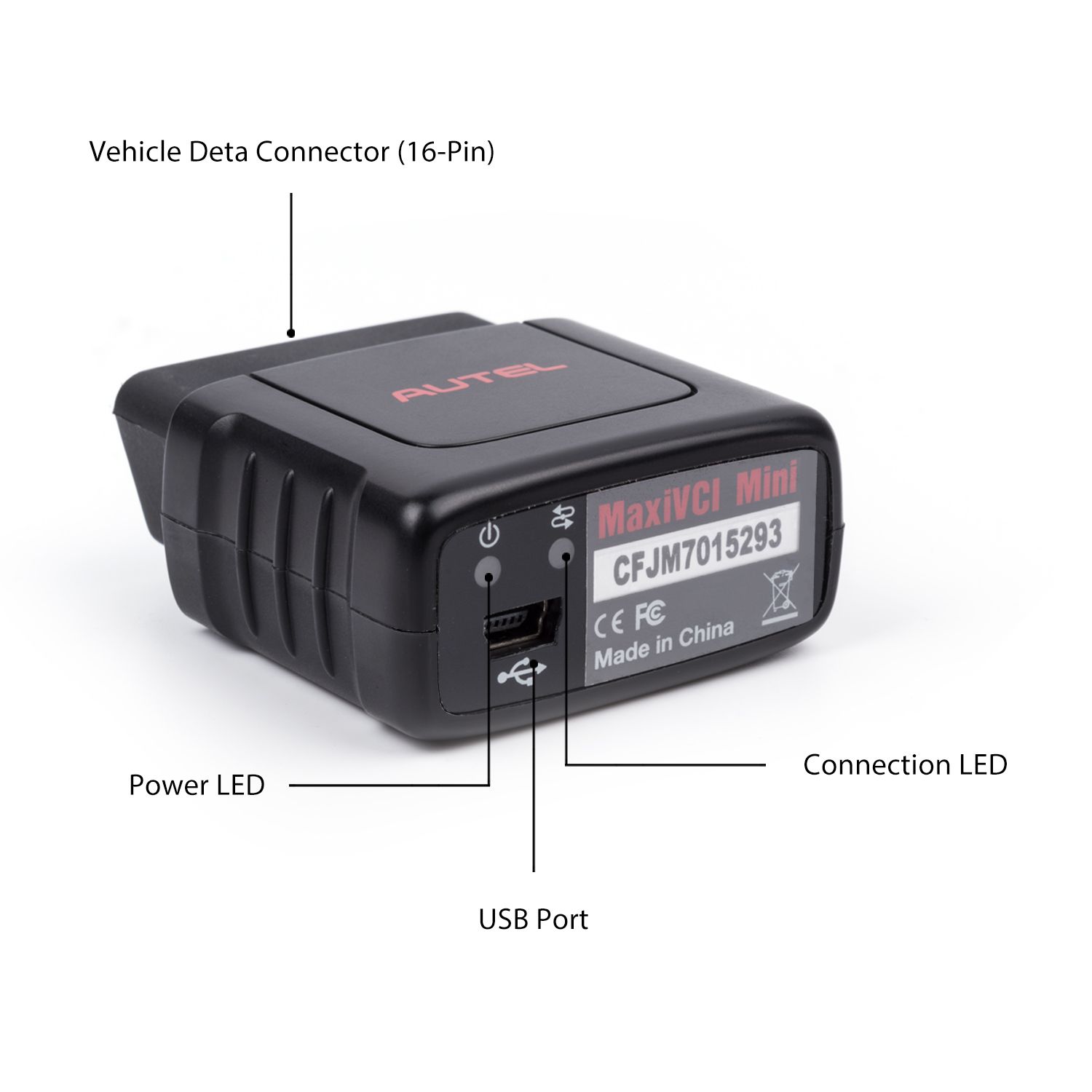

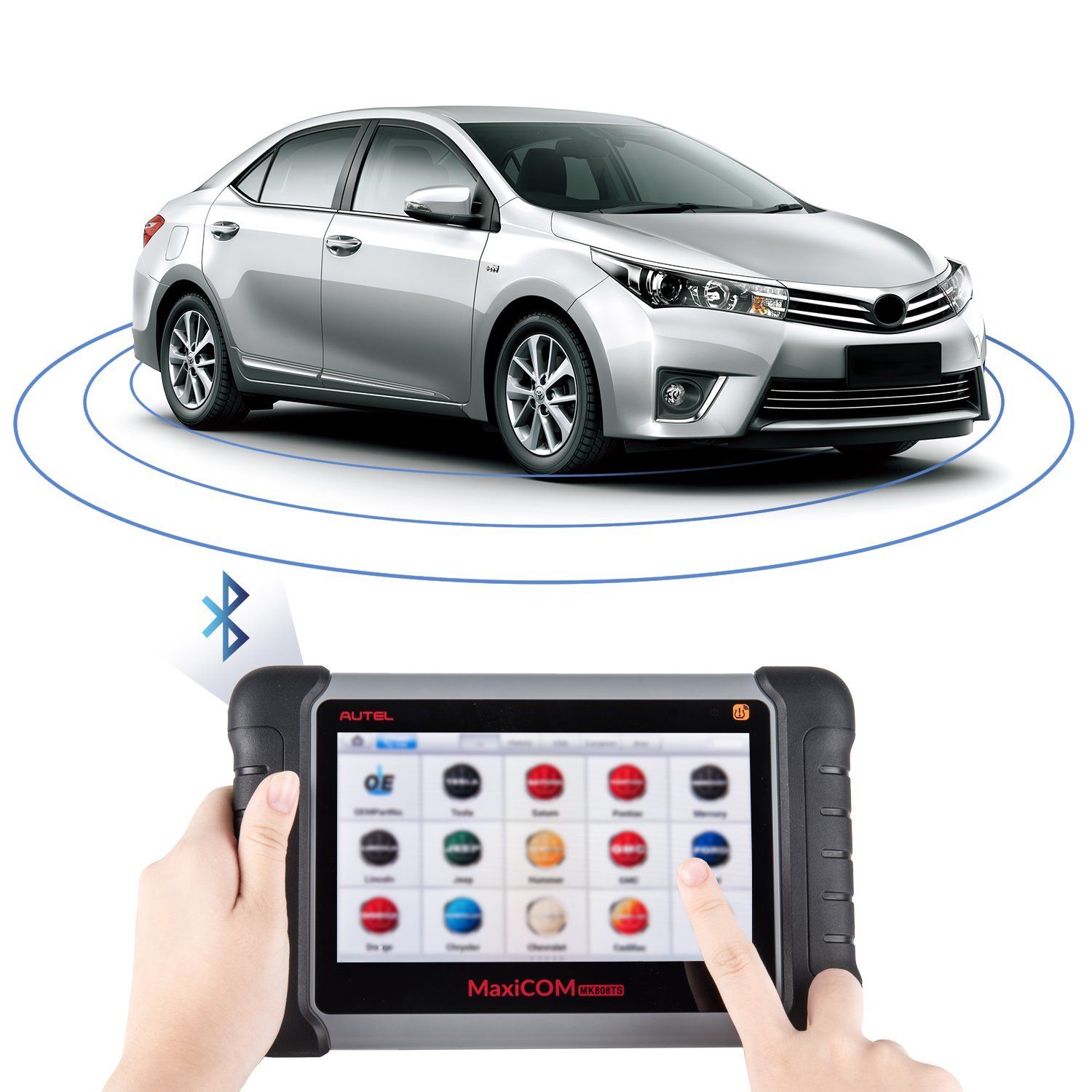

- MaxiVCI Mini for wireless connetion.
- Internet updatable via Wi-Fi
- Print data via Windows-based PC or Wi-Fi printer
Specifications- Recommended Use Indoor
- Operating System AndroidTM 4.4.2, KitKat
- Processor Cortex-A9 processor (1.5 GHz)
- Memory 32GB
- Display 7-inch LCD capacitive touchscreen with 1024 x 600 resolution
- Connectivity Mini USB 2.0 USB 2.0 Wi-Fi HDMI Type A Micro SD card
(supports up to 32GB)- Sensors Light sensor for brightness auto changing
- Audio input/output Input: N/A
Output: buzzer- Power and Battery 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply- Tested Battery Life Around 7 hours of continuous use
- Battery Charging Input 5 V/1.5 A
- Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
- Operating Temp. 0 to 55°C(32 to 131°F)
- Storage Temp. -20 to 60°C (-4 to 140°F)
- Operating Humidity 5% - 95% non-condensing
- Dimensions (W x H x D) 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4")
- Net Weight885 g (2.31 lb.)
- Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

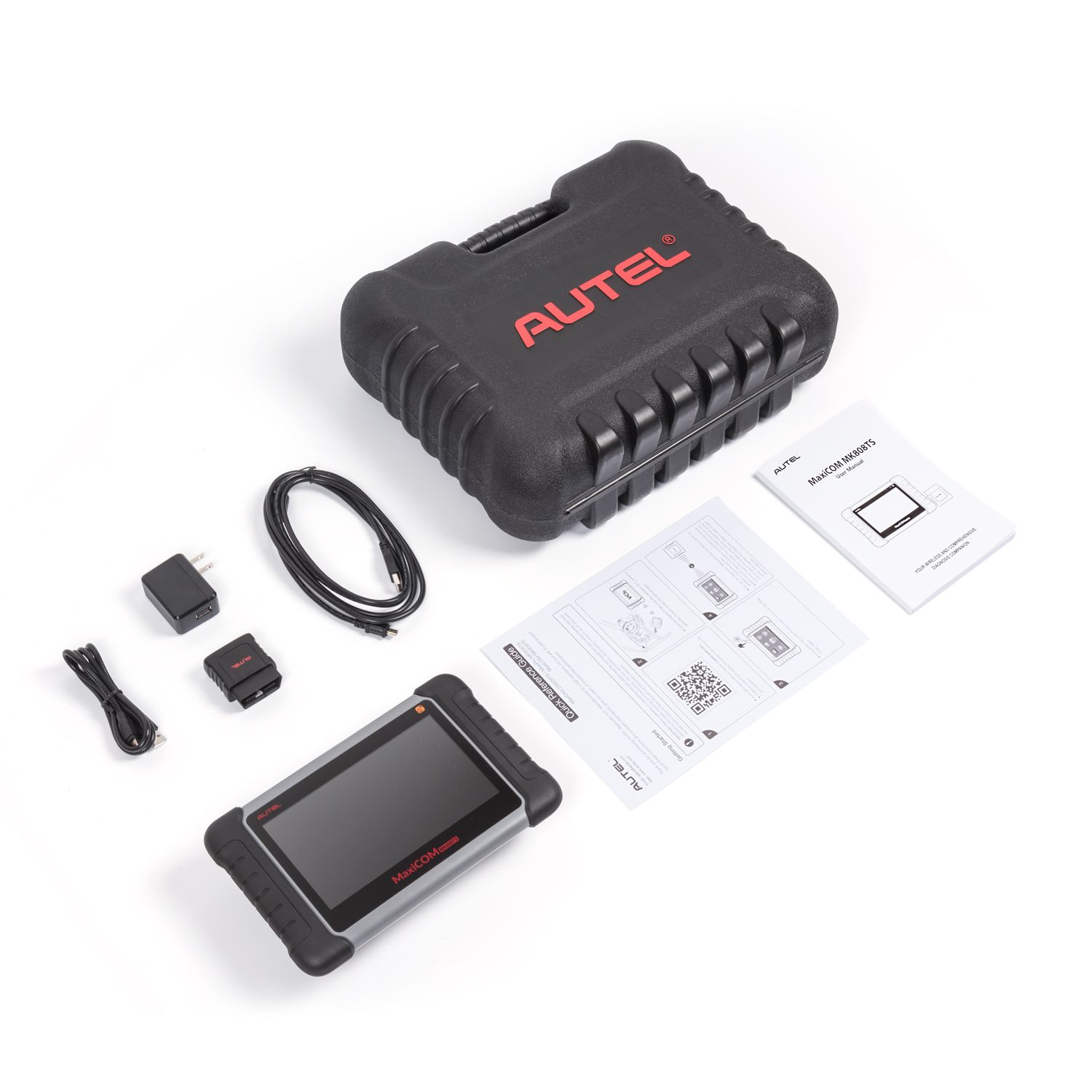

Autel MaxiCOM MK808TS Packing List:- 1 pc *Autel MK808TS
- 1 pc *MaxiVCI Mini
- 1 pc *USB Cable (for test)
- 1 pc *USB Cable (for charging)
- 1 pc *USB External Power Adapter
- 1 pc *User Manual
- 1 pc *Quick Reference Guide

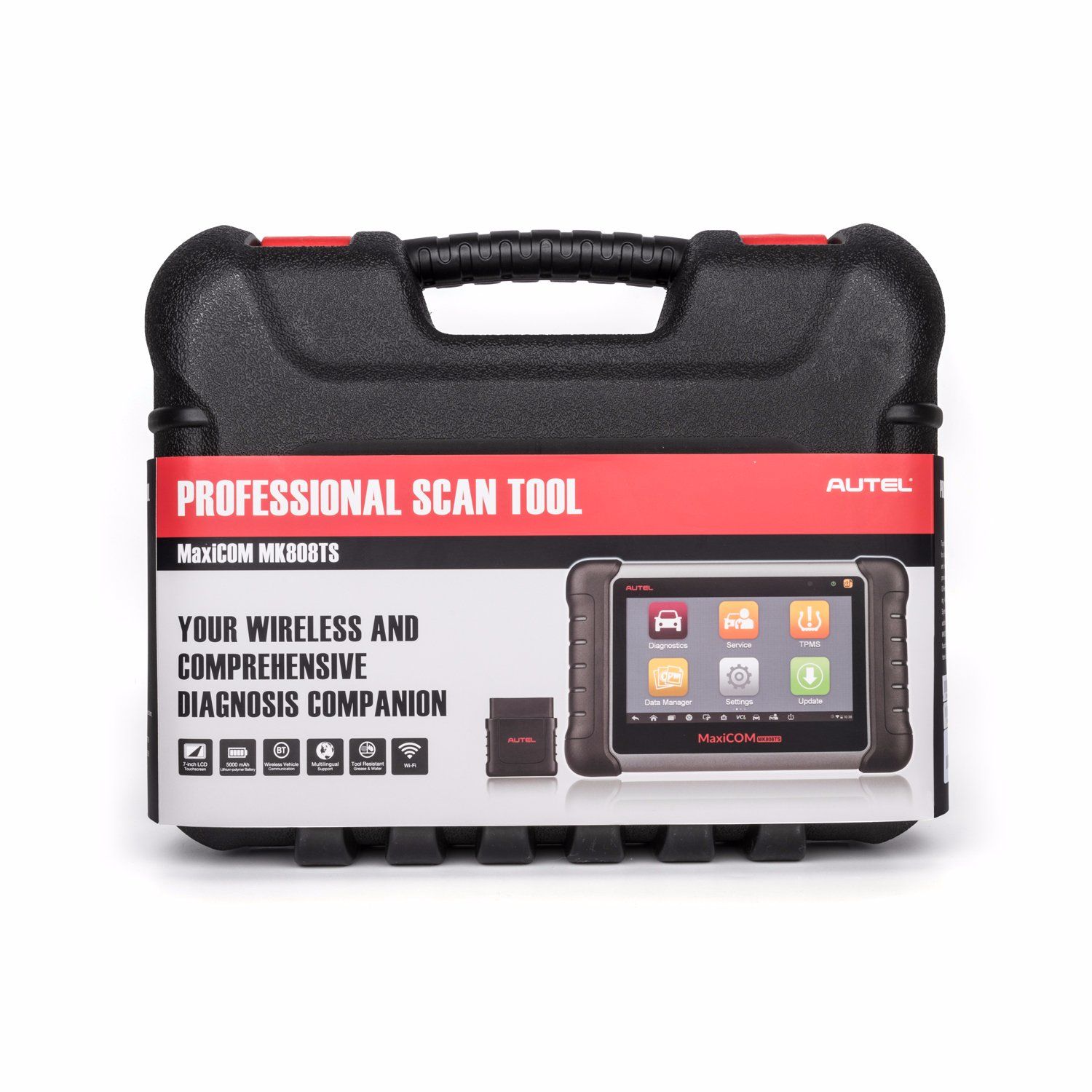

- 1 pc *Carry case
