Autel MaxiCOM MK808TS TPMS Diagnostic Tool Update Online Tyre Pressure Monitor Sensor Tyre Sensor Function MK 808TS
Quick Detail of Autel MaxiCOM MK808TS:
Autel MaxiCOM MK 808TS Tyre Pressure Monitor Sensor Function: Basic Dianostic + TPM + Tyre Sensor
100% Original, Autel Authorized Distributor
Update Online with Wifi, Support Multi Languages
Exclusive(Sole) Agent
New Arrival Original Autel MaxiCOM MK808TS Professional TPMS Diagnostic Tool
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCOM MK808TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System) and DPF (Diesel Particulate Filter). In addition to OBD II diagnostics and special functions, MK808TS can perform comprehensive TPMS services with ease.
There are two main components of the MK808TS system:
MK808TS Display Tablet - the central processor and monitor for the system.
MaxiVCI Mini (Vehicle Communication Interface) - the device for accessing vehicle data.
Autel MaxiCOM MK 808TS Display Tablet
MK808TS Tablet Main Unit Functional Description
1. 7.0" LCD Capacitive Touch screen
2. Ambient Light Sensor - detects ambient brightness.
3. Power LED - indicates battery level & charging or system status.
4. TPMS Service Symbol - indicates the position of the embedded TPMS antenna.

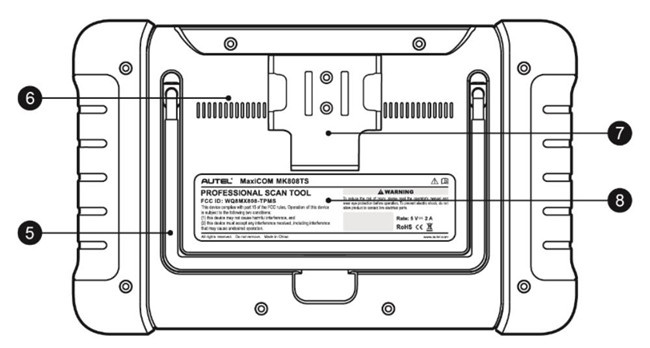

5. Collapsible Stand - extends from the back to allow hands-free viewing of the Display Tablet.
6. Heat Sink
7. MaxiVCI Mini Holder
8. Built-in Battery

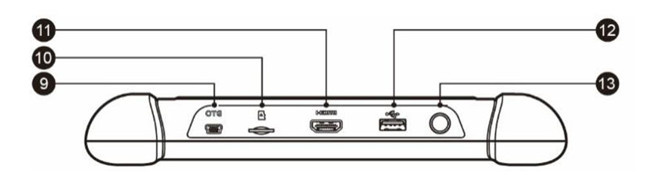

9. Mini USB OTG Port
10. Micro SD Card Slot - holds the micro SD card.
11. HDMI (High-Definition Multimedia Interface) Port
12. USB Port
13. Lock/Power Button - turns the device on & off with long press, or locks the screen with short press.
MK 808TS Main Unit Technical Specifications
| Recommended Use | Indoor |
| Operating System | AndroidTM 4.4.2, KitKat |
| Processor | Cortex-A9 processor (1.5 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touchscreen with
1024 x 600 resolution |
| Connectivity | Mini USB 2.0
USB 2.0
Wi-Fi
HDMI Type A
Micro SD card (supports up to 32GB) |
| Sensors | Light sensor for brightness auto changing |
| Audio input/output | Input: N/A
Output: buzzer |
Power and Battery | 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply |
Audio input/output | Input: N/A
Output: buzzer |
Power and Battery | 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply |
Tested Battery Life | Around 7 hours of continuous use |
Battery Charging Input | 5 V/1.5 A |
Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
Operating Temprature | -10 to 60°C(14 to 140°F) |
Storage Temprature | -20 to 70°C (-4 to 158°F) |
Operating Humidity | 5% - 95% non-condensing |
Dimensions (W x H x D) | 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4") |
Net Weight | 885 g (2.31 lb.) |
Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, H-onda Diag-H Protocol, TP2.0, TP1.6 |
Autel MaxiCOM MK808TS VCI - Vehicle Communication Interface
The wireless diagnostic interface MaxiVCI Mini is a small vehicle communication interface (VCI) used to connect to a vehicle's data link connector (DLC) and connect wirelessly with the tablet for vehicle data
transmission.
MK808TS VCI Module Functional Description
1. Vehicle Data Connector (16-Pin) - connects the MaxiVCI Mini to the vehicle's 16-pin DLC directly.
2. Power LED
3. Connection LED
4. USB Port - provides the easiest connection between the device and the tablet via a USB cable.
VCI Technical Specifications:
Communications | · BT V.2.1 + EDR
· USB 2.0 |
Wireless Frequency | 2.4 GHz |
Input Voltage Range | 12 VDC to 24 VDC |
Supply Current | 150 mA @ 12 VDC |
Operating Temperature | 0°C to 50°C (ambient) |
Storage Temperature | -20°C to 70°C (ambient) |
Dimensions (L x W x H) | 47 mm (1.7") x 23 mm (0.9") x 51 mm (2.0") |
Weight | 33.1g (0.07 lb.) |

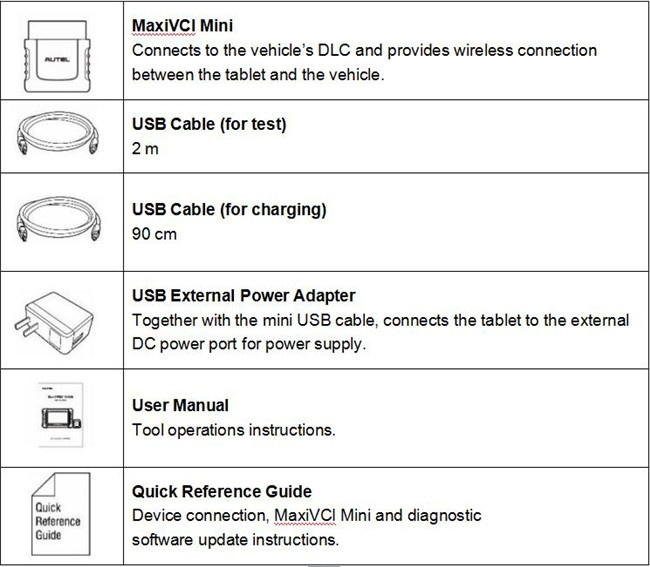

Other Accessories of Autel MaxiCOM MK808TS:
