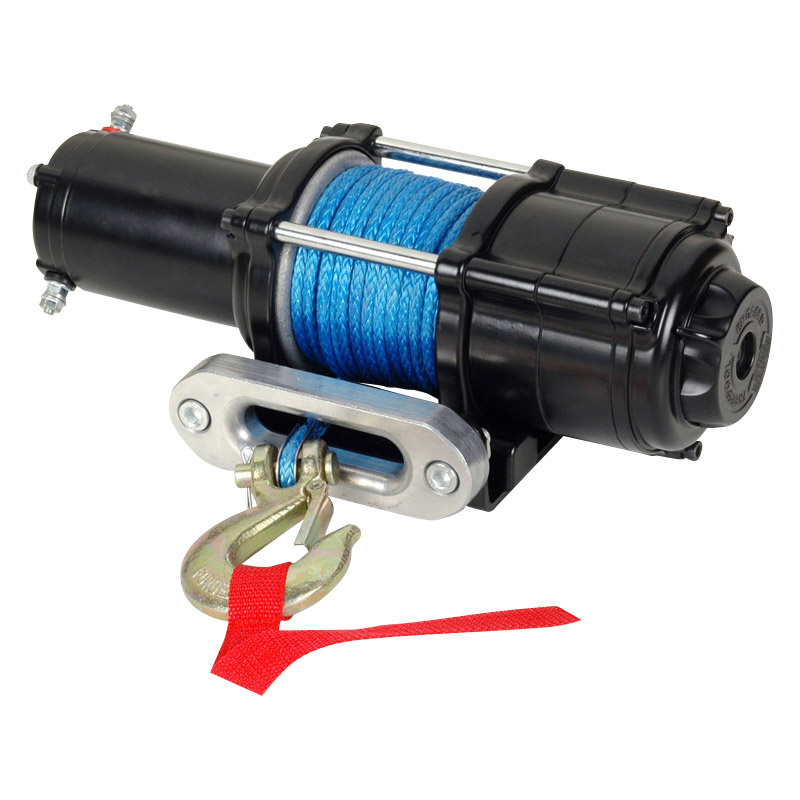

ATV Electric Winch with 5000lb Pulling Capacity (Star Model)

Name: ATV Electric Winch with 5000lb Pulling Capacity (Star Model)
Brand: ibuyautoparts.com
SKU: 717240815
Availability: InStock
Rating: 4.6 (67 reviews)

Price:	US $ 150-155/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Twelve sealed areas protect the winch from water and contaminant infiltration.
1) Rated Line Pull: 5, 000lbs. (2, 268kgs) single-line
2) Motor: 12V DC, 1.95HP (1.45kw) permanent magnet
3) Control: Mini-rock switch and remote control, 10ft. (3.0m) lead
4) Geartrain: All-metal high-strength 3-stage planetary, sealed
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Cam activated
7) Brake: Automatic mechanical brake is available.
8) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm), high-strength
9) Synthetic Rope: 40', 6.3mm diameter (12.25m, 6.3mm diam)
10) Cable management: Aluminum hawse fairlead
11) Recommended Battery: 500 CCA minimum for winch
12) Battery Leads: Color coded wiring
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish: Black or grey

PERFORMANCE DATA
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	26 (7.9)	31	1 / 5000 (2268)
500	20 (6.1)	50	2 / 4402 (1997)
1000	16 (4.9)	86	3 / 3873 (1757)
1500	14 (4.3)	121	4 / 3408 (1546)
2000	11 (3.4)	155
2500	8 (2.4)	204
3000	7 (2.1)	225
3500	6 (1.8)	248
4000	4 (1.2)	288
4500	3(0.9)	318
5000	2(0.6)	330

Prod Model:	MXT5.0
Markets:	North America,Oceania,Mid East,Eastern Asia,Western Europe
Gearbox:	Steel Gearbox
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Swamp
Certification:	CE
Brand:	Great

Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
