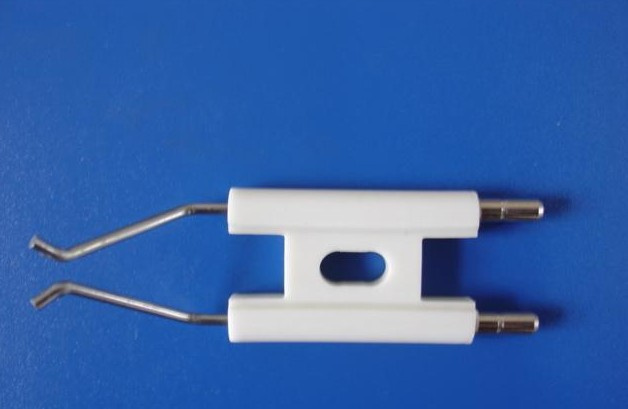

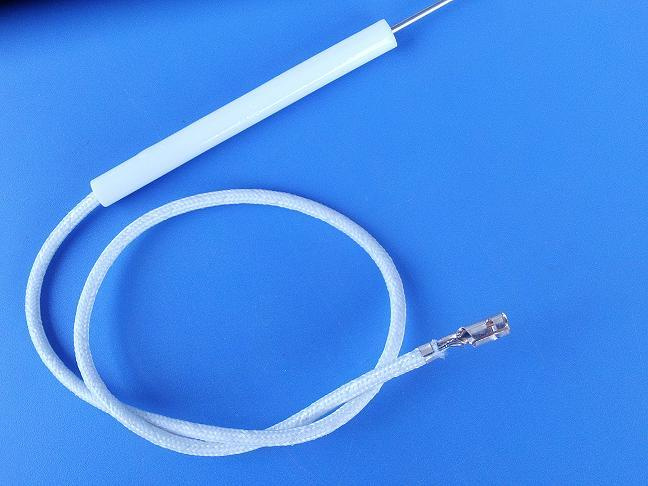

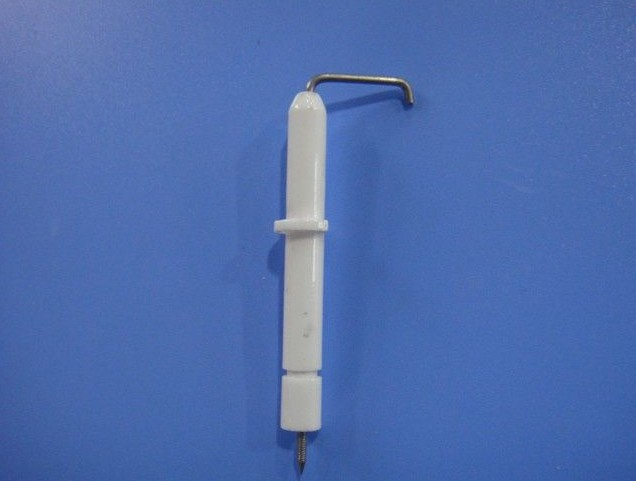

Alumina Ceramic Ignition Electrode
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Ceramic electrode
Ceramic ignition
Series of ignition needle
High quality and competive price
Prompt delivery
Ceramic electrodeceramic electrode, ignition
Series of ignition needle
High quality and competive price
Prompt delivery.
Ceramic Igniter
Material: 95% Al2O3 Color: White
1. Anti-heat, corrosion resistance, anti-high voltage, stable electrical property, and high insulation functions.
2. Output voltage: Min. 16 ~25kv
3. Life time (using life)20, 000 times.
Application:
Gas cooker, Water heater, Gas oven, Gas boiler, Air-conditioning and so on.
|
Properties \ Material |
Unit |
|
|
Equivalent to DIN EN 60672 |
|
C-786 |
|
Main Ingredients\Composition |
SiO 2%
Al2O 3%
MgO % |
-
94>
- |
|
Physical Properties |
|
Colour |
|
Pink / White |
|
Specific Gravity |
|
3.5 |
|
Water Absorption |
% |
0 |
|
Flexural Strength |
KG/CM 2 |
2500 |
|
Compressive Strength |
KG/CM 2 |
12000 |
|
Young' s Modulus |
KG/CM 2 x 10 6 |
2.2 |
|
Hardness |
Moh' s |
9 |
|
Thermal Properties |
Co-efficient of Thermal Expantion
(30-600 degree celsius) |
10 -6 /° K |
6.8 |
|
Thermal Shock Resistance Down Shock T |
° C |
350 |
|
Thermal Conductivity |
W / M° K |
14 - 24 |
|
Max. Temp. Withstanding Capacity |
° C |
1300 |
|
Electrical Properties |
|
Dielectric Strength (20C) |
KV / mm |
15 |
|
Dielectric Contant (20C: : 1MHz) |
|
9 |
|
Volume Resistivity (20C) |
Ohm-cm |
10 12 |
|
Application |
|
Ceramic gas ignition/ Pump Seal Faces / Flexible Band Heaters / Thread Guides. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alumina Ceramic Ignitor: |
According to Customer's Size |
| Certification: |
ISO9001: 2000 |
| Component: |
Ignition Lock Cylinder |
Lianyungang Zhong Ao Aluminium Co. Ltd (AIZA)
Our Products:
Alumina Ceramic Ball
Alumina Ceramic Lining
Alumina Ceramic Cylinder
Alumina Wear Tile
Alumina Ceramic Beads
Alumina Ceramic Nozzle
Alumina Ceramic Ring
Insulation Ceramic
Customized Heterotypic Technical Ceramics
AIZA is a Lianyungang based Sino-Foreign joint venture corporation. It is a Chinese producer of calcined alumina and a manufacturer of alumina ceramics, such as alumina ceramic ball, alumina ceramic cylinder, alumina wear tile, ceramic insulator, ceramic element, ceramic beads, and other insulation ceramics with self-prepared material as well as German and Japanese material.
Since its creation, AIZA has served most of Chinese customers, Nanjing Huade, Zhuzhou Xianghuoju, and Chaozhou Sanhuan, which are eminent manufacturer of spark plug and advanced ceramic in China. Its "TCH" brand calcined alumina is well accepted by our customers.
In 2008, AIZA purchased 70 key equipment from Shanghai Morgan Matroc after its closure in China. The equipment includes isostatic press machine, dry press machine, hot press cast machine, ball mill, alumina spray prilling tower (centrifugal and pressure), polishing machine, etc. The equipment has been successfully installed in our factory by the end of 2008. Now, AIZA have succeeded in establishing itself as sole Chinese manufacturer of ceramic nozzle by isostatic dry bag pressing process. Besides, the most experienced technical engineer of former Shanghai Morgan Matroc also joined us, which is the precious source of our confidence of ensuring products quality.
TQC Procedures and ISO 9001: 2000- Certification
Our experienced QC will supervise the production and check the quality before delivery. We conduct TQC procedures according to ISO 9001: 2000-certified guidelines. In order to ensure better quality, we carry out five processes below:
1. Material inspection
2. Semi-manufactured goods inspection
3. Itinerary inspection
4. Finished products inspection
5. Shipment inspection.
Material Adopted:
Alumina
Zirconia
Steatite
Alumina-Zirconia
Technologies Adopted:
Dry Pressing
Isostatic Pressing
Heat Press Cast
Flowchart of Customized Service: Drawing Received---Researching and Tooling---Sample Collecting and Testing---Sample Accepted---Order Confirming.
