Ad Series Hydraulic Auto Shock Absorber

Name: Ad Series Hydraulic Auto Shock Absorber
Brand: ibuyautoparts.com
SKU: 775452075
Availability: InStock
Rating: 4.5 (98 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

AD Series Hydraulic Shock Absorber

Specifications

Model	Stroke (mm)	Max.Nm Per Cycle (Et)	Max. Nm Per Hour (Etc)	Max. Effective Mass (Me) kg	Max. Impact Speed (v) m/s	Operating Temperature (°C)	Weight (g)



AD-1410 N	10	20	25000	80	3	-10~+80	84
AD-1410	10	20	25000	80	3	-10~+80	90
AD-2016 N	16	25	30000	200	3.5	-10~+80	222
AD-2016	16	25	30000	200	3.5	-10~+80	230
AD1425-N	25	28	27500	140	3	-10~+80	194
AD1425	25	28	27500	140	3	-10~+80	190
AD-2025 N	25	39	30000	312	3.5	-10~+80	232
AD-2025	25	39	30000	312	3.5	-10~+80	240

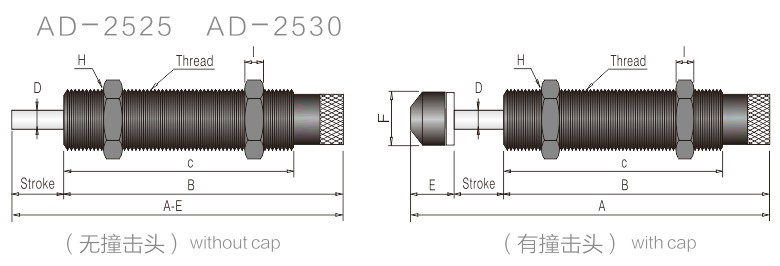

AD-2525 N	25	85	54000	400	3.5	-10~+80	335
AD-2525	25	85	54000	400	3.5	-10~+80	350
AD-2530 N	30	95	60000	480	3.5	-10~+80	340
AD-2530	30	95	60000	480	3.5	-10~+80	365
AD-2540	40	100	80000	700	3.5	-10~+80	455
AD-2550	50	98	90000	720	4	-10~+80	455
AD-2580	80	150	120000	800	4	-10~+80	585
AD-3625	25	150	81000	1400	3	-10~+80	955
AD-3650	50	300	100000	1400	3	-10~+80	1100

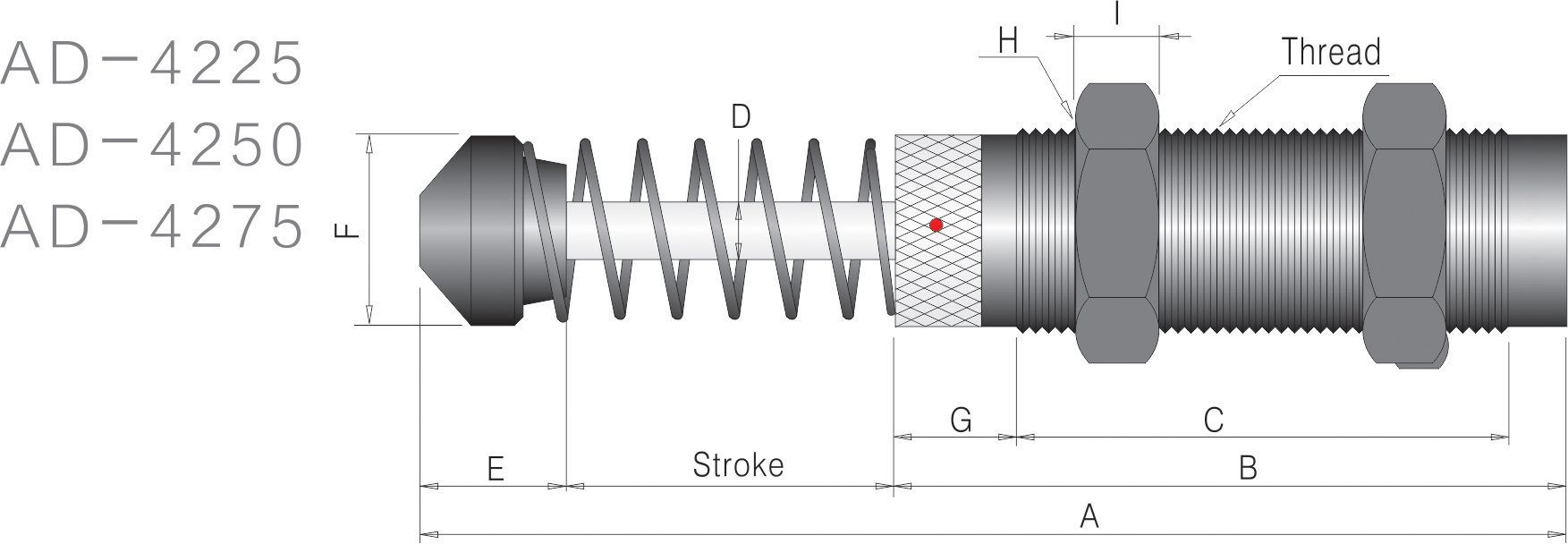

AD-4225	25	260	125000	3000	3.5	-10~+80	1280
AD-4250	50	500	150000	4000	4.5	-10~+80	1490
AD-4275	75	750	180000	6000	4.5	-10~+80	1710

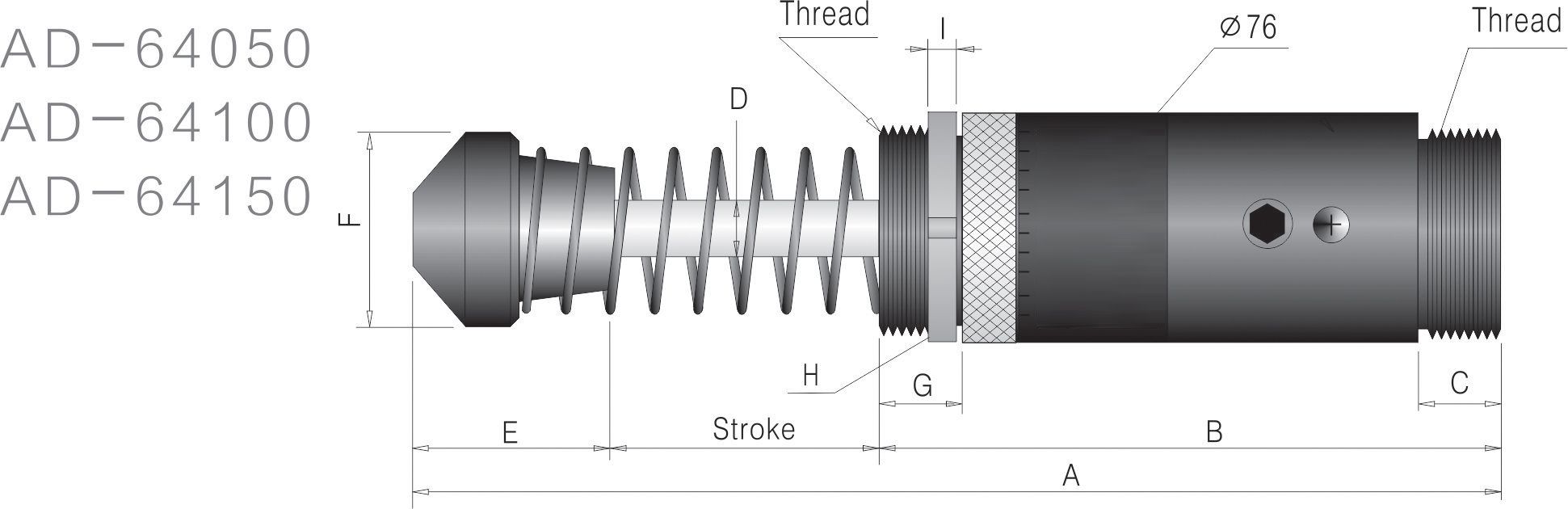

Heavy series
Specifications

Model	Stroke (mm)	Max.Nm Per Cycle (Et)	Max. Nm Per Hour (Etc)	Max. Effective Mass (Me) kg	Max. Impact Speed (v) m/s	Operating Temperature (°C)	Weight (g)



AD-64050	50	1200	150000	12727	1.5	-10~+80	4115
AD-64100	100	2400	200000	18181	1.5	-10~+80	5280
AD-64150	150	3600	250000	23636	1.5	-10~+80	6785

Why choose us?

(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.

Prod Model:	AD Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE / ISO
Color:	Black
Part:	Dampers
Position:	Front
Type:	Hydraulic
Spring Type:	Air Spring
Spring Material:	Steel
Structure:	Double Cylinder
Damping Force Direction:	Single Effect
Brand:	Smartsolu

Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.

SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.

SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "

SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.

SMART PNEUMATIC hopes to work together with you, developing in parallel!
