Acd 20 Series Buffering Types Hydraulic Self-Compensation Shock Absorber

Name: Acd 20 Series Buffering Types Hydraulic Self-Compensation Shock Absorber
Brand: ibuyautoparts.com
SKU: 775613005
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

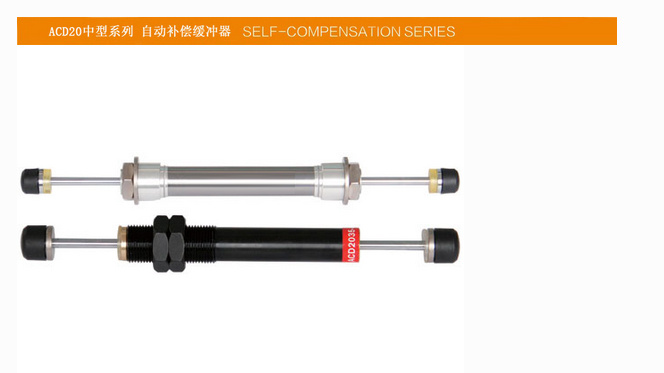

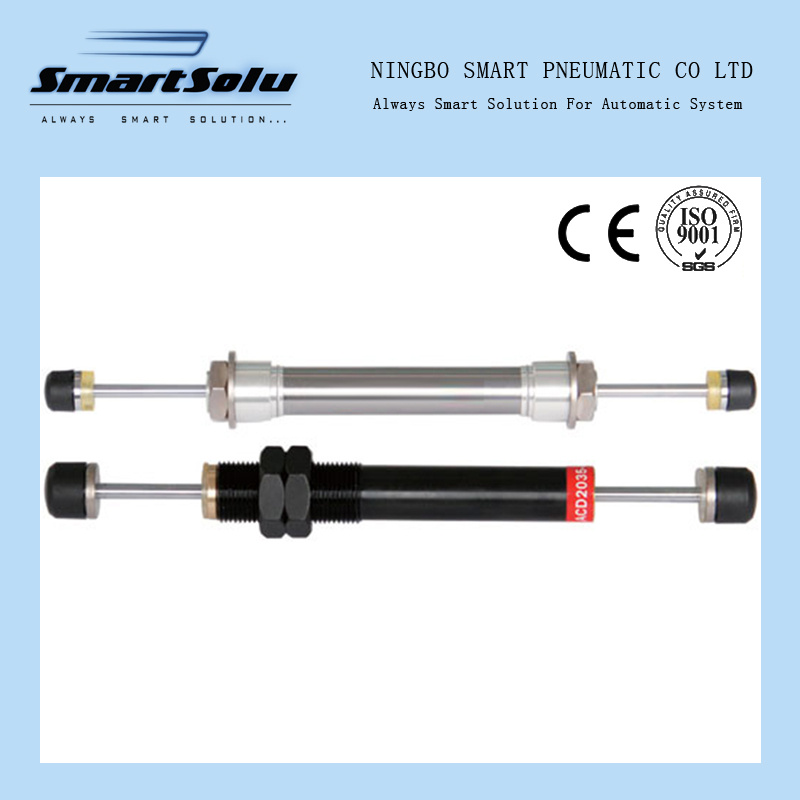

ACD Series bidirectional Buffering Hydraulic Shock Absorber

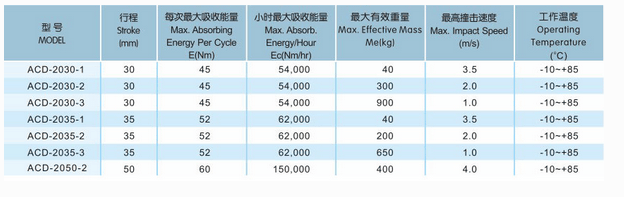

Specifications

Model	Stroke (mm)	Max.Absorbing Energy Per Cycle E(Nm)	Max.Absorbing Energy/Hour Ec(Nm/hr)	Max. Effective Mass Me(kg)	Max. Impact Speed ( m/s)	Operating Temperature (°C)



ACD-2030-1	30	45	54,000	40	3.5	-10~+85
ACD-2030-2	30	45	54,000	300	2.0	-10~+85
ACD-2030-3	30	45	54,000	900	1.0	-10~+85
ACD-2035-1	35	52	62,000	40	3.5	-10~+85
ACD-2035-2	35	52	62,000	200	2.0	-10~+85
ACD-2035-3	35	52	62,000	650	1.0	-10~+85
ACD-2050-2	50	60	150,000	400	4.0	-10~+85

Why choose us?

(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.

Prod Model:	ACD 20 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE / ISO
Color:	Black
Part:	Dampers
Position:	Front
Type:	Hydraulic
Spring Type:	Air Spring
Spring Material:	Steel
Structure:	Double Cylinder
Damping Force Direction:	Single Effect
Brand:	Smartsolu

Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.

SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.

SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "

SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.

SMART PNEUMATIC hopes to work together with you, developing in parallel!
