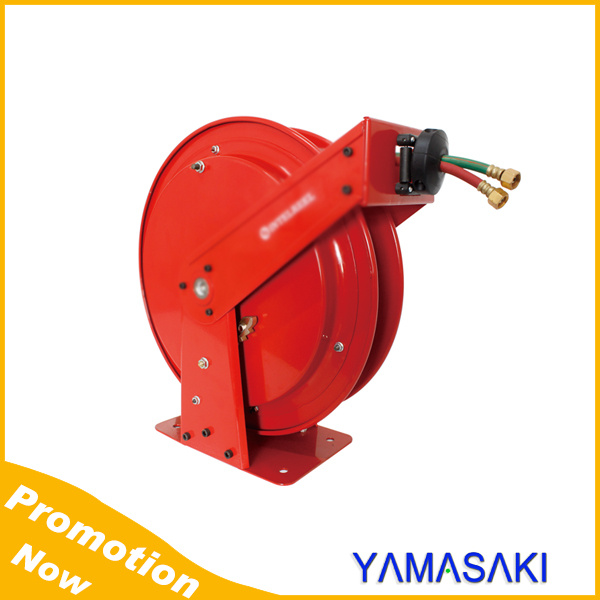

Name: Acetylene Gas Propane Gasnatural Gas and Fuel Gases Reels
Brand: ibuyautoparts.com
SKU: 767828335
Availability: InStock
Rating: 4.3 (115 reviews)

Price:	US $ 220-260/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Series DW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 3/8"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red

Product Description

Series DW are welding reels and are used for a wide variety of gases such as
acetylene gas, propane gas, natural gas and fuel gases. These reels are designed
to improve safety in the work area with an increase in productivity and efficiency.
You can choose spring retractable reels or hand crank reels of welding here.
Fluid path: 1/4", 3/8"
The features of Yamasaki series DW hose reel:

1. Germany Kern-Liebers Spirng
2. NSK Bearing
3. Dual Pedestal
4. Dual inlets on both sides optional
5. 3.0mm thickness cold steel spring case

The Drawing of series DW

Dimensions
	No.	DW300 (mm)	DW400 (mm)	DW600 (mm)	DW410 (mm)
	A	403	495	685	480
	B	372	507	660	526
	C	160	204	273	291
	D	240	230	266	-
	E	80	120	200	-
	F	11	13	13	-

The Specifications:

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Oxygen / acetylene	2(300)	6(1/4)	8(26)	3/8"	M16×1.5	DW300020108	DW300020100
Oxygen / acetylene	2(300)	6(1/4)	15(50)	3/8"	M16×1.5	DW400020115	DW400020100
Oxygen / acetylene	2(300)	10(3/8)	6(20)	3/8"	M16×1.5	DW400020306	DW400020300
Oxygen / acetylene	2(300)	6(1/4)	30(100)	3/8"	M16×1.5	DW600020130	DW600020100
Oxygen / acetylene	2(300)	10(3/8)	20(65)	3/8"	M16×1.5	DW600020320	DW600020300
Oxygen / acetylene	2(300)	6(1/4)	50(164)	3/8"	-	-	DW410020100
Oxygen / acetylene	2(300)	10(3/8)	45(148)	3/8"	-	-	DW410020300
