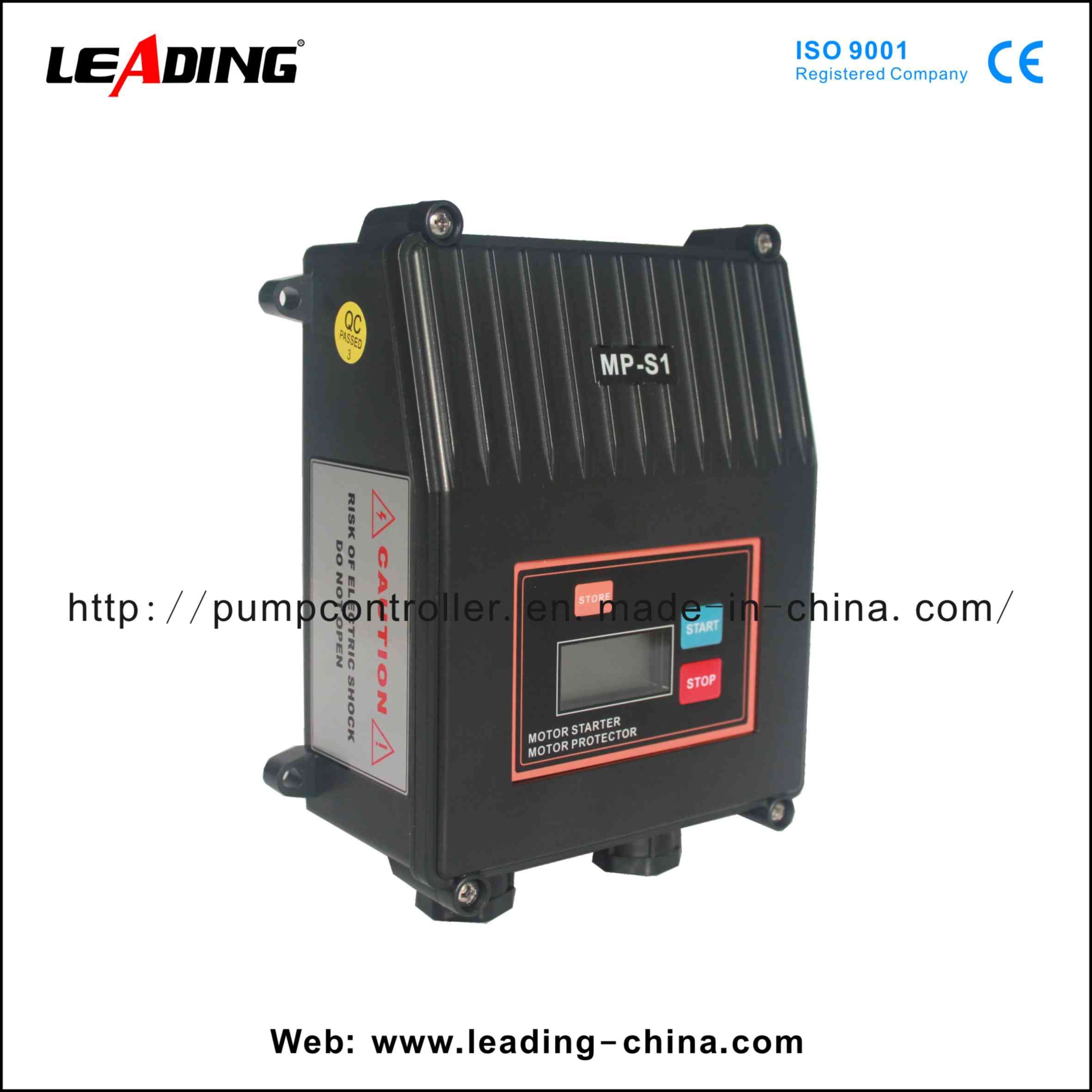

AC Power Supply of Single Phase Motor Starter (MP-S1)

Name: AC Power Supply of Single Phase Motor Starter (MP-S1)
Brand: ibuyautoparts.com
SKU: 709001442
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

1.Product Information
MOTOR STARTER / MOTOR PROTECTOR
MODEL: MP-S1

Model :	MP-S1
Application	Start & protect single phase pump, DOL
Main technical data
. rated input voltage	AC220V-AC24V Single phase 50HZ/ 60HZ
. rated output	0.37kw-2.2kw (0.5hp-3hp)
Product function / features	Over load protection Motor stalled protection Dry run protection with sensor free Under voltage protection Over voltage protection Transient surge protection Memory function when power off & recovery LCD screen displaying pump running status Push button calibration Reserved space for installing pump start capacitor
Main installation data
Working temperature	-25ºC-- +55ºC
Working humidity	20%--90%RH, no drips concreted
Degree of protection	IP54
Install position	Wall mounting
Unit dimension (L x W x H)	152 x 125 x 70 mm

2.Company Information

1)Brief introduction: as the supplier of pump control panel and control accessories, major products including: Intelligent Single / Dual Pump Control Panel, Motor Protector / Starter , Reverse Osmosis Controller, Anti-Clogging Reversal Pump Control Panel
More information, please visit: www.leading-china.com

2)Our location and communication
From Guangzhou to Changsha takes 1hour by air, 2.5hour by high speed train
From Shanghai to Changsha takes 1.5hour by air, 5hour by high speed train
From Beijing to Changsha takes 2.5hour by air
From Hong Kong to Changsha takes 2hour by air

Prod Model:	MP-S1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Package:	Paper Carton
Protection Grade:	IP54
Start Type:	Dol
Motor Starter Size:	152 X125 X70mm

Hunan Leading Science & Technology Development Co., Ltd is the professional manufacturer of intelligent pump control system applied for monitoring and protecting of pumps in home and industry use;

Leading Science & Technology has always been a leader in the production, research & development of intelligent pump control system and relative pump control products. Million of our prime products have been sold on the market for stable quality and reasonable price.

Leading Science & Technology has established stable relations with many pump producers and distributors from China and overseas.

Till now, Leading Science & Technology we have passed CE, ISO9001: 2008 certificate.
