95% Alumina Ceramic Ignition Electrode Rod for Burner

Name: 95% Alumina Ceramic Ignition Electrode Rod for Burner
Brand: ibuyautoparts.com
SKU: 776264875
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	US $ 0.05-0.08/Piece
Trade Terms:	FOB,CFR,CIP
Min Order:	30000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

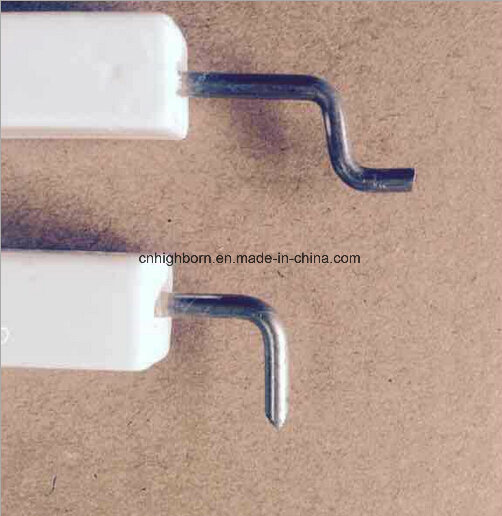

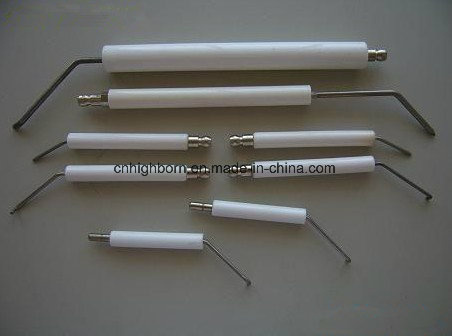

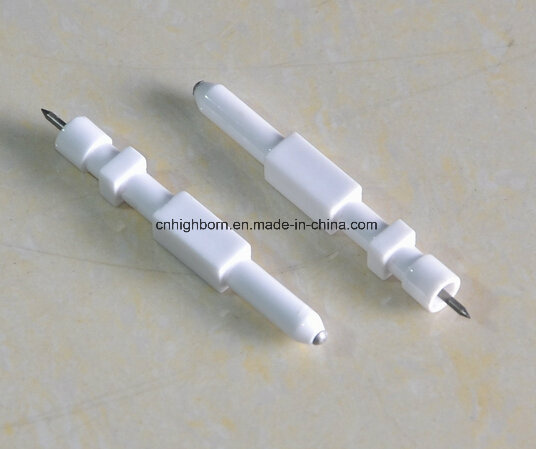

alumina ceramic ignition needle ,Ceramic Ignition Electrode Rod For Burner ,95 Al2O3 Ceramic Ignition Electrodes

We can offer various series of ignition needles.(USAGE)
The series of ignition needle for push-in type cooker units
The series of ignition needle for fuel gas burner
The series of ignition needle for ordinary cooker unit
The series of ignition needle for gas barbecue oven
The series of ignition needle for fuel gas water heater

ceramic igniter made of core very high temperature heat, the surface of a generation of corrosion oxidation film, even at 1250 degrees centigrade, all sorts of function are not changing.

ceramic igniter very can be in temperatures of up to 1250 degrees Celsius continuous use.

ceramic igniter from warming-a cooling-warming-cooling heating up again-several times repeatedly, the same hard, the same crisp, and does not affect other all sorts of performance.

Characteristics: aging and high temperature resistance, perfect insulation,high strength, good stability, suitable for different environment.

Technical parameter:0.5 to 1.5mm in diameter, length of 50- 80mm, insulation strength>15KV/mm.

Applications: all kinds of pipeline gas, liquefied petroleum gas, natural gas and electrical water heater, stove, gas oven ect with similar purpose.

Features:

1.Anti-heat,corrosion resistance, anti-high voltage,stable electrical
property,and high insulation functions.

2. Desirable surface fineness.

3. corrosion resistant ,heat resistant,light weight, Long performance life.

4.High quality with low price

5.Fast delivery

Performance
Item	Index	Unit	Steatite ceramic	95 Al2O3	96 Al2O3
Physical Characteristics	Bulk density	g/cm3	2.7	3.6	3.6
Physical Characteristics	Water absorption	%	0	0	0
Mechanical Characteristics	Flexural strength	Mpa	145	320	340
	Hardness Vickers	Gpa	5.7	12.2	13.5
	Elastic modulus	Gpa	120	280	320
	Poisson's ratio	-	0.21	0.22	0.23
Thermal Characteristics	Linear expansion coefficient	20-5000C 10-6/0C	7.9	7.1	7.2
	Thermal conductivity	w/(m.k)	2.5	16	24
	Specific Heat	10-3J/(kgK)	0.75	0.78	0.78
Electrical Characteristics	Dielectric constant(1MHZ)	-	6.2	9	9.4
	Dielectric loss angle	*10-4	18	15	5
	Dielectric strength	*106V/m	18	12	15

Prod Model:	HB23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	95% Alumina
Surface:	Glazed
Density:	3.2g/cm3
Color:	White
Type:	Distributorless Ignition System
Component:	Spark Plug
Certification:	CE
Ignition Voltage:	220V
Burner (',Torch) Path:	Per Your Need
Burner Height:	Per Your Need

HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.

HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic, and laser industries.

Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.

Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
