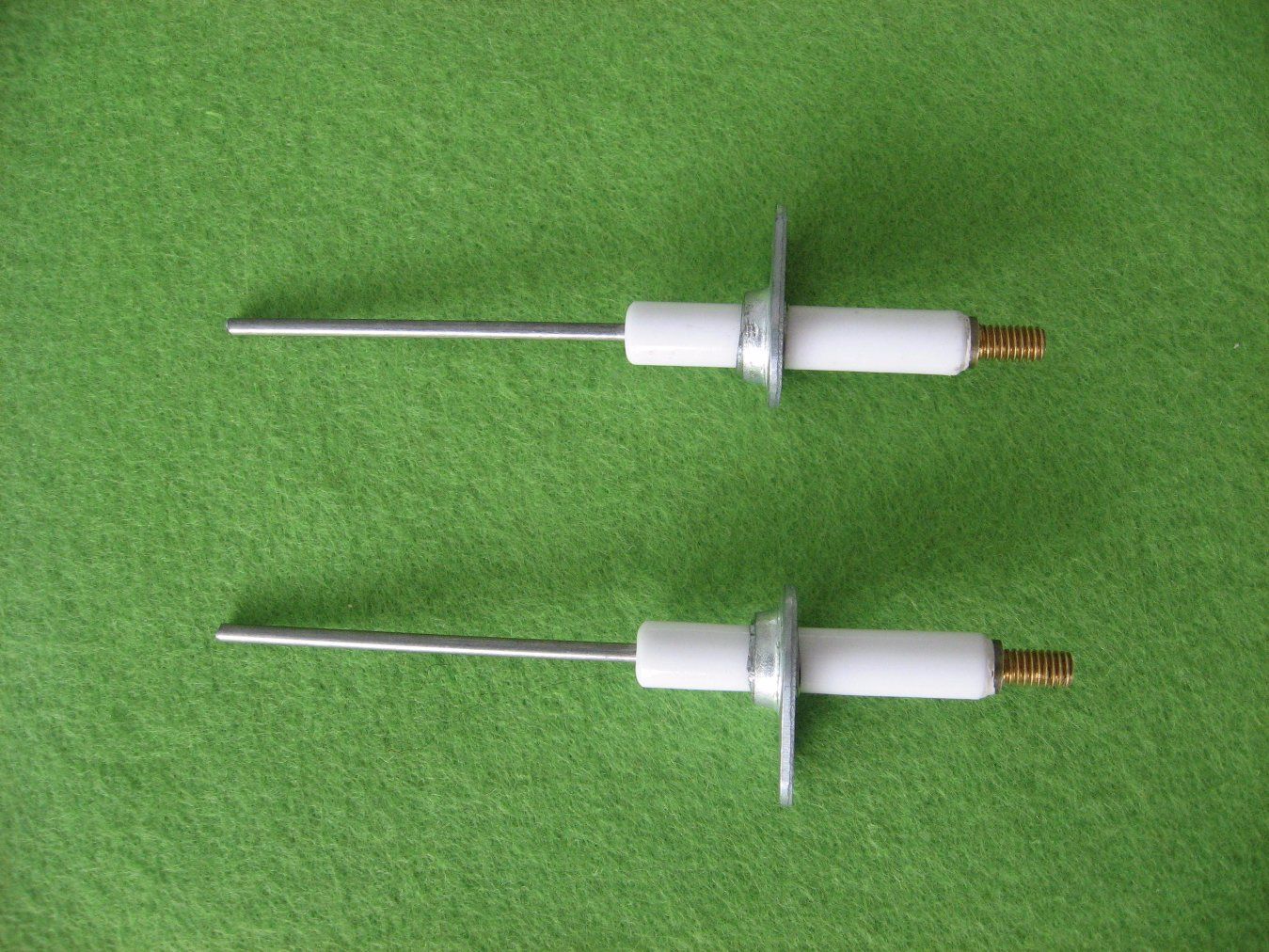

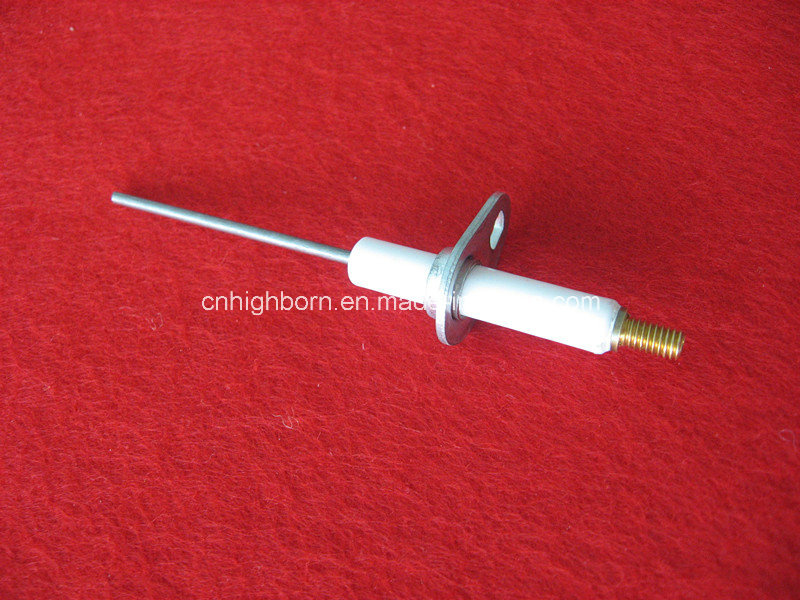

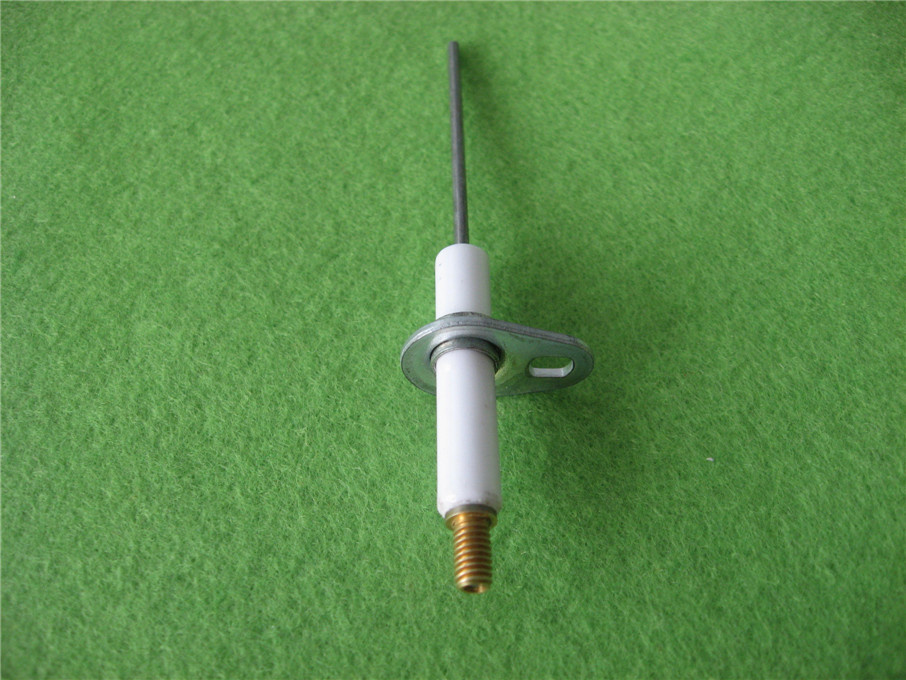

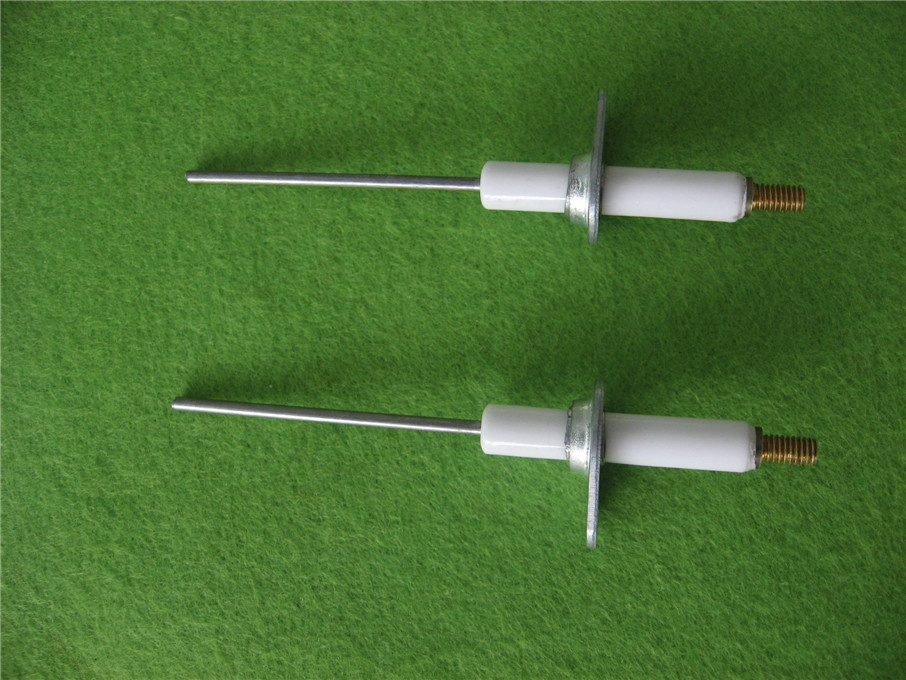

95% Insulating Alumina Ceramic Ignition Electrode

95% Insulating Alumina Ceramic Ignition Electrode
Price: US $ 0.45-0.56/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,D/P,Western Union,Paypal,Money Gram
gas cooker stove alumina ceramic ignition electrode


Material: 95% Al2O3 Color: White
5% alumina ceramic as material, electrode use the Ni80Cr20, 0Cr21Al6, KANTHAL D,KANTHAL AMP, YSS-SYTT ETC, it can resist temperature from 1100-1500C.


Features:

1.Anti-heat,corrosion resistance, anti-high voltage,stable electrical property,and high insulation functions.

2.Output voltage: Min. 16 ~25kv

3.Life time (using life)20,000 times.


Specifications:

Performance For Alumina Ceramic
Item                                                                                 Unit                            95 Al2O3             96 Al2O3             99 Al2O3
Physical Characteristics       Bulk density                     g/cm33.63.63.9
Water absorption               %000
Mechanical Characteristics   Flexural strength               Mpa320340360
Hardness Vickers             Gpa12.213.515.6
Elastic modulus                 Gpa280320370
Poisson's ratio                   -0.220.230.23
Thermal Characteristics       Linear expansion coefficient                 (200C-5000C) 10-6/0C7.17.28
Thermal conductivity       w/(m.k)162432
Specific Heat                     *10-3J/(kg*K)0.780.780.9
Electrical Characteristics     Dielectric constant (1MHZ) -99.49.9
Dielectric loss angle        *10-41551
Dielectric strength             *106V/m121515






Application:

We can offer various series of ignition needles.
The series of ignition needle for push-in type cooker units
The series of ignition needle for fuel gas burner
The series of ignition needle for ordinary cooker unit
The series of ignition needle for gas barbecue oven
The series of ignition needle for fuel gas water heater
Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.

COMPANY DETAILS:

HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.

Package:
Carton box,then wooden box to avoid the broken.

Payment term :

T.T OR Western Union OR Credit Card

Delviery time:
about 7 days for the stock sample;
about 20 days for the  bulk quantity.

Prod Model: ALU
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Alumina Ceramic,Fe-Cr-Al Wire
Al2O3: 95%
Color: White
Surface: Polished or Glazed
Shape: Straight,Htype Ect
Size: Can Be Customized
Dia Pin: 1.5-2.5mm
Type: Semiconductor Ignition
Component: Spark Plug
Certification: CE
Burner (',Torch) Path: Alumina Ceramic
