| Prod Model: |
M711&629 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mirror Size: |
7inch |
| Camera Type: |
IR Night Vision |
| Camera Degree: |
135/170 Degree Optional |
| TV System: |
PAL/NTSC |
| Connector: |
Aviation |
| Usage: |
Caravan/Bus/Truck |
| Image Device For Camera: |
CCD |
| Warranty: |
13 Months |
| Certification: |
CE |
| Voltage: |
12/24V |
| Audio Output: |
Digital Optical Output |
| Video Output: |
2 RCA |
| Placement: |
Clip on |
Product Description

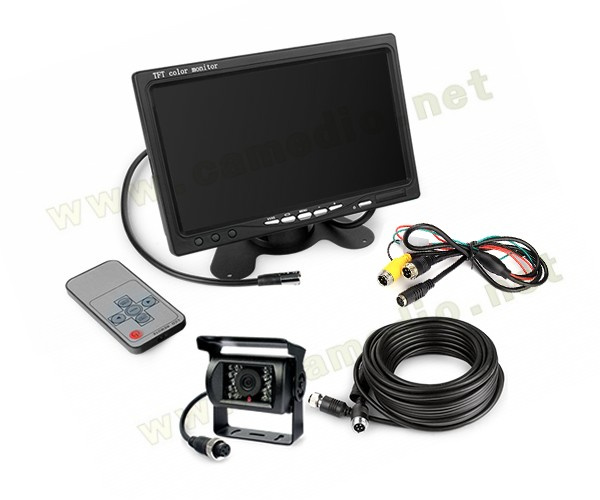

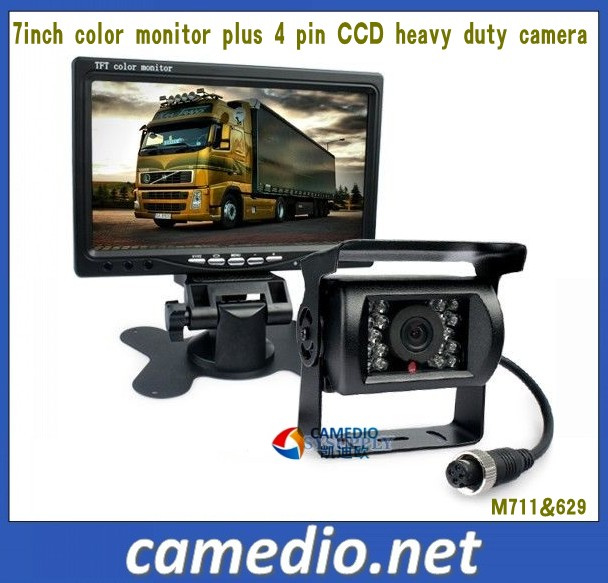

7" 4-Pin Connector TFT LCD Monitor
+ Waterproof IR CCD Camera
+ 10m 4-Pin Waterproof Shield Cable
+ Remote Control
The Luxury Solution for Truck/ Caravan/ Bus/ Motorhome/ Fork-lifts/ Houseboat
Reverse System
4 Pin Connector Cable solution system makes it easy to install and use the device anywhere.
Features:
* Monitor can be roof mounted or dash mounted to meet your special needs.
* Display image can be rotated horizontally and vertically for mirror or normal viewing.
* Monitor will automatically turn on and switch to the rear view camera when the reversing is
engaged.

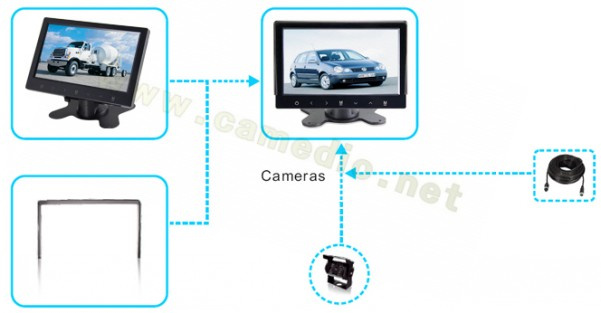

* Support two camera video inputs: V1/V2 Selectable.
Monitor Specification:
7" TFT-LCD monitor with undetachable sunshade design
Full function remote control
2 video inputs
Automatic change to backup view when on reverse position,even the monitor is turned off
Video signal disappear ,display blue screen
Multi-language(English/spanish/portuguese)
Screen size:7 inches
Display mode:16:9/4:3
Format:PAL or NTSC
Pixels:480*RGB*234/800*RGB*480
Power supply:DC12V/24V
Power consumption:6W
Camera Specification:
Image sensor : Sharp CCD
Effective pixels: N:512(H)*492(V) P:512(H)*582(V)
Resolution(TV lines): 420 TV lines
Lens angle:2.8mm 120°
water-proof rating:IP67-IP68
Minimum illumination: 0Lux
IR lights: 18pcs for super night version
Horizontal Sync.Frequency(KHZ):1/50 or 1/60~1/10,000
Vertical Sync.Frequency(HZ):15.625/15.734
Video Output: 1Vp-p,75 Ohm
S/N ratio : Better than 48dB
Power Source:DC8-12V 120mW
AGC:Auto
BLC:Auto
White Balance:Auto
Operating Temperature(Deg.C): -20~+75(RH95%Max.)
Storage Temperature(Deg.C) : -40~+85(RH95%Max.)
Accessories:
- 1 x7'' TFT LCD Monitor (DC 12V)
- 1 x Rearview camera (DC 12V)
- 1 x Mounting Plate
- 1 x Remote Controller (batteries are not included)
- 1 x 10m 4-pin cable
- 1 x Instruction
| Rear View Camera |
| Image Type: 1/4 "SHARP Color CCD |
| Horizontal Resolution: 420TV Lines |
| Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V) |
| Usable Illumination : 0Lux (Built in 18pcs IR LED's for Picture Support in the Dark) |
| Free viewing angle: 120° |
| Waterproof: IP67 |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Free Operating Voltage DC12 Volts |
| Dimensions: 89(W) x 53(H) x 48(D) mm (without mounting) |
| 7 inches Digital Screen TFT LCD Color Monitor |
| OSD MENU Set Camera Mirror/Normal image |
| Color System:PAL/NTSC (AUTO) |
| Display Resolution: 480(H) X 234(V) dot |
| Support Two Camera Video Inputs |
| Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 300 |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Free Operating Voltage DC12V |
