5 Inch TFT LCD Monitor System for Heavy Duty (BR-RVS5001)

Name: 5 Inch TFT LCD Monitor System for Heavy Duty (BR-RVS5001)
Brand: ibuyautoparts.com
SKU: 754006515
Availability: InStock
Rating: 4.9 (112 reviews)

Price:	US $ 70/Set
Trade Terms:	FOB,EXW
Min Order:	1/Set
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

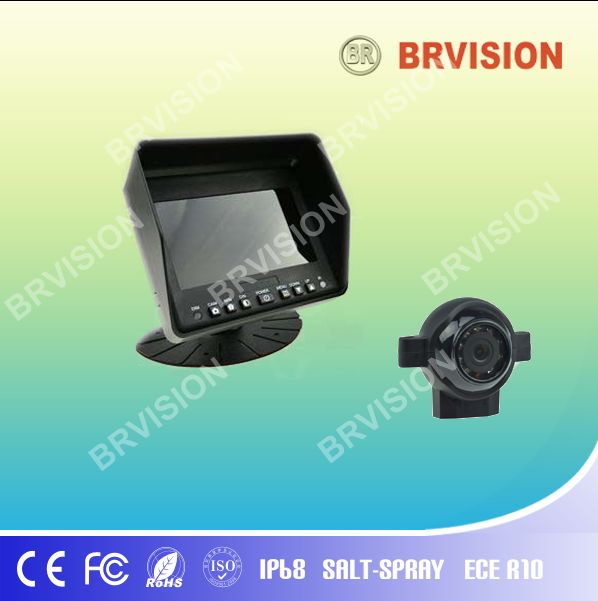

Rearview system with 5" Monitor & Ball camera

Key Feature:
- 5" TFT LCD monitor
- Rearview camera with night visino
- This system for front view monitor
- The rearview camera is for option
Monitor Specifications:
- Screen size: 5-inch Digital panel (16:9)
- System: PAL and NTSC switching
- Resolution: 800 x R-G-B x 480
- Power supply: 12-24V DC
- Bui lt-in speaker
- Heavy duty reversing
- Remote control, OSD menu
- contrast, color, brightness adjustable
- Three video input with 3 trigger cable-
- Operating temperature: -20° to +70°
- Storage temperature: -30° to +80°

Camera Specifications:
Ball camera for front view
. IP rating : IP68
. Image Sensors :1/4″CCD
. Resolution(TV lines) :420
. Lens Angle(Deg.) :120°

Aluminum Shell Backup Waterproof Camera

Image Type: 1/3 Inch Color CCD

Horizontal Resolution:720TV Lines

NTSC:976(H)×494(V) PAL:976(H)x582(V)

Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark)

Free viewing angle: 130°

Waterproof: 100% Waterproof IP69K Rating

Shockproof: 10G

Video Output:1.0Vp-p75Ω

Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional)

Power supply:DC12V (from Reversing Monitor)

Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting)

Weight Approx: 179g

Prod Model:	BR-RVS5001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Size:	5 Inch
System:	PAL and NTSC Switching
Resolution:	800 X R-G-B X 480
Image Sensors:	1/4" Sharp/Sony Color CCD
Waterproof:	IP68
Definition:	420TVL
Chip:	CCD
Waterproof Grade:	IP68
Interface:	4 Pin Connector

BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
