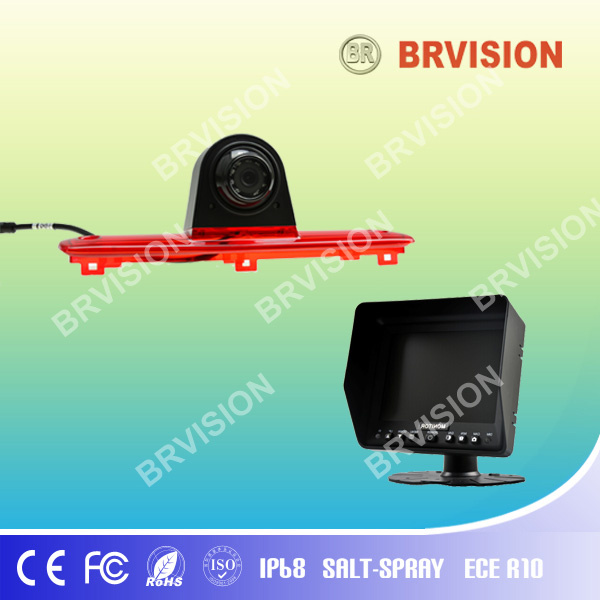

5" Digital Car Rear View System for Car Video
BRvision Unique Design
5" TFT Digital monitor,
2 camera input & 2 trigger cable
4P lock connector
9-36V
Notes:Have some spcial function: time delay, guildline ,mirror or normal image.e.g
Waterproof IP68 Brake Light Camera for FIAT Ducato
Model No.: BR-RVC07-FD
1. OE brake-light camera to Fit FIAT Ducato
2. 20 degree Vertical view angle adjustment.
3. Built-in LED brake light.
4. Current Consumption: MAX: 50mA.
5. Sensor: PC1089 Sensor.
6. Resolution: 700 TV Line.
7. Minimum illumination: 0Lux with IR.
8. View angle: 120 degree.
9. Effective Pixies: 648*488.
10. TV System: NTSC / PAL.
11. Video colour: Full colour.
12. Waterproof: IP69K.
13. Working Voltage: DC 9-16 V.
14. Operating Temperature: -20° C to 80° C.
15. Including 10M locking extension cable.
16. Option: Speaker.
Products Specifications:
BR-RVC07-FD, Brvision unique design, Brake light camera for: Fiat Ducato, Peugeot Box, Citroen Jumper. Nice to fit 4.3''/3.5'' monitor and mirror monitor.
| Item No. | BR-RVC07-FD |
| Feature | For Fiat Ducato, Peugeot Box, Citroen Jumper |
| Image Type | 1/3" 1/4 Color CCD/CMOS |
| Night vision | With IR lamp |
| TV System | NTSC/PAL |
| Lens Angle (Deg.) | 120 degree |
| IP Rating | IP69K |
| Vibration Rate | 10G |
| Connector | 4P connector or RCA connector for selection |
| Effective Pixels | N: 510*492 pixels P: 500*582 pixels |
| Horizontal Resolution | 420TVL/700TVL |
| B.L.C | Back light Compensation (Auto) |
| White Balance | Auto White Balance (Auto) |
| Minimum Illumination | 0Lux (LED ON) |
| S/N Ratio | ≥48dB |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Power consumption | <3W |
| Built-in Lens | f: 2.8mm |
| Power Consumption | DC 12V (+/-10%) |
| Audio | without |
| Operation Temperature | -30ºC~+70ºC.RH95% Max |
| Storage Temperature | -40ºC~+80ºC.RH95% Max |
| Certificate | FCC,CE, E-mark,ISO9001,TS16984, RoHs |
