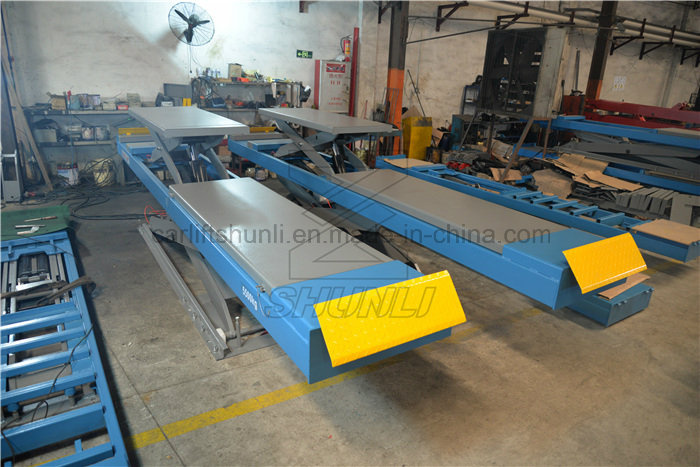

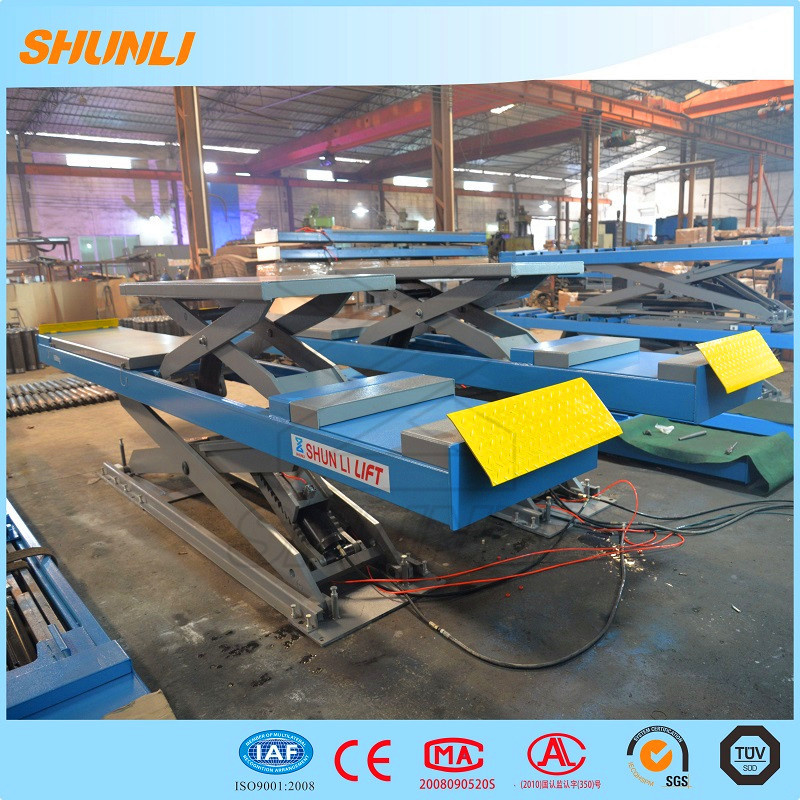

5.5ton on-Ground Wheel Alignment Auto Scissor Design Double Level Scissor Lift
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product features:
1.Oil cylinder built-in explosion-proof device
2.Mechanical safety locking with features of automatic engagement and release;
3.Super precision alignment scissor lift, double hidden design small space;
4.Long side slide plate, suitable for different wheelbase models;
5.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;
6.Double hydraulic system, hydraulic and mechanical lock triple insurance device, machine double-stage pneumatic insurance device, suitable for different height requirements;
7.A factory for its unique conjoined structure, Solid steel X structure of high qualified steel plate, made of high precision numerical control design, overcome steel pipe rigidity is not enough, easy to rust, to shape defects, structure more reasonable, more secure;
8.Main hydraulic parts imported from Japan, Germany, high-quality, stable, safe and reliable
9.Pass CE test. 110% dynamic loading, and 150% static loading.
Technical parameter | Model | SHL-Y-J-55DL |
| Lifting Capacity | 5500kg |
| Host Lifting Height | 1980mm |
| The Host Platform Length | 4800mm |
| The Host Platform Width | 670mm |
| Second Jack Lifting Height | 500mm |
| Second Jack Lifting Length | 1580-1780mm |
| Second Jack Lifting Width | 625mm |
| Motor | 3kw |
| Power | 220V, 380V, 50-60HZ |
| Air Pressure | 0.4-0.6mpa |
Product detail
Welcome to contact us for more details.
| Prod Model: |
SHL-Y-J-55DL |
| Motor: |
3kw |
| Lifting Height (Main Machine): |
1980mm |
| Second Lift Max. Height: |
500mm |
| Main Lift Platform Length: |
4800mm |
| Sub-Lit Platform Length: |
1580-1780mm |
| Main Lift Platform Width: |
670mm |
| Second Lift Platform Width: |
625mm |
| Type: |
Four Cylinder Hydraulic Lift |
| Lifting Capacity: |
≥5T |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

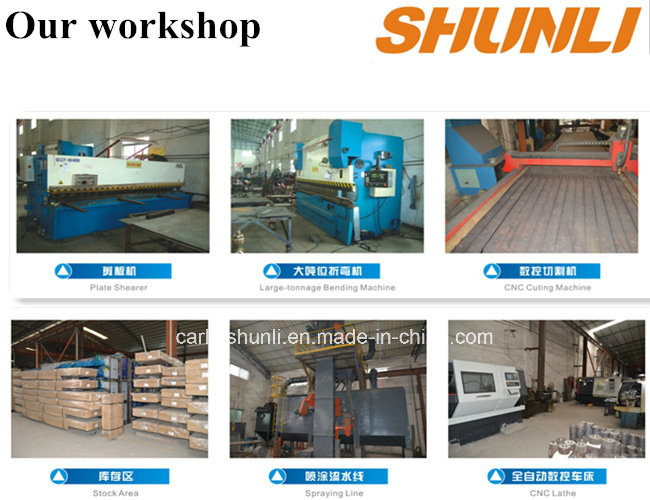

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
