4WD SUV Winches (TX10000)

TX10000
Performance 12VDC
Single line rated pull         10000lb(4536kg)
Motor 5.60hp/4.2kw,Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear reduction ratio 265.2:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum size Diameter2.5"(63.5mm) Length 8.8"(224mm)
Cable 94ft of 21/64" diameter(28m of 8.3mm diameter)
Fairlead 4-Way Roller Fairlead
Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(1.83m)
Finish Black/Dark Grey
Weight N.W.84lbs(38kg) G.W. 92lbs((42kg)

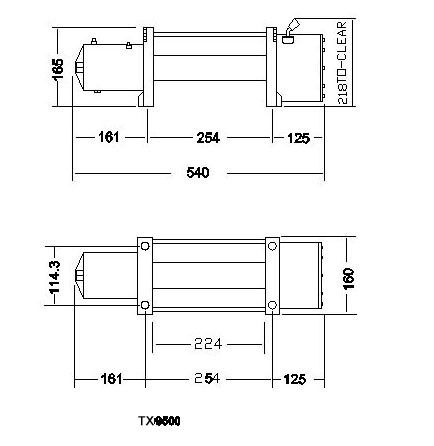

Overall dimentions (LxWxH)21.3"x6.3"x8.6"(562x160x218mm)
Mounting Bolt Pattern 10.00±0.015"x4.50±0.010"(254x114.3mm)

Electric winch with series wound motor
Model Capcity Power Steel cable Size (L X W X H) NW
TX9500 9500LB DC12V ø8.3mm X 28m 552 X 160 X 218mm 38KG

Pull, Speed, Amperes, Volts (First Layer)
Line Pull (lbs./ kg) Line Speed FPM(m/min) Motor (Amps)
0 24.6ft (7.8m) 80
2000 (907) 14.4ft (4.4m) 180
4000 (1814) 10.6ft (3.25m) 240
6000 (2722) 8.5ft (2.6m) 280
8000 (3629) 7.0ft (2.15m) 330
9500 (4310) 6.4ft (1.95m) 380

Line Pull And Rope Capacity In Layer
Layer Rated Line Pull (lbs./kgs) Tatal Rope On Drum (ft/m )
1 9500 (4300) 16.2 (5.0)
2 7700 (3490) 39.0 (12.0)
3 6500 (2940) 68.2 (21.0)
4 5700 (2580) 95.0 (29.0)

Line Pull (lbs./ kg) Line Speed FPM(m/min) Motor (Amps)
0 22.0ft (6.8m) 80
4000 (1814) 11.5ft (3.5m) 170
6000 (2722) 9.2ft (2.8m) 220
8000 (3629) 7.8ft (2.4m) 280
10000 (4536) 6.5ft (2.0m) 340
Line Pull And Rope Capacity In Layer
Layer Rated Line Pull (lbs./kgs) Tatal Rope On Drum (ft/m )
1.10000 (4536) 19.6 (6.0)
2. 8000 (3629) 42.6 (13.0)
3. 6670 (3030) 72.0 (22.0)
4. 5720 (2600) 92.0 (28.0)
