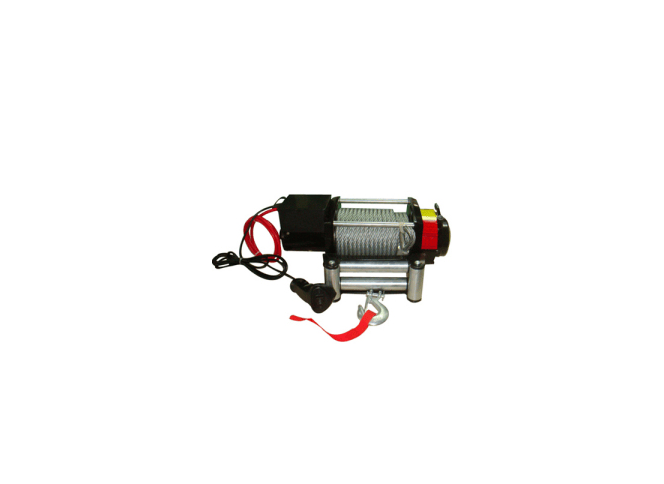

Electric Winch &Truck Winch&for Jeep Winch (TX18000LB)

Name: Electric Winch &Truck Winch&for Jeep Winch (TX18000LB)
Brand: ibuyautoparts.com
SKU: 776421475
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	US $ 240-260/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

TX18000
Performance: 12VDC
Single line rated pull: 18000lb(8181kg)
Motor: 6HP/4.5kw, Series Wound
Control: Remote switch, 12ft(3.7m)lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 318: 1
Clutch Sliding: Ring Gear
Braking Action: Automatic In-The-Drum
Drum size Diameter: 4.33"(110mm) Length 11.83"(300.5mm)
Cable: 85ft of 1/2" diameter(26m of 12.5mm diameter)
Fairlead: 4-Way Roller Fairlead
Battery Leads: 2 gauge, 72"(1.83m)
Finish: Black/Dark Grey
Weight: N. W. 62.5kg/ G. W. 66kg
Overall dimentions (LxWxH): 586x216x265mm
Mounting Bolt Pattern: 279.4x117.8mm

Line Pull And Rope Capacity In Layer
Layer Rated Line Pull (lbs./kgs) Tatal Rope On Drum (ft/m )
1 9500 (4300) 16.2 (5.0)
2 7700 (3490) 39.0 (12.0)
3 6500 (2940) 68.2 (21.0)
4 5700 (2580) 95.0 (29.0)

Pull, Speed, Amperes, Volts (First Layer)
Line Pull (lbs./ kg) Line Speed FPM(m/min) Motor (Amps)
0 22.0ft (6.8m) 80
4000 (1814) 11.5ft (3.5m) 170
6000 (2722) 9.2ft (2.8m) 220
8000 (3629) 7.8ft (2.4m) 280
10000 (4536) 6.5ft (2.0m) 340

Line Pull And Rope Capacity In Layer
Layer Rated Line Pull (lbs./kgs) Tatal Rope On Drum (ft/m )
1 10000 (4536) 19.6 (6.0)
2 8000 (3629) 42.6 (13.0)
3 6670 (3030) 72.0 (22.0)
4 5720 (2600) 92.0 (28.0)

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
18000lb Winches,Uvt:	Series Wound, 12V and 24V
Type:	Electric Winch
Power Type:	Series Motor DC
Pull Direction:	Forward
Working Voltage Of Electric Winch:	High Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Electric Winch Model:	UTV
Brand:	UTV

Ningbo Yinzhou Tianxiang Winch Co., Ltd. is located on Yinzhou Ningbo. The leading products of the company are electric winch, hand winch, winch accessories, car accessories, and all kinds of the hardware products, plastic products, metal products.

with the standard of technology exploitation makes creative technique. We win the clients' trust and deeply love depending on the dependable quality, consummate arts and crafts, high-quality function. Our products are sold far to Europe and America, etc. The products reach tens of nations and regions.
