Technical data

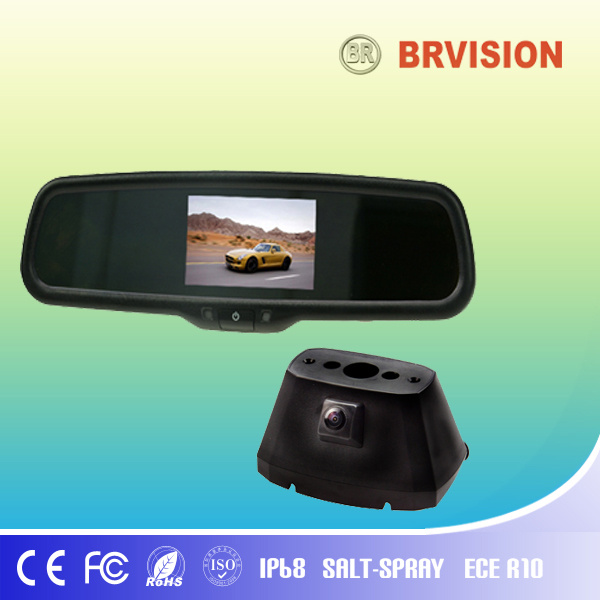

4.3" Digital TFT LCD Monitor with wireless receiver
- High digital high resolution mirror monitor
- Display size: 4.3 inches
- OEM mirror monitor to replace factory mirror
- PAL or NTSC system auto convert
- Automatically switch on when reverse gear is engaged.
- One video input
- 12V power input
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Operating Temperature: -30° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -40~+80(RH95%MAX.)
MODEL:BR-RVC18
Dodge promastre brake light camera
Easy installation.
Technical data
Image Type : 1/3CCD
TV System: NTSC/PAL
Mirror Image
Vibration Rate: 10G Built-in Lens : 2.8mm
Lens angel :170 degree
Waterproof and Dust resistance grade : IP69K
Horizontal Resolution: 700TV
Night Vision function: 9pcs LED lamp
Power:12VDC(+/-10%)
Video Output: 1.0vp-p, 75Ohm
Power Consumption: <3W
Operating temperature: -30ºC to +70ºC
Storage temperature: -40ºC to +80ºC
4P lock connector
| Image Type : | 1/3CCD |
| TV System: | NTSC/PAL |
| Vibration Rate: | 10G |
| Built-in Lens : | 2.8mm |
| Lens angel : | 120 degree |
| Waterproof and Dust resistance grade : | IP68 |
| Horizontal Resolution: | 700TVL |
| Night Vision function: | 9pcs LED lamp |
| Power: | 12VDC(+/-10%) |
| Video Output: | 1.0vp-p, 75Ohm, |
| Power Consumption: | <3W |
| Operating temperature: | -30ºC to +70ºC |
| Storage temperature: | -40ºC to +80ºC |
MODEL:BR-RVC18
Dodge promastre brake light camera
Easy installation.
Technical data
Image Type : 1/3CMOS
TV System: NTSC/PAL
Mirror Image
Vibration Rate: 10G Built-in Lens : 2.8mm
Lens angel :170 degree
Waterproof and Dust resistance grade : IP69K
Horizontal Resolution: 700TV
Night Vision function: 9pcs LED lamp
Power:12VDC(+/-10%)
Video Output: 1.0vp-p, 75Ohm
Power Consumption: <3W
Operating temperature: -30ºC to +70ºC
Storage temperature: -40ºC to +80ºC
4P lock connector
| Image Type : | 1/3CMOS |
| TV System: | NTSC/PAL |
| Vibration Rate: | 10G |
| Built-in Lens : | 2.8mm |
| Lens angel : | 120 degree |
| Waterproof and Dust resistance grade : | IP69 |
| Horizontal Resolution: | 700TVL |
| Night Vision function: | 9pcs LED lamp |
| Power: | 12VDC(+/-10%) |
| Video Output: | 1.0vp-p, 75Ohm, |
| Power Consumption: | <3W |
| Operating temperature: | -30ºC to +70ºC |
| Storage temperature: | -40ºC to +80ºC
|
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
