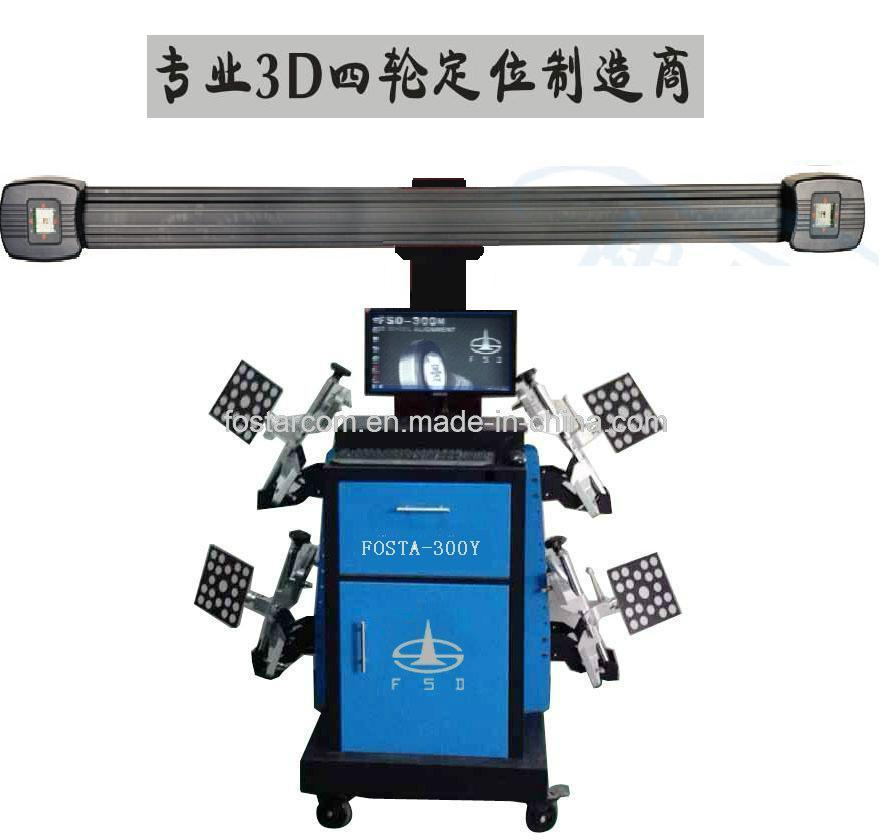

3D Wheel Alignment

FSD-300Y

3D wheel alignment

• Easy maintenance
• Low operational cost
• Stability in operations
• CE ISO

Key Features:

• Professional, Stable, Durable, Affordable

• Professional: Dual camera system (imported from Japan)

• Dual-core CPU computer system

• Waterproof targets

• 24 inch clamps

• Calibration Free

• Up t0 120cm lifting range

• Auto lift platform compensation

• Auto vehicle compensation

• Super-big vehicle database  covering over 20 000 models.

• Height adjustable

• Durable: Calibration Free

• Long life hi-speed camera system

• 12 months warranty

• Multilingual software-including English, German, Polish, Spanish, Português .

• 3D camera frame from Germany, lens 20'' from Japan for 5m length car body test high accurate.

FSD-300Y is my company's new launch of a better cost-effective a 3D car four wheel positioning machine.

:

Its main features:1.,.

The 1 column uses the steel square through tube production, surface spray treatment.2.0.01;

2 accurate positioning accuracy to 0.01;3.35;

3 cameras can work within 35 degrees below zero;4.500,;

4 camera with 5 million phase element, over the horizon measurement;5.:12;

5 camera detection range: 12 meters;6.:30/;

6 cameras to deal with image speed: 30 / sec;7.3.

7 to detect the trolley time only 3 seconds.Product introduction:,,7075.

Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:The installation range: 1.6--3.1 meters.
Relative humidity: 3550 degree.
Relative humidity: less than or equal to 85%.
Optional: Black reflector, interchangeable reflector, small front big reflector.
The standard reflector size as reflector pattern before and after.
This machine uses high speed import SONY camera, 5 million phase element, the camera working speed to 30 out of phase speed work per second. Reflector panels have a variety of patterns, software vision calibration accuracy: 0.02mm.
A calibration before leaving the factory, no need to re calibrate. Cart time only takes 3 seconds.
The main technical parameters are as follows:

Products are mainly detected car series vehicles: detection of the scope of the tire rim: 10, -23",
Product main features: detection can be used for four wheel positioning parameters parked in the trench, lift, small scissors type lifting machine, large scissors type lifting machine on the platform of the car; standard parts including: the host Aluminum Alloy beam (two side equipped with SONY 5 million pixel camera), the host computer and display the 19 "a four point clamp four, reflecting plate 4, the car used for the detection of the corner plate two, the mounting bracket of the steering wheel and brake fixture;
And supporting the use of the power supply and electrical accessories; host chassis using movable cabinet, and in combination with the beam column foot screw is fixed on the ground; the minimum distance and the maximum distance of the installation of the equipment: the bar (two side camera) to the straight line distance of vehicle lift angle disc Center (front wheel center): 1.6 to 2.8 meters; see below:

Main Feature

1. Independent research and development ability, software upgrade continuous (software function, interface design and database upgrade)
2. Imported camera lens with high quality.
3. Non-contact, avoid damage to aluminum rim.
4. Voice prompt function makes the operation convenient.
5. Intellectual property is one of our development value and will realize max. profit.
6. All the components are made from moulds, can be installed or replaced at will.
7. The software function and interface can be designed at customers' demand.
8. The promoter elements under warranty for lift,low price in using.
9. HD target board can realize interaction without calibration.
10. With vehicle and customer search function,quick and convenient in searching.
11. Pure homemade 3D four wheel alignment tester,hight precision in measurement.
 The main technical parameters are as follows:

Location parameter	Accuracy (center value)	Precision range	Maximum measurement range
Display accuracy and measurement accuracy	±0.01°/0.01mm	Measurement accuracy of 0.01 degrees or 0.01mm
Toe	±0.02°	±0.01°	±30°
Dip angle	±0.03°	±0.01°	±30°
Inclination angle of main pin	±0.03°	±0.01°	±15°
Inclination angle of main pin	±0.04°	±0.01°	±20°
thrust angle	±0.02°	±0.01°	±6°
Maximum turning angle	±0.02°	±0.01°	±30°
Withdrawal angle	±0.02°	±0.01°	±6°
Tread	±0.25cm	±0.01°	3000mm
Wheelbase	±0.25cm	±0.01°	8000mm
Diagonal money	±2mm	±0.3cm	12000mm
Rolling radius	±2mm	±0.3cm	700mm

Detailed product description
1, measurement of the fastest four wheel positioning (with cart interface) cart process 3 seconds, after the stop time is only one second
2.The whole time 0.2 seconds to update the data once
2.1 the most accurate measurement of the four round of the positioning of the instrument
Accuracy up to the standard of the international brand, hope that professional users can provide positioning service for the intermediate vehicle
3, the best domestic repeat of the 3D four round of the round of the number of repeated measurements to achieve the international top brands (put two pictures, is the value of the two measurement)
4, adjust the steering wheel thrust line positioning principle of convenient efficient and convenient put the steering wheel (two)
Picture, a steering wheel slanting, one is right
5, a comprehensive measurement of camber angle toe kingpin caster kingpin inclination tread wheelbase diagonal tire rolling radius (a group of pictures screenshot)
6, lifting machine is not on the impact of uneven (schematic)
7, after mesuring the stability of the most far away from the camera 8 - 7 meters still can be measured (pictures, put away after the)
8, lifting adjustment can be under the vehicle lifting the state claim easily the camber of the vehicle solution and inclination of adjustment (screenshot, lifting raised)
9, the unit of arbitrary switching degree of sub millimeter per cent between arbitrary switching to facilitate a variety of operating habits (screenshot, before and after conversion)
10, the static measurement function convenient but the accuracy is not high, only for in the measurement requirements of the vehicle, nor has the function of adjust the direction of the
11, two can locate the function only needs to hang the two to be able to locate the dish to be convenient and quick, but is unable to swing the steering wheel
12, the latest volume of the database to meet the needs of various regions of the country to use the device (database image)
13, up to the choice of the target before the target (a variety of target can choose or customize)
14,E-pad PAD ,1 ''to
14, Epad PAD can sync, 1 easily shunting save labor cost '' to
15,passat audi ,(:)
15, the public Audi Passat special adjustment software, to facilitate the right to send (synchronized picture: computer and)
16, the use of background equipment management, you can record the daily use of the device (display the contents of the document)

Main feature

-- 3D digital camera measurement system: two 3D digital cameras, four targets
--  Target Features: There is no electronic components on the target, without data transmission,
--  no batteries facilitate the complete elimination of circuit failure. The product is more stable
--  Equipment Calibration: Equipment calibration is done once only when the installation is complete, which is not necessary to regularly repeat.
--  dynamic measurement: dynamic measurement based on pushing. Without raising its body, the vehicle is at a natural state. Simultaneous detection of four wheels would reduce measurement time and improve the accuracy.
Software system: simple operation, to read the basic wheel alignment data within two minutes.
-- Low demand for horizontal level of lift: for the list, the levelness difference of 5cm or less has little impact on the measurement results, different from the traditional technology  with over-reliance on gravity optical platform levelness degrees.
--  all-model measurement: it can detect long body, low chassis vehicles.
--  maintenance: Maintenance is simple, the device doesn't need periodic calibration.
