3.5inch Digital Car Rear View System (3.5" digital LCD+universal car camera)

3.5inch Digital Car Rear View System (3.5
Price: Negotiable/Set
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Money Gram,Western Union

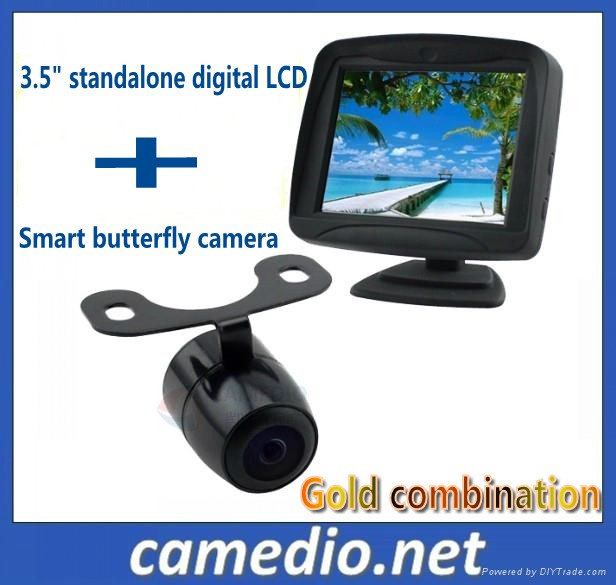

 3.5inch rear view camera system (3.5"digital LCD+rear view camra)

1. 3.5-inch TFT screen

2. System: PAL/NTSC auto-switch

3. Manually adjust the brightness

4.Butterfly CMOS car rear view camera

5.170 degree and waterproof

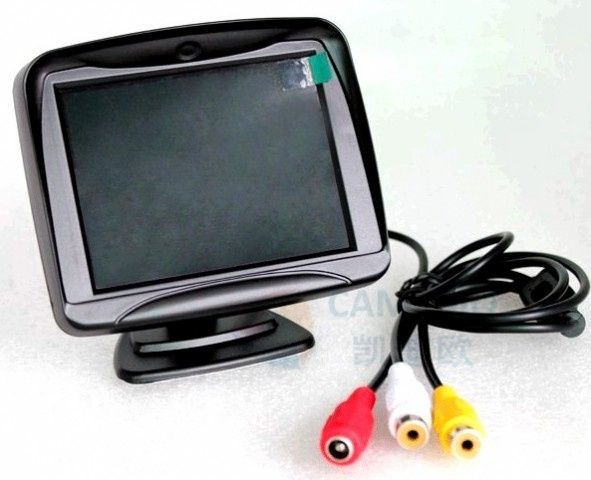

Specification for monitor :
- Panel: 3.5-inch digital TFT LCD monitor

- Resolution: 320 x 240 x RGB pixels

- System: PAL/NTSC auto-switch

- Video input: two video inputs (V1/V2)

- Power supply: DC 12V, +-10%

- Manually adjust the brightness

- When input signal automatically boot

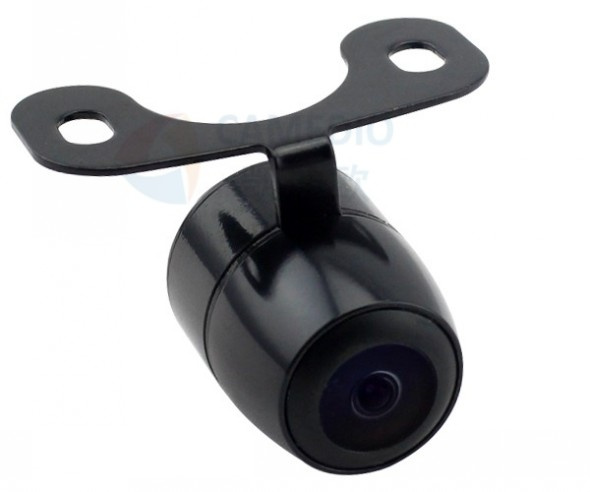

Description for camera:
Butterfly car  camera suitable for rearview

Image sensor PC1030 420TV lines  in default

Other kinds of image sensor optional :PC3030 480TV lines CMOS, MT9V136 480TV lines analog CCD (price different)

Camera degree:170 degree

TV system:PAL/NTSC (PAL in default)



Specification for camera:
Image device: PC1030

TV system: PAL/NTSC

Resolution: 420 TV lines

Effective pixels: 648*488 pixels

Sensing area: 4.08 mm *3.12 mm

Shutter speed: 1/60-1/5000

Video output: 1.0 VP-P, 75 OHM

Gamma consumption: 0.45

White balance: Auto

Scanning system: 2: 1 interlace

Lens angle: 170 degree

Waterproof: IP67/68

Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)

Power supply: DC 12V



Prod Model: M350B306
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Video Output: 2 RCA
Audio Output: Digital Optical Output
Voltage: 12/24V
Placement: Dashboard
Mirror Size: 3.5inch
Resolution: 320*240
Video Inputs: Two
Camera Degree: 135/170 Degree Optional
TV System: PAL/NTSC
