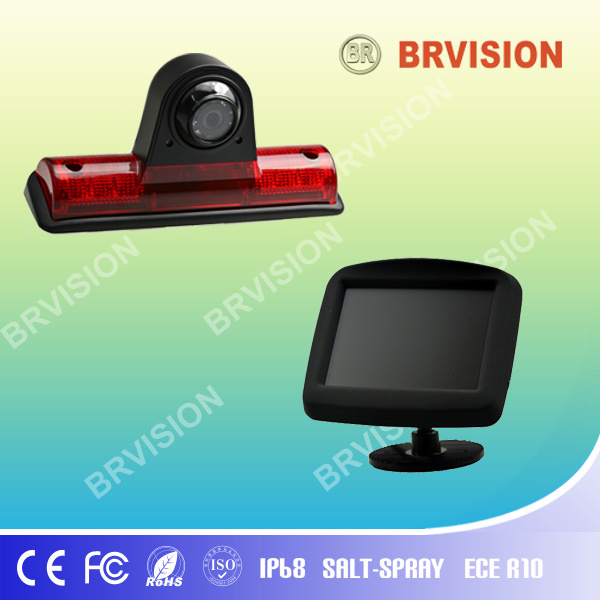

3.5" Waterproof Backup System with Waterproof Monitor and Camera
Products Introduction:
Model No.:BR-TM3501
3.5" digital TFT monitor,
1 camera input
RCA connector
12V power input
Notes: 1 camera input with RCA connector
Model No.:BR-RVC07-GV
Universal brake light camera
for 2011/(2012 & UP) Nissan NV2500,Nissan NV 3500
IP69K waterproof rating.
mirror image,
N/P System,
120 degree,
4P lock connector
12V power input
40C° to +80C° operation Temp
please buy extension cable as
requirement.
Extra cost for extension cable:
1. BR-TC10: 10M 4P to 4P cabel
2. BR-AC04: 10M 4P to RCA, +, - cable
3. BR-AC04-15: 15M 4P to RCA,+,- cable
Products Specifications:
3.5'' digital TFT monitor, 1 camera input and 1 trigger cable. It is workable for passenger cars. 12V power input. Nice selection to connect brake light backup cameras.
| Item No. | BR-TM3501 |
| connector | 4P or RVC connector |
| Image | 4:3 image |
| Color system | PAL/NTSC(selectable) |
| Language | 9 languages for selection |
| Resolution | WSVGA 1024 |
| horizontal | 600 vertical pixel |
| Power requirement | 12/24V DC |
| Power consumption | 5W |
| Dimension | 261 (L) x 177 (W) x 70 (D) |
| Operating temperature | -30° to +70° |
| Storage temperature | -40° to +80 |
| Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
BR-RVC07-GV, Universal brake light camera, Can use for Nissan NV250.
| Item No. | BR-RVC07-GV |
| Image Type | 1/3" 1/4 Color CCD/CMOS |
| Night vision | With IR lamp |
| TV System | NTSC/PAL |
| Lens Angle (Deg.) | 120 degree |
| IP Rating | IP69K |
| Vibration Rate | 10G |
| Connector | 4P connector or RCA connector for selection |
| Effective Pixels | N: 510*492 pixels P: 500*582 pixels |
| Horizontal Resolution | 420TVL/700TVL |
| B.L.C | Back light Compensation (Auto) |
| White Balance | Auto White Balance (Auto) |
| Minimum Illumination | 0Lux (LED ON) |
| S/N Ratio | ≥48dB |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Power consumption | <3W |
| Built-in Lens | f: 2.8mm |
| Power Consumption | DC 12V (+/-10%) |
| Audio | without |
| Operation Temperature | -30ºC~+70ºC.RH95% Max |
| Storage Temperature | -40ºC~+80ºC.RH95% Max |
| Certificate | FCC,CE, E-mark,ISO9001,TS16984, RoHs |
