2018 High Sensitivity Solar Power/ USB Charging TPMS for Car Tire Monitoring

2018 High Sensitivity Solar Power/ USB Charging TPMS for Car Tire Monitoring
Price: US $ 38-42/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

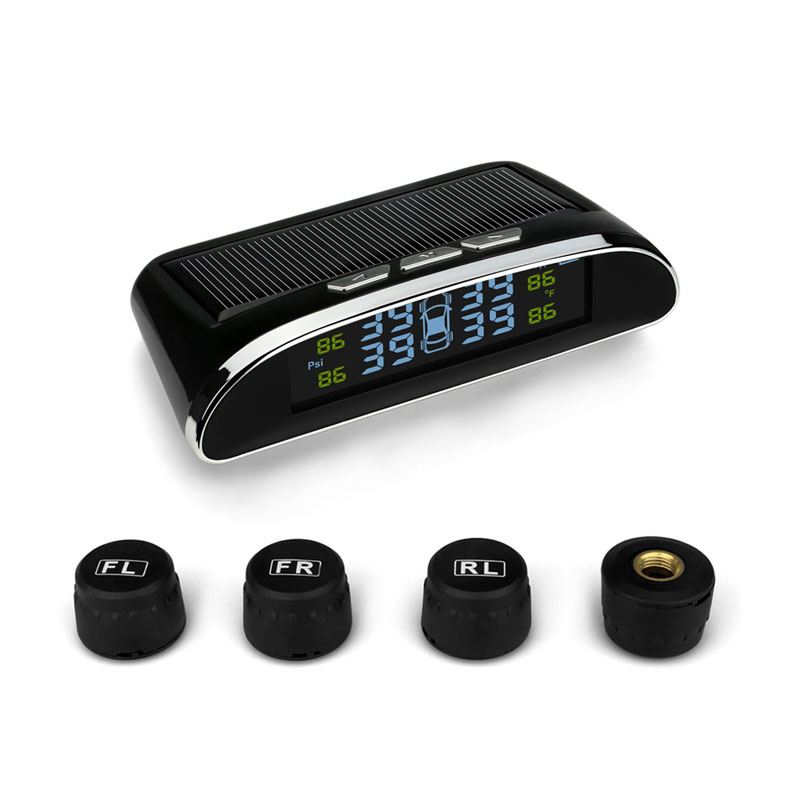

2018 High Sensitivity Solar power/ USB charging TPMS for Car Tire Monitoring


1. Solar power charging directly, USB Charging, Lcd color displaying, Adjustable Brightness
2. Real-time monitoring the pressure & temperature, Low air pressure/high temperature warning,
3. Set up sensor: learn new sensor ID code when replace sensor
4. Operating Voltage: 2.1--3.6 V, Operating temperature: -2 0ºC--75ºC, Bright operating current: < 10 mA
5. RF Transmission frequency: 433 . 92 MHz±50 KHz
6. Storage temperature: - 3 0ºC--8 0ºC
7. RF Signal reception sensitivity: - 90 dbm
8. Battery Life: 2 Years, Can be replaced when using up.

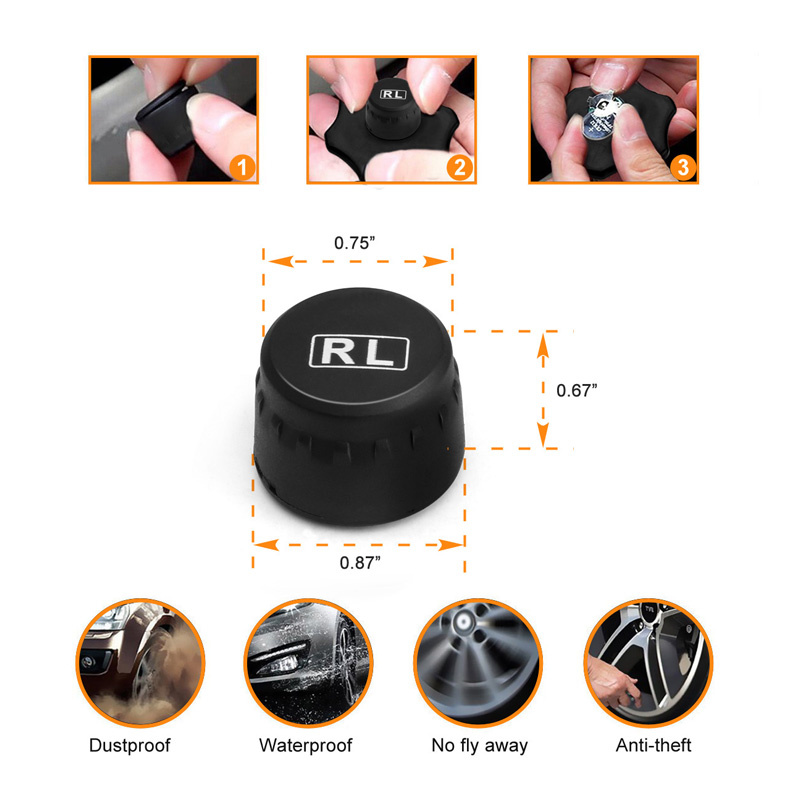

Sensor Parameter
Parameter ValueParameter Value
Storage temperature- 35ºC~ 85ºCOperating temperature-3 0ºC--8 0ºC
Black Operating Current< 3 mABright operating current< 5 0 mA
RF Signal reception sensitivity- 90 dbmOperating Voltage2.1--3.6 V
RF Transmission frequency433 . 92 MHz±50 KHz IPIP67
Battery Life2 YearsWeight8 g
Pressure accuracy±1.5PsiTransmit power<10dBm


Packaging Details:  Gift Box Size:150*120*70MM

Delivery Details: 3-7 days for sample and 15-20 business dyas for general order

Our Services:
    1.Professional and 17 years history
    2.17-year overseas marketing &17-year OEM/ODM experience
    3.100% quality test before shipment
    4.Market leading prices
    5.Best after-sales service
    6.Abundant exporting experience

Notice: For more detail information,please feel free to contact us!















Prod Model: SPIE-V
Waterproof Degree: IP67
Battery Life: 2 Years
Weight: 8g
Storage Temperature: -30~80 °c
Working Temperature: -20~75 °c
Temperature Accuracy: ±2°c
Working Voltage: 2.1~3.6 V
Working Pressure: 0~99 Psi
Pressure Accuracy: ±1.5psi
Transmit Frequency: 433.92 MHz
Certification: E-MARK, FCC
Update Method: by Hard Disk
Testing Equipment Type: Solar Power TPMS
Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
