Product Name: 22, "big touch screen, Zhuhai war peak (ZHZF)", "four plate interchangeable series", "3D four wheel positioning device"
Model: 3D ZHZF-300P
3D car four wheel positioning device: genuine WIN7-37 bit operating system, Chinese and English optional operating surface,
Origin: China - Zhuhai
Registered trademark: f.s.d (ZHZF)

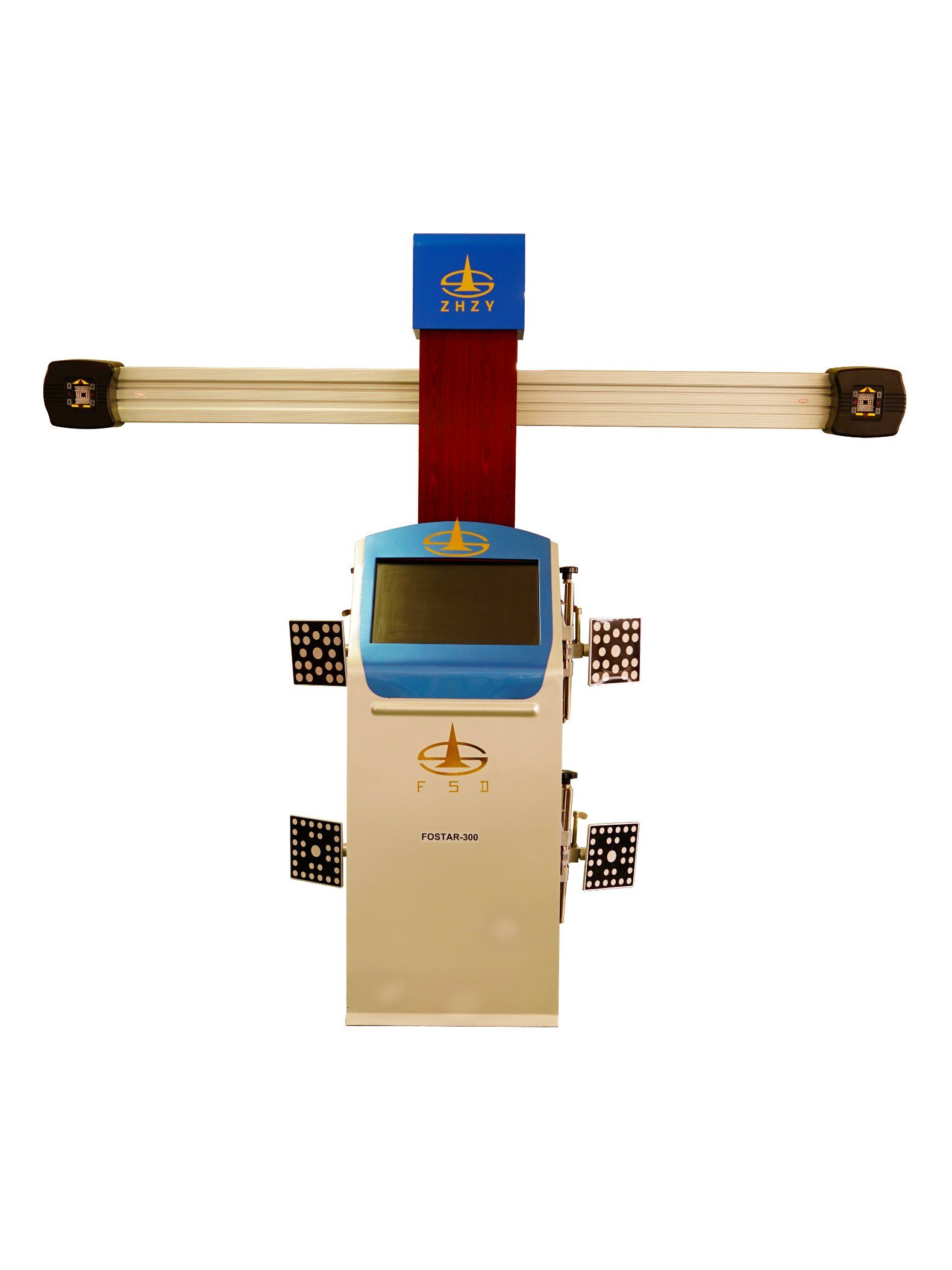

The product appearance picture is as follows: (real, material, picture)
1.appearance, convenient operation, exclusive domestic production, the column with high strength Aluminum Alloy four mm thick square tube surface oxidation furniture mahogany color, beautiful and generous appearance, four fixture hanging on the side of the column two column. Easy to install at fixed height a certain height; the camera uses SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual algorithm technology, the software is easy to quickly read data; 3D dynamic image display operation guidance operation; rolling compensation, short wheelbase micro distance cart. Difference and track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular Calibration; aluminum alloy steering wheel is convenient to check the direction parameters and the front wheel toe angle and other parameters; super database, free database updates once a year; products through the ISO quality system and the European Union CE security certification.

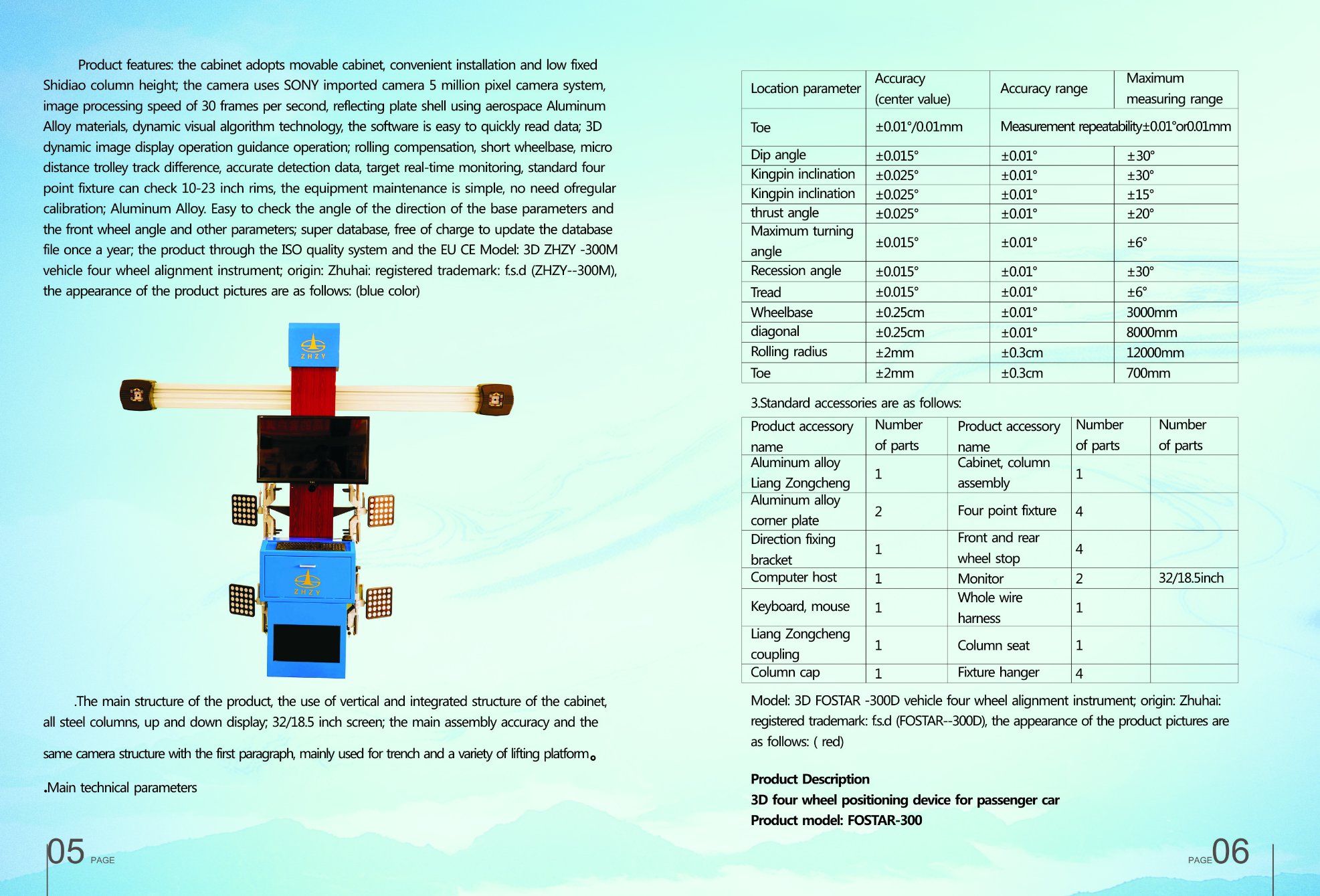

2.The main technical parameters of the product are as follows:
| Location parameter | Accuracy (center value) | Accuracy range | Maximum measuring range |
| Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement repeatability±0.01°or0.01mm |
| Toe | ±0.015° | ±0.01° | ±30° |
| Dip angle | ±0.025° | ±0.01° | ±30° |
| Kingpin inclination | ±0.025° | ±0.01° | ±15° |
| Kingpin inclination | ±0.025° | ±0.01° | ±20° |
| thrust angle | ±0.015° | ±0.01° | ±6° |
| Maximum turning angle | ±0.015° | ±0.01° | ±30° |
| Recession angle | ±0.015° | ±0.01° | ±6° |
| Tread | ±0.25cm | ±0.01° | 3000mm |
| Wheelbase | ±0.25cm | ±0.01° | 8000mm |
| diagonal | ±2mm | ±0.3cm | 12000mm |
| Rolling radius | ±2mm | ±0.3cm | 700mm |
3. Standard accessories are as follows:
| Product accessory name | Number of parts | Product accessory name | Number of parts | Remarks |
| Aluminum alloy Liang Zongcheng | 1 | Cabinet, column assembly | 1 | |
| Aluminum alloy corner plate | 2 | Four point fixture | 4 | |
| Direction fixing bracket | 1 | Front and rear wheel stop | 4 | |
| Computer host | 1 | Monitor | 1 | 22" |
| Keyboard, mouse | 1 | Whole wire harness | 1 | |
| Liang Zongcheng coupling | 1 | Column seat | 1 | |
| Column cap | 1 | Fixture hanger | 4 | |
4 main features of the product
0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed
0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;
0.3. Measurement accuracy in the industry first-class;
0.4. Software supports a variety of reflective patterns;
0.5. The product has passed ISO quality system certification and export CE certification;
0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function
0.8. The software is easy to operate, easy to use, intuitive 3D display
0.9. National UNPROFOR, remote service system
10. All over the country are equipped with after-sales service outlets, remote technical support
11. Regular return visit system of products, continuous innovation, once a year free update data packets
12. The product is specially designed for the drainage design. It is convenient to check the data
13) free training staff14).Dynamic calculation of the body parameters, not affected by the lifting machine
15. Automatic calculation of body parameters and rolling compensation body parameters
16. Software intuitive response to the four round of the condition and need to solve the problem of repair

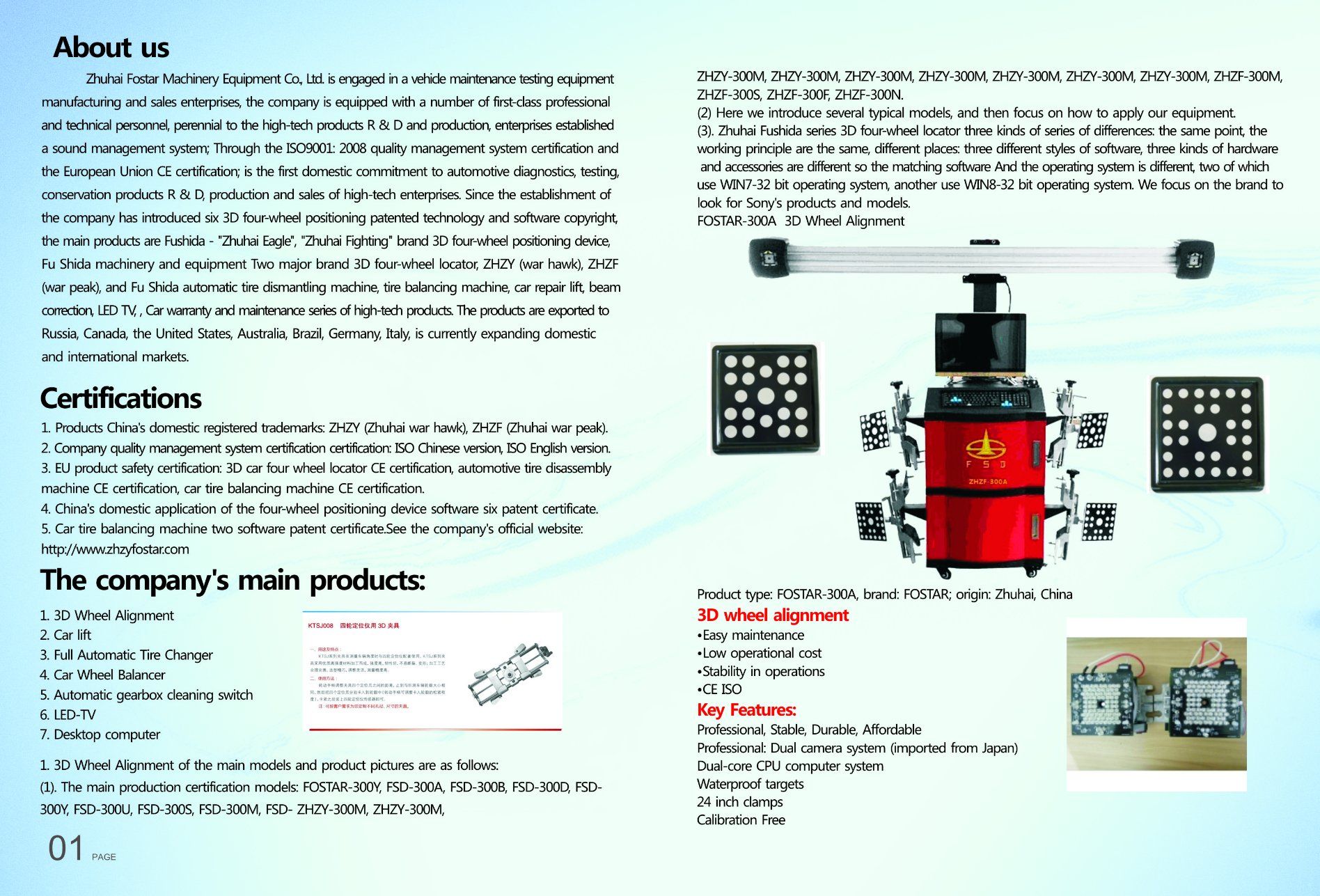

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
