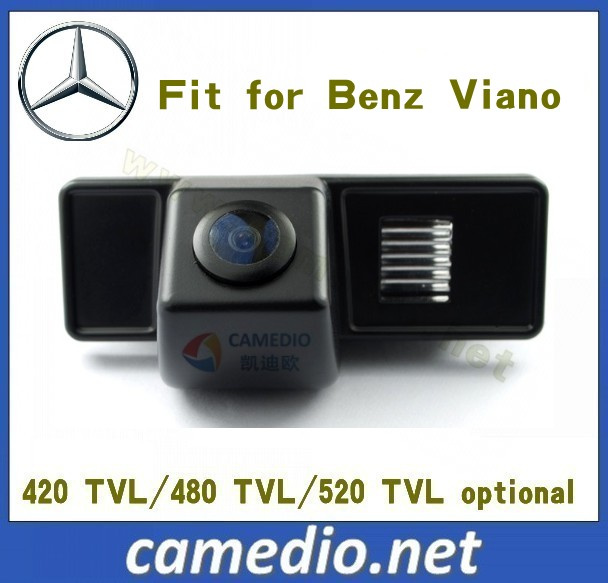

170 Degree 480TV Lines Special Rear View Backup Car Camera for Benz Viano

Name: 170 Degree 480TV Lines Special Rear View Backup Car Camera for Benz Viano
Brand: ibuyautoparts.com
SKU: 691063092
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 7-9/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1) Special rear view car camera for 09/10/11 Toyota CAMRY

2) 1/3 Color CMOS image sensor, 480 TV lines

3) With 4PCS IR light for super bright LED night vision

4) PAL/NTSC TV Systems optional.

5) Waterproof design, weather-resist.

6) 170 degree wide viewing angle

7) Image sensor optional: PC1030 420 TV lines, MT9V136 analog CCD 480 TVlines, PC1089 520TVL CCD

Specification:
Image sensor: PC7070

1. Effective pixels: 682*504 pixels

2. Video output: 1Vp_p± 10%

3. Scanning system: 2: 1 interlace

4. Minimum illumination: 0.05 Lux/F=1.2(0 Lux with IR on)

5. Operation temperature: -20° C - 75° C, RH 95% MAX

6. TV system: PAL/NTSC

7. Sensing area: 3.8 mm *2.9 mm

8. SNR: >47.2dB

9. Lens angle: 135° /170°

10. Resolution: 480 TV lines

11. Shutter speed: 1-1/10000

12. White balance: Auto

13. Waterproof: IP67/68

14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V

15. Working temperature: -20° C - 70° C, RH 95% MAX

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto

Prod Model:	for Benz Viano
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor Available:	PC1030/PC7070/Mt9V136/PC1089
Camera Degree:	170 Degree
Waterproof:	Yes
TV System:	PAL/NTSC
Minimum Illumination:	0.1lux
Pixels:	628X582
Resolution:	420tvl/480 Tvl/520tvl Optional
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Definition:	480TV Lines

Shenzhen Camedio Technology Co., Ltd. Is a professtional manufacturer of Car electronical products, which is located in Shenzhen, the center of electronic products in China. Our mainly products include car camera, car monitor, 2.4GHz Wireless system, rear view camera, parking sensor, rear view system etc.

Camedio Tech has been in these business lines for about 5 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions. Up to now, Our company has been dedicated to the development, design and production of a wide rang of standard and customized car electronics.

We are always trying our best to benefit our customers and to provide our customers with quality products and best service, we have professional teams of designing, production and QC. Many of them are skillful and experienced engineers. We have the competitive price based on high quality and with an excellent after sales service and a series of warranty service to benefit our customers, all those make us won good reputation and respect in the domestic and oversea markets.

"Quality, Reputation and Service come First" is the key to Camedio success. The trust of customer at home and abroad has been gained for the reliable performance and smart design of the product of company.

Welcome for your valuable inquiry and visiting our company at any time!
