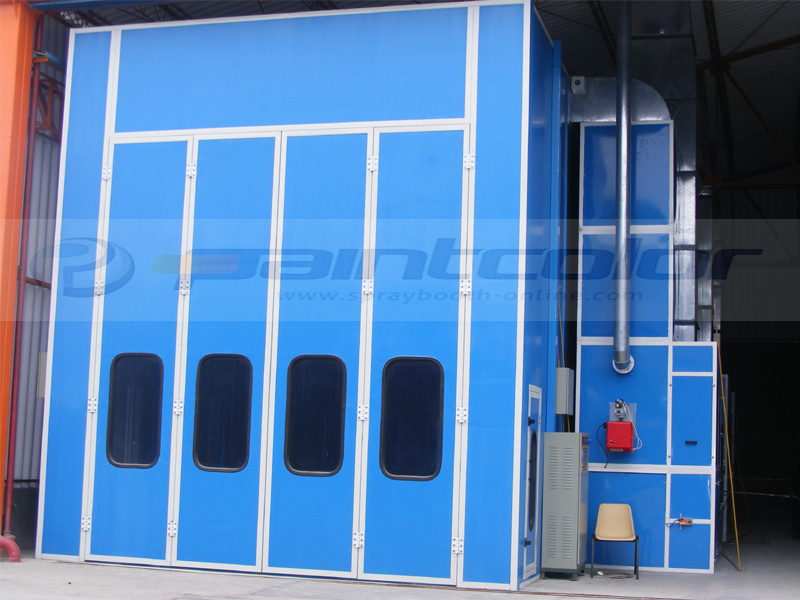

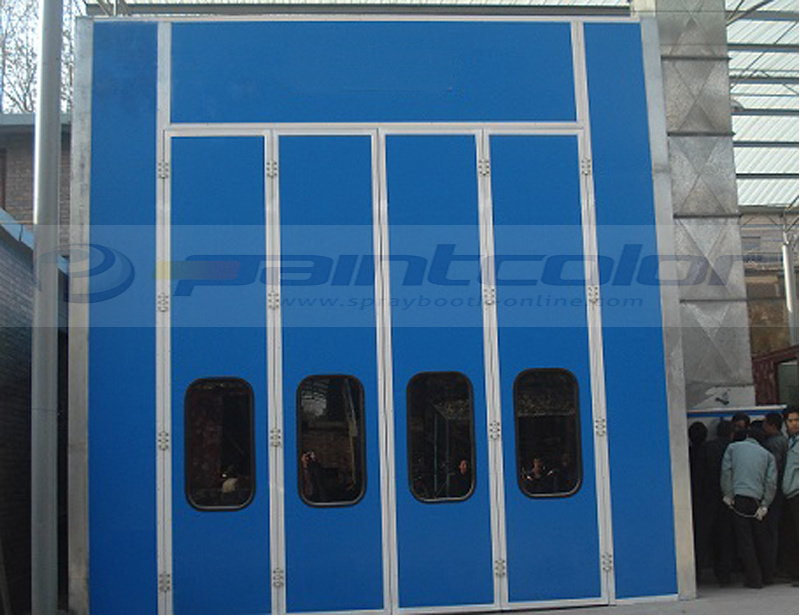

15m X 5m X 5m Bus Spray Booth
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Paintcolor Spray Booth Bus Painting Booth 15m X 5m X 5mAny booth size request can be met!!!Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.
Specification| External Size (mm) | 15150x6750x5800 |
| Internal Size (mm) | 15000x5000x5000 |
| Cabin System | 1.Wallboard | EPS (expanded polystyrene)colorful steel boards,the side wallboard 75mm thickness, the roof panel 50mm thickness, one-time compound-formed, anti-flame and heat-containing. |
|
|
| 2.The outside frames are decorated by galvanized steel sheets; the front door frames are decorated by aluminum-alloy components |
|

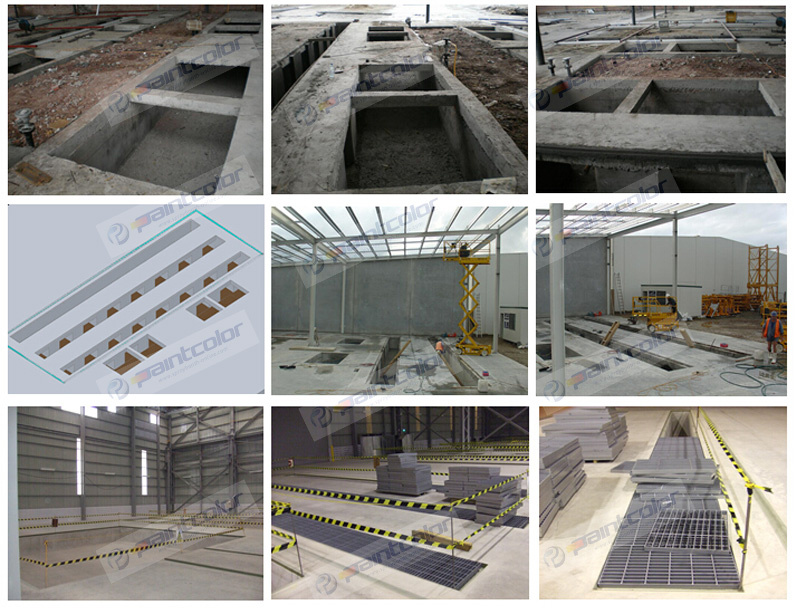

| 3.Basement | Framework of zinc-plated steel plate, zinc-plated square steel pipe assemble, The floor consist of flat steel grids. |
|

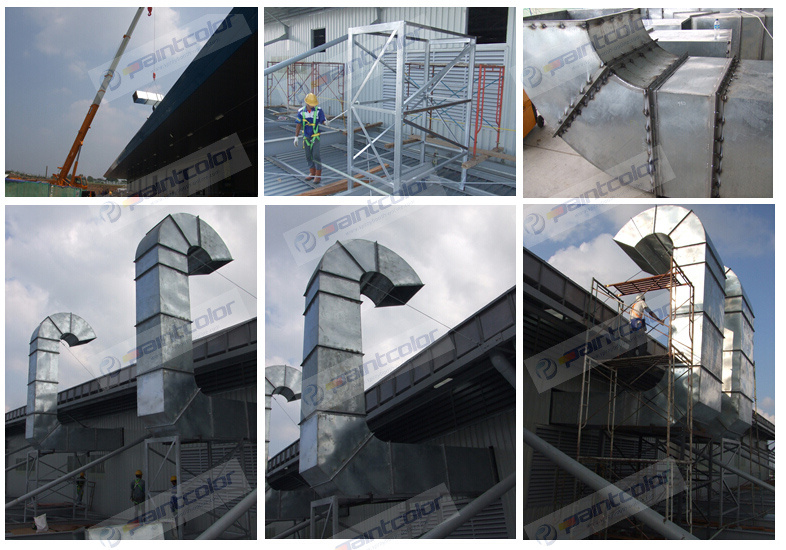

| Air Intake and Exhaust System | 1.Tow sets of air intake and exhaust systems; The air intake ventilator: Centrifugal insulated ventilator, using of Siemens YDW technology |
|
| Inhaling Ventilator | Model: YDW -5.6S | Exhaust Ventilator | Model: 4-82-6.3E |
| Blower capacity: 15000m3/h | Blower capacity: 27587m3/h |
| Pressure: 810Pa | Pressure: 1079Pa |
| Rolling speed: 900rpm | Rolling speed: 1400rpm |
| Power: 5.5kw | Power: 11kw |
| Quantity: 4 sets | Quantity: 2sets |
| 2.The circulation system covers two sets of automatic valves, matching Swiss genuine 18 newton actuator. |
| 3.The generator cabinet is made of formed steel framework |
| Air Purification System | Adopt dual filtering structure, the rough structure, can capture granules larger than 15 μm. It is fixed in the joint of automatic valve cabinet and burning cabinet, matching a movable door for being replaced conveniently. The fine structure features multilayer structure so that it block away granules bigger than 5μm. It is set as interior-hook block flat style at the bottom of the static pressure room. The whole purification system has capacity of large volume of dust, small air block and long durability. Its filtering rate reaches 98% |
|
|
|
|
|
|
|
| Heating System | 1.Burner | It takes Italy Baite brand,BT26 model light diesel burner which generates 260 thousand Kilocalories heat energy each hour;the consumption of oil is 18~25kg/h |
|
|
| 2.Heat Energy Converters | Welded by stainless steel by argon arc welding. Its structure is rational, safe and reliable, and its heat exchange area is large, heat utilization rate is high. The heat exchange rate reaches 85% |
|
|
| Light System | The light boxes present a angle of 45. against the wallboard. The system consists of 36W Philips lights and electron ballasts; The wall lights cover 36W Philips lights and electron ballasts. The illumination in the room is above 800 Lux |
|
|
| Electric controlling system | Made up of the selected electronic apparatuses as all operational and controlling components, which are of supreme quality. |
|
| Environmental Conversation System | It adopt mutilple mixing fog filter device to ensure qualified exhaust according to the relevant state standards; the active-carbon capture device |
|
| Prod Model: |
PC-LSB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Airflow Direction: |
Fully Undershot-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Large Spray Booth |
