| Prod Model: |
obt0615004 |
| Axle Type: |
American Axle/Semi Trailer Axle |
| Recommended Tyre: |
11.00r20 |
| Brake Size: |
Sn420X180/Fruehauf Fuwa BPW Axle |
| Bearing: |
Hm 518445/10 Semi Trailer Axle |
| Model: |
Single Tyre;Twin Tyre Trailer Axle |
| Wheel Fixing: |
ISO 10/280/335/M22X1.5/Semi Trailer |
Product Description

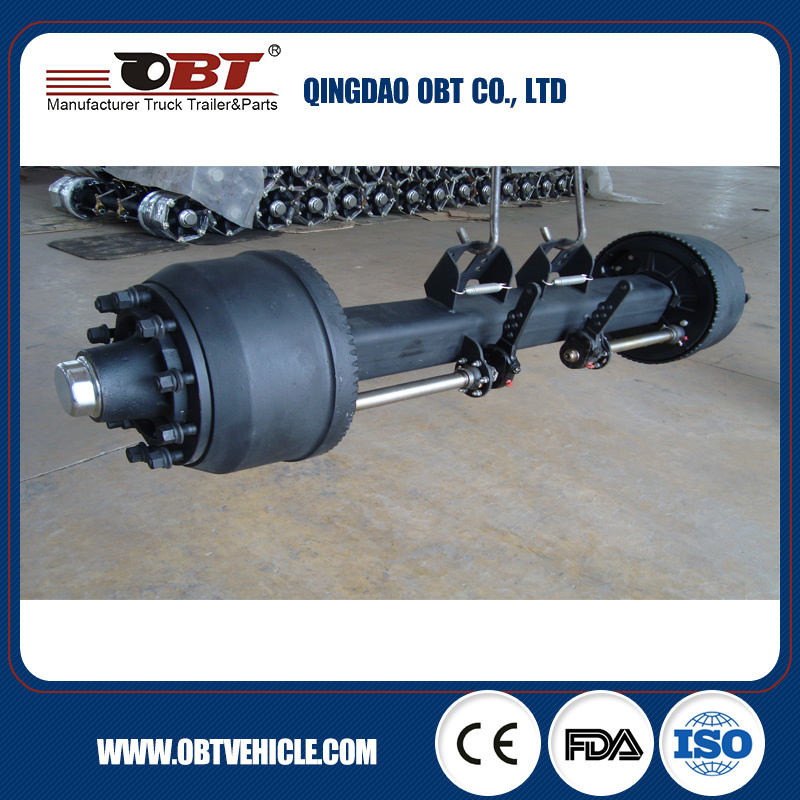

Semi Trailer Axle Features
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
Semi Trailer Axle Specification:
| Model | Max. Capacity | Seriesφ×Width | TR | LM | | GM | Stud | P.C.D | φ H | LP | Recommended Wheel | Weight | Note |
| | kg | mm | mm | mm | mm | mm | | mm | mm | mm | | kg | |
| OBT2023 | 10,500 | S 420x180 | 1820 | ≤ 435 | C 127 | 368 | 10xM22x1.5 ISO | 335 | 281 | 2165 | 7.50V-20 | 363 | HM518410/45 |
| OBT2024 | 10,500 | S 420x180 | 1820 | ≤ 435 | C 127 | 368 | 10xM20x1.5 JAP | 286 | 221 | 2165 | 7.50V-20 | 359 | |
| OBT2026 | 10,500 | S 420x180 | 1820 | ≤ 435 | C 127 | 368 | 10xM22x1.5 ISO | 286 | 220 | 2165 | 7.50V-20 | 356 | HM518410/45 |
| OBT2423 | 13,000 | S 420x180 | 1840 | ≤ 455 | S 150 | 390 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 7.50V-20 | 368 | HM518410/45 HM518410/45 |
| OBT2424 | 13,000 | S 420x180 | 1840 | ≤ 455 | S 150 | 390 | 10xM20x1.5 JAP | 286 | 221 | 2185 | 7.50V-20 | 363 |
| OBT2426 | 13,000 | S 420x180 | 1840 | ≤ 455 | S 150 | 390 | 10xM22x1.5 ISO | 335 | 221 | 2185 | 7.50V-20 | 361 |
| OBT2023AD | 16,000 | S 420x180 | 1850 | ≤ 455 | C 127 | 396 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 8.00V-20 | 398 | HM518410/45 |
| OBT2423AD | 16,000 | S 420x180 | 1850 | ≤ 455 | S 150 | 396 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 8.00V-20 | 383 | |
| OBT2062B | 16,000 | S 420x220 | 1850 | ≤ 455 | C 127 | 354 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 8.00V-20 | 423 | HM220110/49 |
| OBT2462B | 16,000 | S 420x220 | 1850 | ≤ 455 | S 150 | 354 | 10xM22x1.5 ISO | 335 | 281 | 2205 | 8.00V-20 | 425 | |
| OBT2482B | 15,000 | S 420x220 | 1850 | ≤ 455 | S 150 | 354 | 10xM24x1.5 ISO | 335 | 281 | 2270 | 8.50V-20 | 460 | HM518410/45 |
Semi Trailer Axle-OBT Introduction:OBT AXLE was found in 1997 and is an ISO9001:2000 and TS16949manufacturer of semi trailer axles assembly, providing all kinds of suspension system and other trailer parts.
After service: OBT AXLE will provide best reasonable price and thoughtful back up service.
meanwhile provide one year gurantee for axle shaft.
Axle Featurers:
1.OBT axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.
2.OBT axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
3.OBT axle spindle is connected by the by submerged -arc welding, which make the whole beam more reliable and solid.
4.OBT axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.
5.OBT axle grease lubricant is supplied by EXXON Mobile which could provide high lubricating performance and protect bearing well.
6.OBT axle brake lining is high performance, non-asbestos, non-pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.
7.OBT Axlebearing is adopted famous brand in China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.
8.OBT Axle wheel hub and brake drum use the international standard material of ball iron and gary iron separately, which has the advantages of over loading capability, abrade resistant, heat resistant and do not distort.
9.OBT axle be National Automobile Monitor and Inspe ction Center certified ,axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.

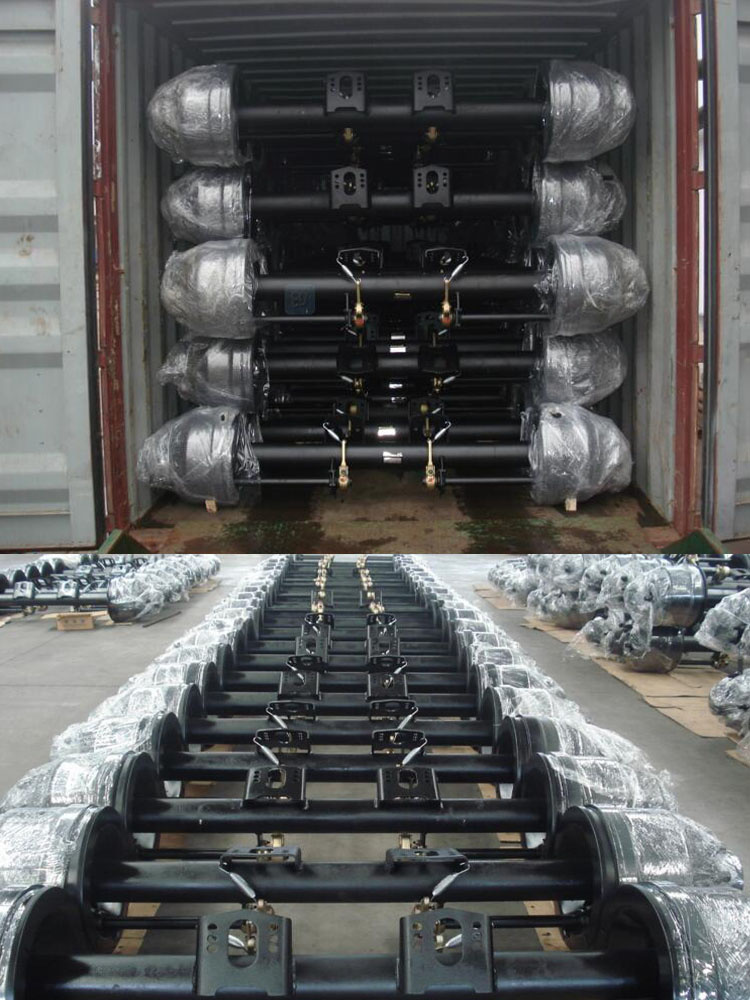

Axle Packaging:58sets/20GP
Contact Message:Kaka(manager sale)
Mob:0086-13105164785
Address:No.20 Zhuzhou road,Qingdao,China.
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
