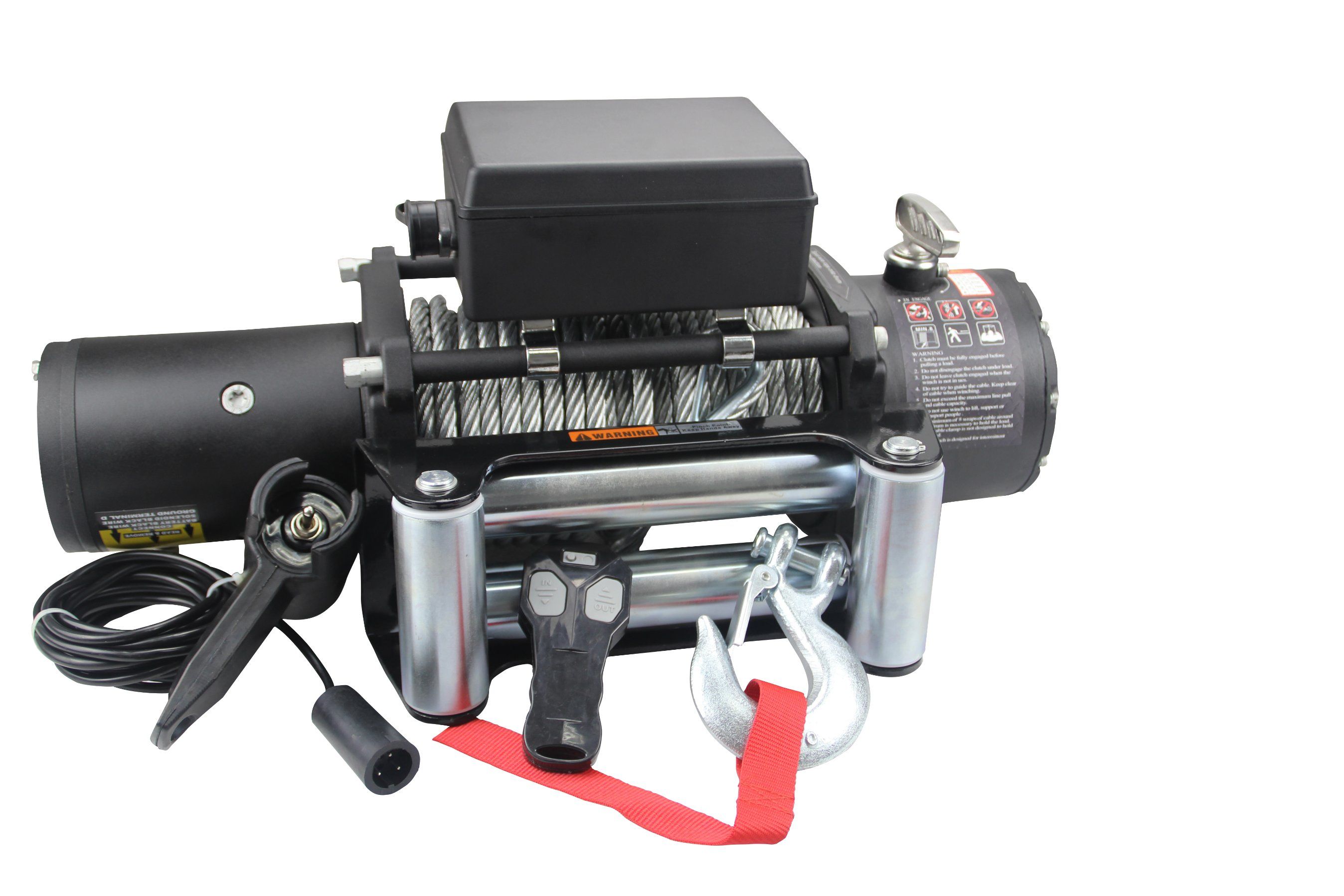

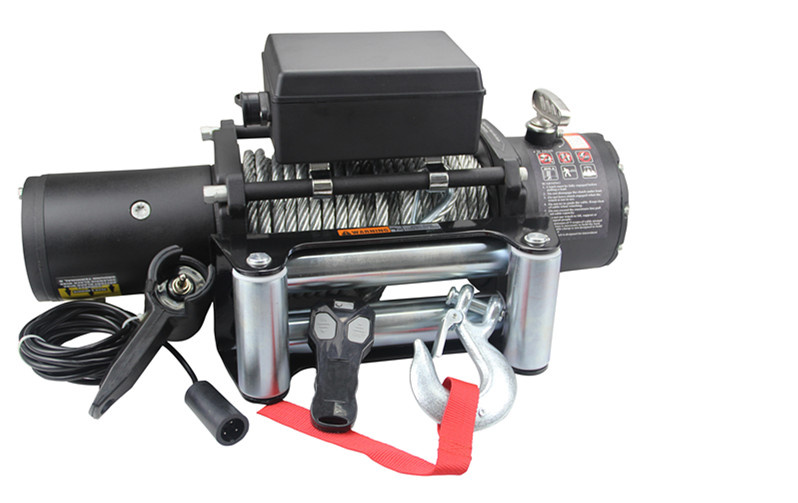

12500 Lb off-Road Truck & Trailer Electric Winch with Waterproof

Name: 12500 Lb off-Road Truck & Trailer Electric Winch with Waterproof
Brand: ibuyautoparts.com
SKU: 839021855
Availability: InStock
Rating: 4.8 (35 reviews)

Price:	US $ 156-165PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

12,500 LBS Features and Specifications :
Part Number : XM-TE936
Performance: 12 VDC
Single line rated pull: 12,500lbs ( 5665kg)
Motor: 6.6hp/4.8kw series -wound
Braking action: Automatic locking with motor
Clutch: Sliding ring gear
Gear train : 3 -stage planetary
Gear ratio: 265: 1
Remote Switch: included, 11ft
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72"(1.83m)
Fairlead: 4-way roller fairlead
Steel cable: Ф9.5 x 72 ft (Ф9.5 x 24 m )
Weight: 92.5 pound (42kg )
Overall dimension: 21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	6000	8000	10000	12000	13000
Line Pull	kg	LOAD	1812	2718	3624	4304	5436	5888
Line speed	ft/ min	37.32	14.22	12.72	10.26	8.55	6.45	4.65
Line speed	m/ min	12.44	4.74	4.24	3.42	2.85	2.15	1.55
Motor current	Amps	72	136	198	266	310	360	389

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	12500	9927	8250	7045
Rated line pull per layer	kg	5665	4497	3737	3191
Length of cable on drum	ft	17.8	38.2	64.2	72
Length of cable on drum	m	5.93	12.73	19.57	24.00

Prod Model:	XM-TE936
Weight:	37.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	12500lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.
