1. PRODUCT

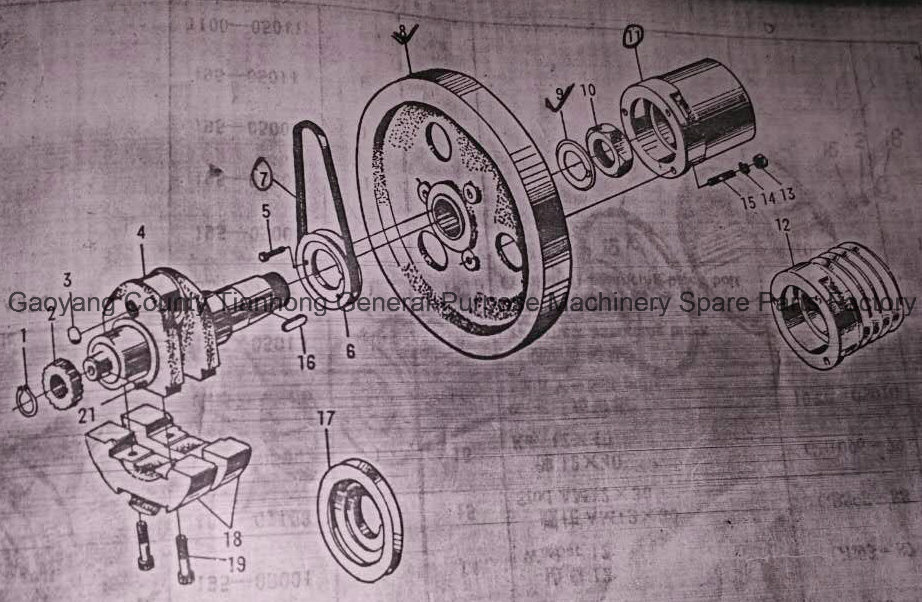

| Serial number | Description | Qty per machine |
| 1 | circlip 30 | 1 |
| 2 | crankshaft timing gear | 1 |
| 3 | baffle | 1 |
| 4 | crankshaft | 1 |
| 5 | bolt m6*25 | 3 |
| 6 | main v-belt pulley | 1 |
| 7 | V- belt | 1 |
| 8 | flywheel | 1 |
| 9 | lock washer | 1 |
| 10 | flywheel nut | 1 |
| 11 | belt pulley | 1 |
| 12 | v-belt pulley | 1 |
| 13 | nut m12 | 3 |
| 14 | washer 12 | 3 |
| 15 | stud AM12*30 | 3 |
| 16 | key 12*40 | 1 |
| 17 | main V-belt pulley | 1 |
| 18 | crankshaft balancing block | 2 |
| 19 | crankshaft balancing block bolt | 4 |
| 20 | key 8*18 | 1 |
Product Attribute | Model | S195 S1100 S1110 S1115 S1125 R170A R175A R180A R180 R185 R195 |

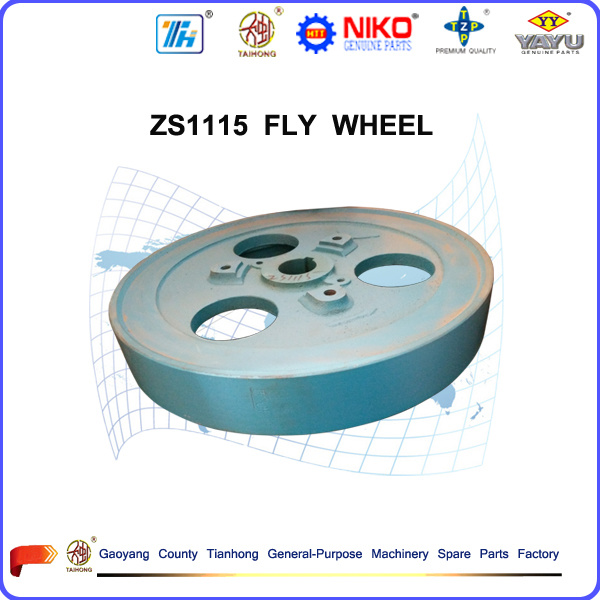

Name | fly wheel |
Brand | AMEC, JD, EM, R, QC, SF, YN, Changchai, , Wuling, etc. |
Material | Steel, alloy, cemented carbide materials |
Category | Diesel Engine Spare Parts |
Diesesl engine type | Single-Cylinder and Multi-Cylinder |
Cylinder bore range | 65mm-135mm |
Power range | 3hP-150hp |
Features | - Premium quality
- Various dimensions
- Highly resistant to corrosion
- OEM accept
- Competitive pricing
|
Other terms | Delivery | 20-30 days |
Packing | Standard or as per customer's specific requirements |
Price | FOB TIANJIN XINGGANG PORT |
Type of shipping | By sea, by air, by train, by truck, by international express and etc. |
payment | T/T |
2. RELATED PRODUCT
Camshaft and Crankshaft; | Plunger ,Nozzle and delivery valve |
Cylinder block, Cylinder head, cylinder liner, | Cylinder head/bonnet/gasket/bolt/nut/wrench |
Piston, Piston ring/pin | Main bearing housing, Main bearing |
Valve, Valve spring/guide/seat /spring seat/collet/push rod/tappet /Needle valve spindle |
Rocker arm//bolt /seat /seat stub /seat shaft | Fuel injection/pump; Oil pump/rotor |
Air filter/element; Fuel filter/element | Fuel tank,/ cap; Water tank,/ cap |
Balancing shaft/gear; Starting shaft/gear/handle | Dipsticks; Silencer; Gear, Bearing, Flywheel |
Connecting rod, C rod bushing/ bearing/Bolt | Intake and exhaust pipe/pipe gasket |
3. MODEL Single cylinder | JD | 018,33,38,108,118,1105,1110,1115,1125,1130,1133. |
KM | 130,138,160,173,186. |
CF | 22,25,118,139,195,1100,1105,1110,1115,1125,1130. |
L | 12,18,22,24,26,28,32. |
EM | 170,175,176,180,185,190. |
S | 195,1100,1105,1110,1115,1125. |
R | 170,170A,175A,,180,180A,185,190,195,1115. |
ZH | 1105,1110,1115,1120,1125,1130. |
LD | 24,28,32,130,138,160,173,186,1105,1110,1115. |
ZS | 195,1100,1105,1110,1115,1120,1125,1130. |
SF | 24,148,168,188,1105,1115. |
SD | 1100,1105,1110,1115,TC118,TC128. |
Multi-cylinder | | JD,QC,DFH,295,2100,2105,2108,3100.480,485,490,495,4100,4105, 4102,4110,4115,6115,6105. |
4. COMPANY PROFILEOur company is established in 1996 and located in China's largest base of diesel engine parts. We're a major agency by agreement for CYPR FYAN HB XINYA SUZHONG HEYANG ect.
The company has been exporting these diesel engine parts to India Vietnam, Indonesia, Burma ect. In African countries' market we gain the good reputation for good quality/ price and best service.
We also export other agricultural machine like Disk Mill, Meat Mincer, Oil Expeller, Rice Mill and related spare parts.
5. WHY CHOOSE US
1.standard design makes it easy to choose implements;
2.Shorted delivery time /good shipping company
3. The payment term: TT/LC are all available
4. Professional support over many kinds of engines in Price, Quality and Customer requirements.
5. Can offer more complete engine spare parts than others.
6. Can offer competitive price, which lower than the customer get from the factory directly.
7. Various packing options and the ability to develop new models according to customers' requirements.
8. If customers need side-line range of product, we also can help you export if we can.
6. DELIVERY TIME
| time |
20-30 days after get deposit by T/T
|
| material |
carton box and wooden box
|
| way |
by sea and by air or by express company |
Gaoyang County Tian Hong General-Purpose Machinery Spare Parts Factory was established in 1996. It integrates the R&D, production and sale of rocker arm assy and starting handle. The taihong brand rocker arm assy is famous is south Asia and Africa market.
We establish our exported departement in 2004. Specially exported all single cylinder diesel engines spare parts, diesel engine. Model R175A S195 S1100 ZS1105 S1110 S1115 ZH1105 ZH1100 ZH1115. CF1125 CF1130 JD300 L28 L32 GN12 and so on. We also exported some agricultral machine, such as disk mill.,
Model FFC 15 FFC23 FFC37 FFC45, meat mincer oil expeller ect
Our company located in the biggest diesel engine spare parts base. We ensure the competitve price on the good quality. We also have a good cooperation of China famous spare parts factory, such as the CYPR FAYN piston ring factory.
The HB XINYA nozzle factory and other big factory who supply spare parts for famouse diesel engine factory. During a few years developing, we come into
Our own managment mode...
Our group is responsible for customers. Pay good attation on every order. Our carfully work is approved by our customers. Relay on our experience and machinery spare parts knowleage. We alreay sign long-stable s/c with so many importer who from Myanmar., Vietnam, srilanka, India, Bangladesh. Africa country such as Sudan, Kenya, Nigeria and so on.
Welcome to cooperate with us, we belive our group will be win-win cooperation
