Zhzy-V3d-Wheel Alignment

Zhzy-V3d-Wheel Alignment
Price: US $ 2680-2800/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: ZHZY-V3D-300M
Communication Mode: Infrared Wireless Communication
Condition: New

Product Description

Model: V3D -ZHZY300M vehicle four wheel alignment instrument; origin: Zhuhai: registered trademark: Zhuhai Richstar (FOSTAR-300M), the appearance of the product pictures are as follows: (red color)
(product is in kind real picture)

The 1. product is different from the main column by Aluminum Alloy was tall. The cabinet adopts movable column height adjustable chassis, convenient fixed height; the camera uses SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual software algorithm technology, simple operation, fast read data; 3D dynamic image display operating guidelines guide roll compensation, the amount of operation; short distance micro cart, wheelbase and track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular calibration; Aluminum Alloy angle disc facilitate inspection direction based parameters and the front wheel angle and other parameters; super database, free for a year to update the database file at a time; the products by ISO quality system and the European CE safety certification.
2. aluminum alloy beams are treated by full surface oxidation. The assembly consists of two cameras, a light plate and a lens system. The columns are manually mounted and adjustable at different heights.

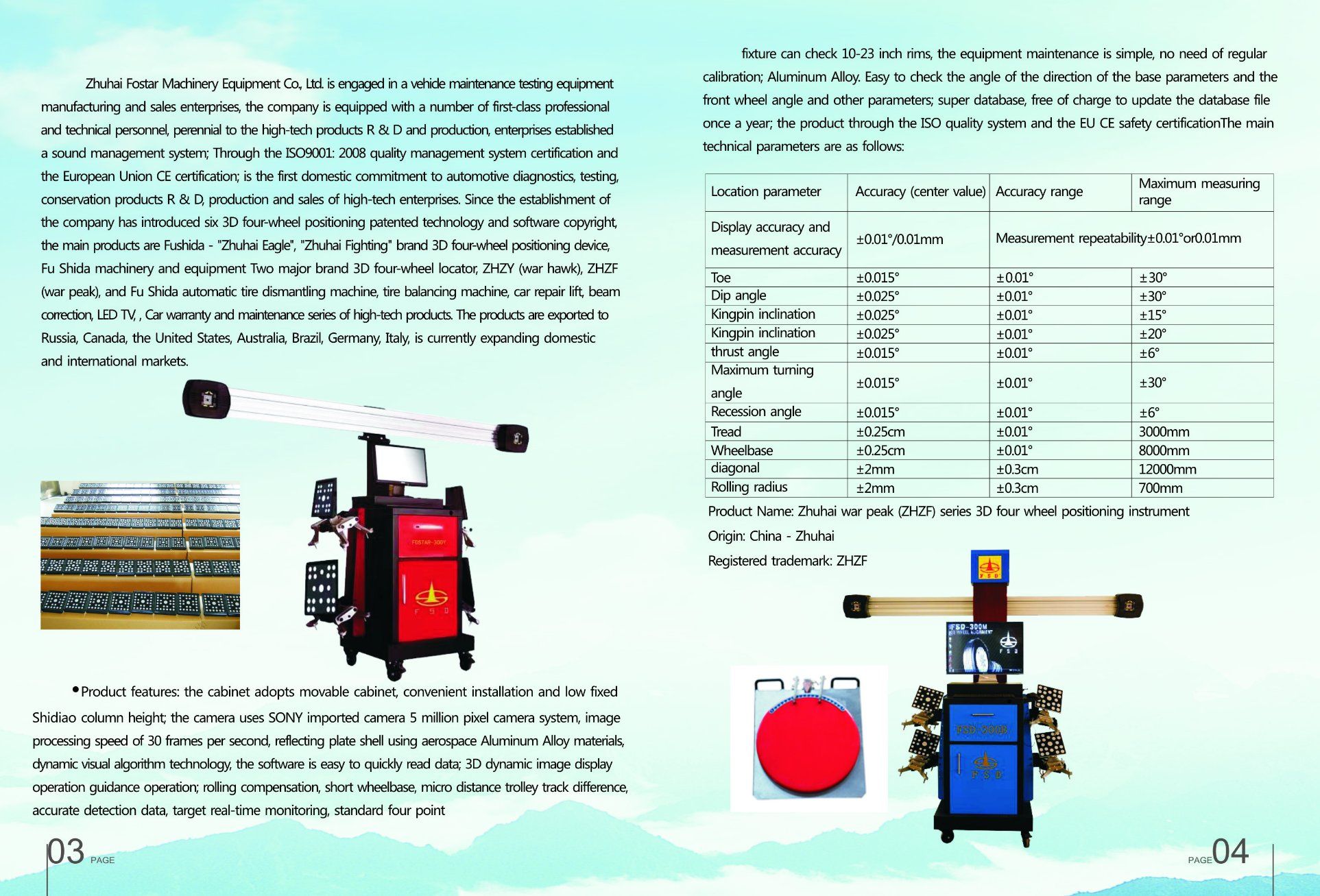

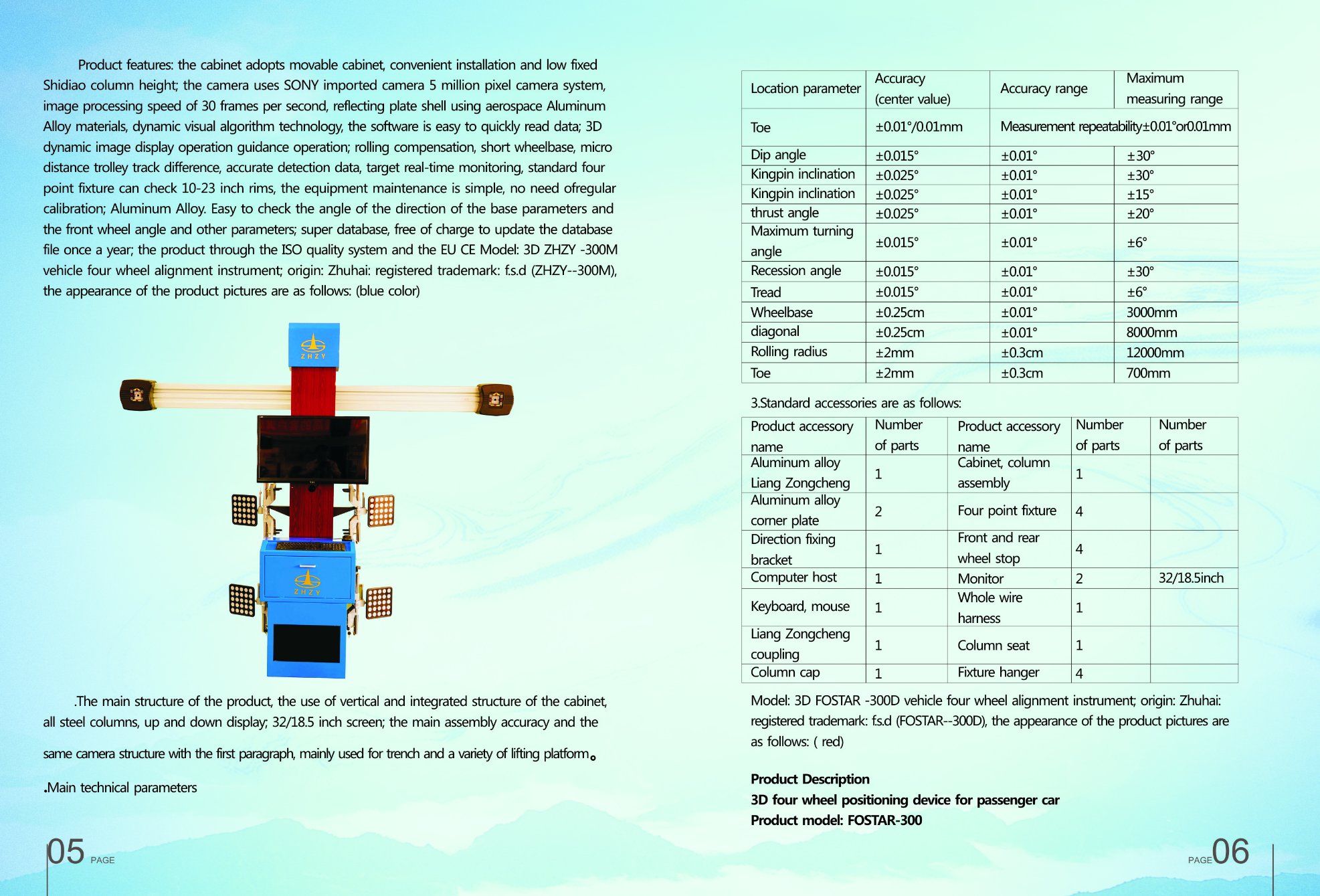

3. main technical parameters of products
Location parameterAccuracy (center value)Accuracy rangeMaximum measuring range
Display accuracy and measurement accuracy±0.01°/0.01mmMeasurement repeatability±0.01°or0.01mm
Toe±0.015°±0.01°±30°
Dip angle±0.025°±0.01°±30°
Kingpin inclination±0.025°±0.01°±15°
Kingpin inclination±0.025°±0.01°±20°
thrust angle±0.015°±0.01°±6°
Maximum turning angle±0.015°±0.01°±30°
Recession angle±0.015°±0.01°±6°
Tread±0.25cm±0.01°3000mm
Wheelbase±0.25cm±0.01°8000mm
diagonal±2mm±0.3cm12000mm
Rolling radius±2mm±0.3cm700mm
4. Standard accessories are as follows:
Product accessory nameNumber of partsProduct accessory nameNumber of partsRemarks
Aluminum alloy Liang Zongcheng1Cabinet, column assembly1
Aluminum alloy corner plate2Four point fixture4
Direction fixing bracket1Front and rear wheel stop4
Computer host1Monitor119"
Keyboard, mouse1Whole wire harness1
Liang Zongcheng coupling1Column seat1
Column cap1Fixture hanger4
5 main features of the product

0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed

0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;

0.3. Measurement accuracy in the industry first-class;

0.4. Software supports a variety of reflective patterns;

0.5. The product has passed ISO quality system certification and export CE certification;

0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do

0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function

0.8. The software is easy to operate, easy to use, intuitive 3D display

0.9. National UNPROFOR, remote service system

10. All over the country are equipped with after-sales service outlets, remote technical support

11. Regular return visit system of products, continuous innovation, once a year free update data packets

12. The product is specially designed for the drainage design. It is convenient to check the data

13) free training staff14).Dynamic calculation of the body parameters, not affected by the lifting machine

15. Automatic calculation of body parameters and rolling compensation body parameters

16. Software intuitive response to the four round of the condition and need to solve the problem of repair
