ZHZY-300M
- 3D wheel alignment
2.Install Data
- Easy maintenance
- Low operational cost
Key Features:
Professional, Stable, Durable, Affordable
Professional: Dual camera system (imported from Japan)
Dual-core CPU computer system
Waterproof targets
24 inch clamps
Calibration Free
Up t0 120cm lifting range
Auto lift platform compensation
Auto vehicle compensation
Super-big vehicle database covering over 20 000 models.
Height adjustable
Durable: Calibration Free
Long life hi-speed camera system
12 months warranty
Multilingual software-including English, German, Polish, Spanish, Português .
3D camera frame from Germany, lens 20'' from Japan for 5m length car body test high accurate.
-
- Stability in operations
- CE ISO
- charger : 220v (50 /60 Hz) ± 10% output. Better with voltage regulator or UPS
- working temperature: 0~40C
- Relative humidity: 10~85% without dew
- Distance between camera to target : 500mm , between camera to lifter: 800mm, between camera to
- turntable : 2700 ~2800mm
- Power consumption: 0.5kw needs to connect with earthing conductor over 1.5m
- Anti-rust , anti-magnetic parts, getting rid of direct solar radiation.
Specification
| Database: | |
| Windows system: | Windows 7 operation system. |
Product introduction
:,,7075.
Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:
The main technical parameters are as follows:
Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:The installation range: 1.6--3.1 meters.
Relative humidity: 3550 degree.
Relative humidity: less than or equal to 85%.
Optional: Black reflector, interchangeable reflector, small front big reflector.
The standard reflector size as reflector pattern before and after.
This machine uses high speed import SONY camera, 5 million phase element, the camera working speed to 30 out of phase speed work per second. Reflector panels have a variety of patterns, software vision calibration accuracy: 0.02mm.
A calibration before leaving the factory, no need to re calibrate. Cart time only takes 3 seconds.

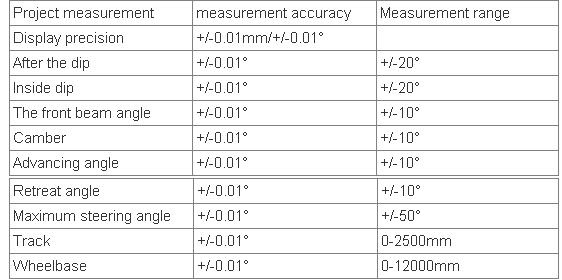

The measurement range of the precision of positioning parameters (center value)
Detailed product description
1, measurement of the fastest four wheel positioning (with cart interface) cart process 3 seconds, after the stop time is only one second 0.2 The whole time 0.2 seconds to update the data once
2, the most accurate measurement of the four round of the positioning of the instrument
Accuracy up to the standard of the international brand, hope that professional users can provide positioning service for the intermediate vehicle
3, the best domestic repeat of the 3D four round of the round of the number of repeated measurements to achieve the international top brands (put two pictures, is the value of the two measurement)
4, adjust the steering wheel thrust line positioning principle of convenient efficient and convenient put the steering wheel (two)
Picture, a steering wheel slanting, one is right
5, a comprehensive measurement of camber angle toe kingpin caster kingpin inclination tread wheelbase diagonal tire rolling radius (a group of pictures screenshot)
6, lifting machine is not on the impact of uneven (schematic)
7, after measuring the stability of the most far away from the camera 8 - 7 meters still can be measured (pictures, put away after the)
8, (,)
8, lifting adjustment can be under the vehicle lifting the state claim easily the camber of the vehicle solution and inclination of adjustment (screenshot, lifting raised)
9, the unit of arbitrary switching degree of sub millimeter per cent between arbitrary switching to facilitate a variety of operating habits (screenshot, before and after conversion)
10, the static measurement function convenient but the accuracy is not high, only for in the measurement requirements of the vehicle, nor has the function of adjust the direction of the
11, two can locate the function only needs to hang the two to be able to locate the dish to be convenient and quick, but is unable to swing the steering wheel
12, the latest volume of the database to meet the needs of various regions of the country to use the device (database image)
13, up to the choice of the target before the target (a variety of target can choose or customize)
14, Epad PAD can sync, 1 easily shunting save labor cost '' to
15, the public Audi Passat special adjustment software, to facilitate the right to send (synchronized picture: computer and)
16, the use of background equipment management, you can record the daily use of the device (display the contents of the document)
