Zhme Cable Pulling Winch with Sythetic Rope E12500s

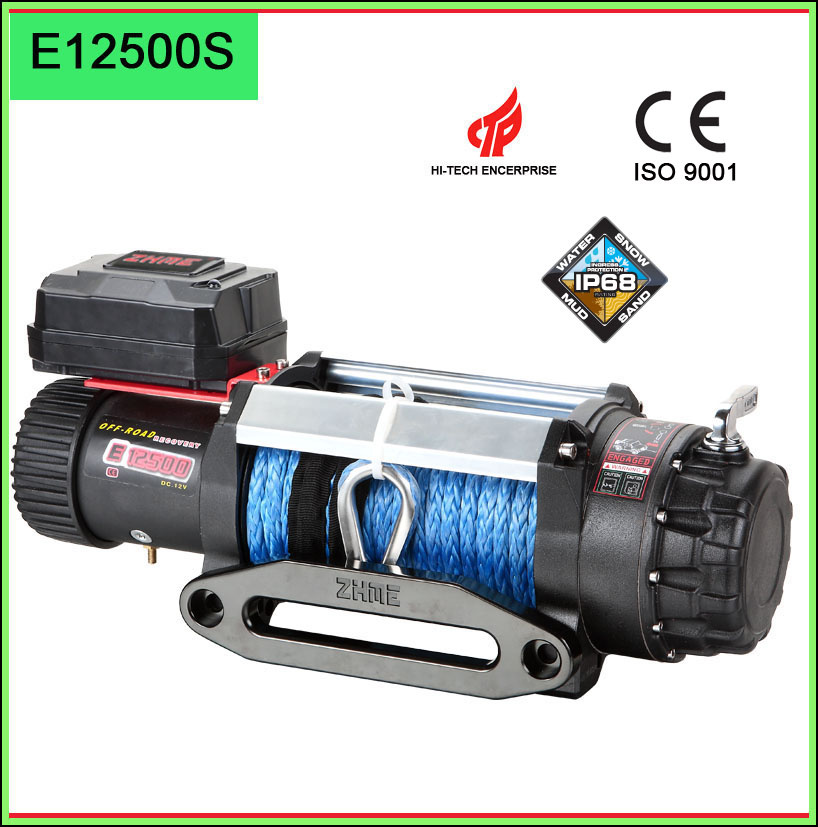

Name: Zhme Cable Pulling Winch with Sythetic Rope E12500s
Brand: ibuyautoparts.com
SKU: 740708435
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	15/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Auto winch E 12500 S
Rated line pull: 12500lbs (5670 kgs) Single line.

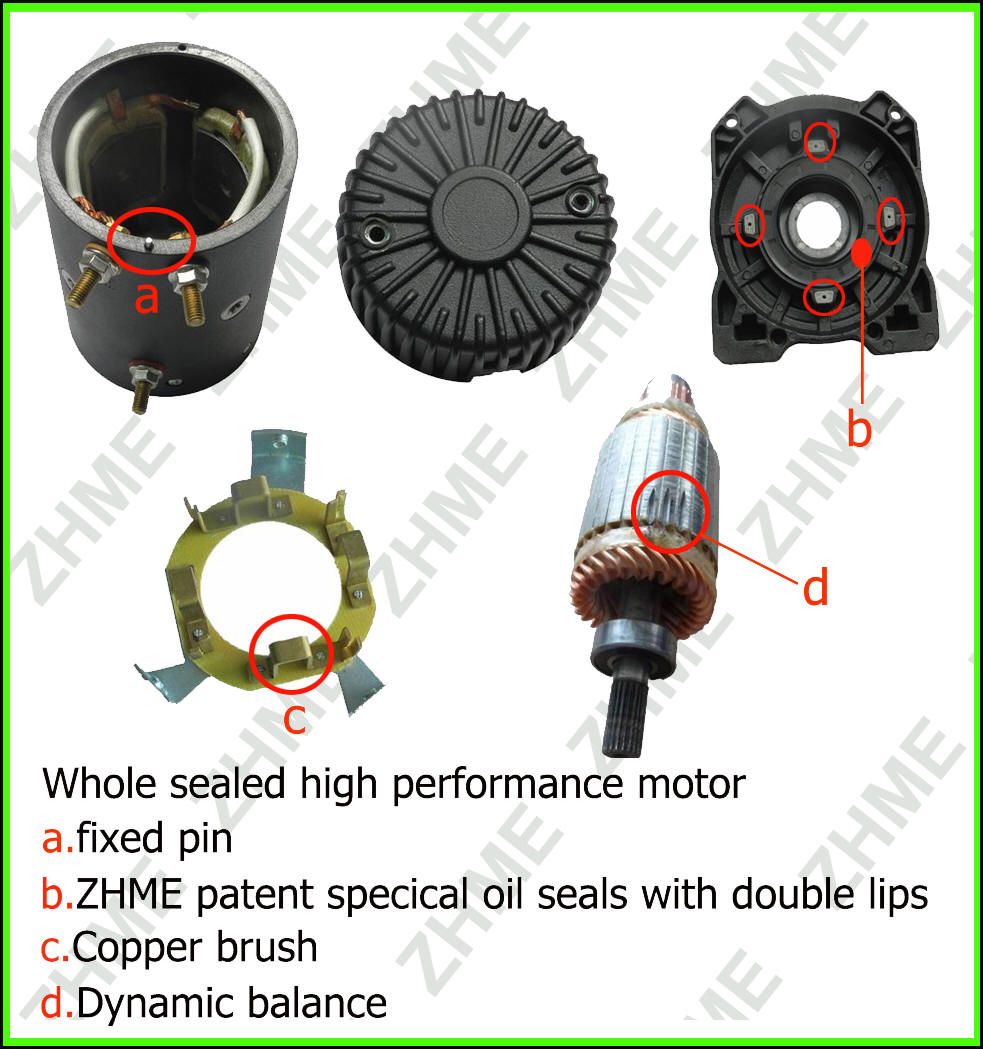

Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 262: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 11mmX24m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)

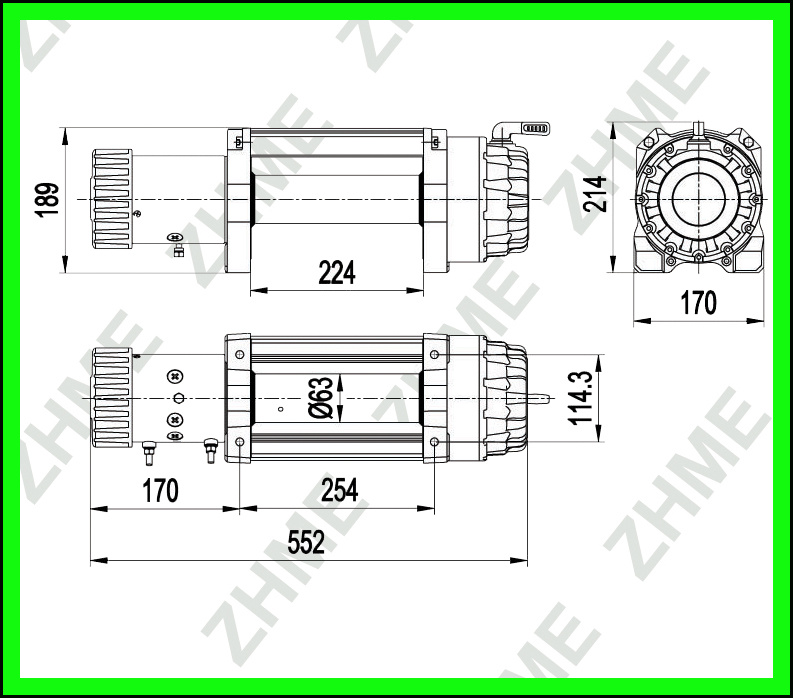

Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, pallets Optional

PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	2000	4000	8000	10000	12500
	Line pull	Kgs	0	907	1814	3629	4536	5670
	Line speed	FPM	25.6	12.5	8.9	7.3	6.4	6.1
	Line speed	MPM	7.8	3.8	2.72	2.24	1.96	1.85
	Motor current	Amps	65	100	130	200	230	290

Line pull and cable capacity	Layer of cable		1	2	3	4
	Rated line pull per layer	Lbs	12500	10750	9460	8040
	Rated line pull per layer	Kgs	5670	4876	4290	3647
	Cable capacity per layer	Ft.	15.75	36.4	61.3	85.3
	Cable capacity per layer	M	4.8	11.1	18.7	26

Prod Model:	E12500S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Finishing:	Black Textured
Brand:	Zhme
Certification:	CE
Type:	Electric Winch

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
