Yw Series Hydraulic Drum Brake with Top Quality
Price: |
US $ 1000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1Set |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

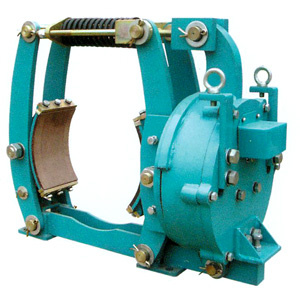

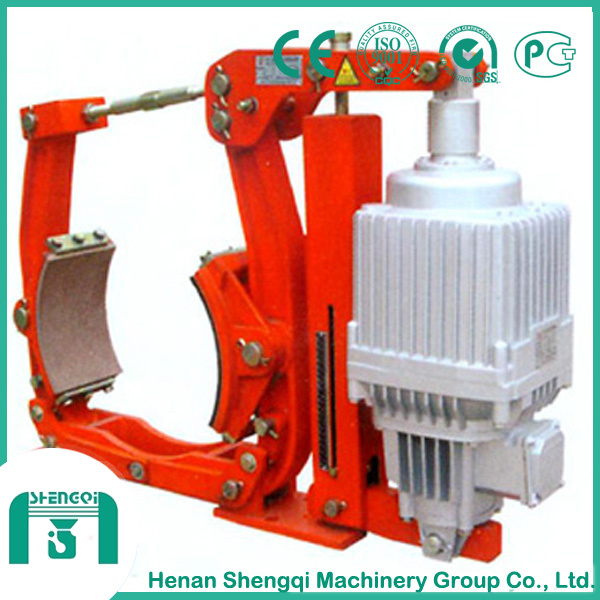

YW Series Hydraulic Drum Brake with Top Quality
Name: Hydraulic brake, Hydraulic drums brake, disc brake. Thruster brake.
Application: Applied in Trolley, Gantry crane, Overhead cranes
Advantages: Easy maintenance, High performance, Robust design, Horizontal arrangement possible
Technical data:
Brake acc. To DIN 15435
Adjustable brake torque
Brake torque 40-12500 Nm
Brake drum diameter160-800 mm
Weight 30 to 310 Kg
Brake Type | Thrustor Type | torque(Nm) | clearanceε | Weight(kg) |
YWZ4 |
YWZ4-100/E23 | Ed23/5 | 40 | 0.6 | 21 |
YWZ4-100/E30 | Ed30/5 | 100 | 24 |
YWZ4-150/E23 | Ed23/5 | 100 | 0.6 | 25 |
YWZ4-150/E30 | Ed30/5 | 120 | 29 |
YWZ4-200/E23 | Ed23/5 | 200 | 0.7 | 31 |
YWZ4-200/E30 | Ed30/5 | 230 | 34 |
YWZ4-300/E30 | Ed30/5 | 320 | 0.7 | 65 |
YWZ4-300/E50 | Ed50/6 | 630 | 78 |
YWZ4-300/E80 | Ed80/6 | 750 | 79 |
YWZ4-400/E50 | Ed50/6 | 1000 | 0.8 | 128 |
YWZ4-400/E80 | Ed80/6 | 1600 | 140 |
YWZ4-400/E121 | Ed121/6 | 2000 | 155 |
YWZ4-500/E121 | Ed121/6 | 2500 | 0.8 | 210 |
YWZ4-500/E201 | Ed201/6 | 3600 |
YWZ4-600/E121 | Ed121/6 | 3200 | 0.8 | 390 |
YWZ4-600/E201 | Ed201/6 | 5000 |
YWZ4-700/E201 | Ed201/6 | 8000 | 0.8 | 465 |
YWZ4-700/E301 | Ed301/12 | 8650 | 466 |
YWZ4-800/E301 | Ed301/12 | 12500 | 0.9 | 885 |
YWZ9 |
YWZ9-160/E23 | Ed23/5 | 80-160 | 0.6 | 32.5 |
YWZ9-200/E23 | Ed23/5 | 112-200 | 35 |
YWZ9-200/E30 | Ed30/5 | 140-315 | 0.6 | 38 |
YWZ9-250/E23 | Ed23/5 | 140-250 | 42 |
YWZ9-250/E30 | Ed30/5 | 180-315 | 0.7 | 45 |
YWZ9-250/E50 | Ed50/6 | 315-500 | 50 |
YWZ9-300/E23 | Ed23/5 | 180-280 | 0.7 | 70 |
YWZ9-300/E30 | Ed30/5 | 250-400 | 70 |
YWZ9-300/E50 | Ed50/6 | 400-630 | 75 |
YWZ9-300/E80 | Ed80/6 | 630-1000 | 0.8 | 80 |
YWZ9-315/E23 | Ed23/5 | 180-280 | 70 |
YWZ9-315/E30 | Ed30/5 | 250-400 | 70 |
YWZ9-315/E50 | Ed50/6 | 400-630 | 0.8 | 75 |
YWZ9-315/E80 | Ed80/6 | 630-1000 | 80 |
YWZ9-400/E30 | Ed30/5 | 200-470 | 0.8 | 88 |
YWZ9-400/E50 | Ed50/6 | 400-800 | 95 |
YWZ9-400/E80 | Ed80/6 | 630-1250 | 0.8 | 110 |
YWZ9-400/E121 | Ed121/6 | 1000-2000 | 125 |
YWZ9-500/E50 | Ed50/6 | 450-1000 | 0.9 | 175 |
YWZ9-5OO/E8O | Ed80/6 | 800-1600 | 0.6 |
YWZ9-500/E121 | Ed121/6 | 1120-2500 | 190 |
YWZ9-500/E201 | Ed201/6 | 2000-4000 | 0.6 |
YWZ9-600/E121 | Ed121/6 | 1800-2800 |
|
YWZ9-600/E201 | Ed201/6 | 2500-4500 | 0.7 |
|
YWZ9-600/E301 | Ed301/6 | 4000-6500 | 305 |
YWZ9-630/E121 | Ed121/6 | 1800-3150 | 0.7 | 310 |
YWZ9-630/E201 | Ed201/6 | 2500-5000 |
|
YWZ9-630/E301 | Ed301/6 | 4000-7100 | 315 |
YWZ9-700/E201 | Ed201/6 | 2500-5600 | 0.8 | 420 |
YWZ9-700/E301 | Ed301/6 | 4000-8000 | 425 |
YWZ9-710/E201 | Ed201/6 | 2500-5600 | 420 |
YWZ9-710/E301 | Ed301/6 | 4000-8000 | 0.8 | 425 |
YWZ9-800/E301/12 | Ed301/12 | 10500-12500 | 545 |
YWZ10 |
YWZ10-200/E23 | Ed23/5 | 80-130 | 0.8 | 55 |
YWZ10-200/E30 | Ed30/5 | 80-200 | 59 |
YWZ10-250/E23 | Ed23/5 | 100-170 | 0.8 | 69 |
YWZ10-250/E30 | Ed30/5 | 100-240 | 72 |
YWZ10-250/E50 | Ed50/6 | 220-500 | 0.9 | 73 |
YWZ10-315/E30 | Ed30/5 | 230-280 | 1.2 | 105 |
YWZ10-315/E50 | Ed50/6 | 430-550 | 108 |
YWZ10-315/E80 | Ed80/6 | 430-1050 | 110 |
YWZ10-400/E50 | Ed50/6 | 510-650 | 1.3 | 175 |
YWZ10-400/E80 | Ed80/6 | 510-1100 | 180 |
YWZ10-400/E121 | Ed121/6 | 820-1800 | 197 |
YWZ10-500/E80 | Ed80/6 | 970-1200 | 1.5 | 200 |
YWZ10-500/E121 | Ed121/6 | 970-2000 | 213 |
YWZ10-500/E201 | Ed201/6 | 1500-3200 | 213 |
YWZ10-630/E121 | Ed121/6 | 1200-2100 | 1.7 | 434 |
YWZ10-630/E201 | Ed201/6 | 2000-3600 | 434 |
YWZ10-630/E301 | Ed301/6 | 2800-5300 | 435 |
YWZ10-630/E301/12 | Ed301/12 | 3500-7000 | 2 | 444 |
YWZ10-710/E201 | Ed201/6 | 2300-4000 | 18 | 624 |
YWZ10-710/E301 | Ed301/6 | 3100-6000 | 624 |
YWZ10-710/E301/12 | Ed301/12 | 4000-8000 | 2 | 684 |
YWZ10-800/E301/12 | Ed301/12 | 5300-9000 | 2 | 700 |
YW Type |
YW160-E220 | Ed23/5 | 80-160 | 1.0 | 32.5 |
YW200-E220 | Ed23/5 | 100-200 | 1.0 | 35 |
YW200-E300 | Ed30/5 | 150-335 | 38 |
YW250-E220 | Ed23/5 | 125-250 | 1.0 | 45 |
YW250-E300 | Ed30/5 | 180-350 | 48 |
YW250-E500 | Ed50/6 | 300-550 | 53 |
YW250-E800 | Ed80/6 | 300-970 | 56 |
YW315-E220 | Ed23/5 | 150-320 | 1.25 | 70 |
YW315-E300 | Ed30/5 | 200-450 |
YW315-E500 | Ed50/6 | 315-710 | 75 |
YW315-E800 | Ed80/6 | 630-1240 | 80 |
YW400-E300 | Ed30/5 | 200-470 | 1.25 | 138 |
YW400-E500 | Ed50/6 | 400-800 |
YW400-E800 | Ed80/6 | 630-1250 | 140 |
YW400-E1250 | Ed121/6 | 1000-2240 | 155 |
YW500-E500 | Ed50/6 | 450-1235 | 1.25 | 176 |
YW500-E800 | Ed80/6 | 800-1600 | 176 |
YW500-E1250 | Ed121/6 | 1250-2500 | 204 |
YW500-E2000 | Ed201/6 | 2000^000 | 204 |
YW630-E1250 | Ed121/6 | 1600-3150 | 1.6 | 310 |
YW630-E2000 | Ed201/6 | 2500-5000 | 310 |
YW630-E3000 | Ed301/6 | 3550-7100 | 315 |
YW710-E1250 | Ed121/6 | 1000-3250 | 1.6 | 435 |
YW710-E2000 | Ed201/6 | 2500-5600 |
YW710-E3000 | Ed301/6 | 4000-8000 | 441 |
YW800-E3000 | Ed301/12 | 12500 | 2.0 | 600 |
Prod Model: |
YWZ4, YWZ9, YWZ10, YWZ13 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Braking Type: |
ED Thrustor |
Braking Torque: |
up to 12500nm |
Brake Drum Diameter: |
160-800 mm |
Brake Acc: |
DIN 15435 |
Weight: |
30-300kg |
Painting Color: |
as Demand |
Power Supply: |
as Demand |
Product Name: |
Hydraulic Drum Brake |
Hydraulic Drum Brake: |
Hydraulic Drum Brake |
Type: |
Brake System |
Material: |
Steel |
Certification: |
SGS |
Position: |
Motor |
Henan Shengqi Machinery Group Co., Ltd is established in 1988. Now it has been in existence for there decades. This time has seen it achieve rapid growth, to become one of the leading manufacturers of Overhead Traveling Crane, Gantry Crane, and Jib Crane, Electric Hoists in China. It now has total asset 54 million US$, with total area 389000m2.
SHENGQI has also been certified as an ISO 9001-2000 company, and follows the highest quality standards. Every crane manufactured by SHENGQI is designed to meet individual customer requirements and work in a large variety of Industries across China and abroad. Cranes manufactured at our factory vary in terms of capacity and design. From five tonnage cranes meant for general duty, to 300 ton cranes which are specially designed as per client specifications. Currently we have the capability to manufacture cranes up to 500 tons.
Our Crane are widely use in the field of Industry, Foundry, Nuclear power, aircraft, automotive, shipbuilding, railway, construction, mining, power insdustry, paper industry, Petro etc, , ,
Ous Sales Amounts reaches 0.7 billion RMB in the year of 2015, and our cranes are widely sold to abt 30 countries, such as Americian, Japan, Korea, Vietnam, India, Indonesia, Britshi, Finland, Argentina, Canada, Pakistan, Thailand etc...
Shengqi is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.
-Producing durable products that last a long time and perform on the job, exactly as promised.
-Responding to inquiries and requests faster-and with a greater sense of urgencyl
-Embracing your challenges and building solutions to resolve even the most complex problems.
-Meeting delivery dates, providing support after the sale, and doing exactly what we promised.
-Being loyal and committed to your success.
