YUTE yuyao factory sae j30r7 iso/ts16949 diesel fuel hose
Product DescriptionApplications :Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines
Detail Description:1 | Application | Convey gasiline,diesel,lubricating et. |
2 | Size Range | 1/8-1"(3.2-25.4mm) |
3 | Tube | Oil-,fue-resistant synthetic rubber compound |
4 | Reinforcement: | High tensile braided fiber |
5 | Cover | Suitable oil-,ozone-,and heat-resistant synthetic rubber compound |
6 | Standard | SAE J30R7 |
7 | Working Temperature | -40ºC to 125 ºC |
8 | Working Pressure | 300 Psi/ 20 Bar |
9 | Burst Pressure | 1200 Psi/ 80 Bar |
10 | Certification | ISO/TS16949:2009 |
11 | Color | Black |
12 | Length | 20m,50m,100m |
13 | Packing | By air or by sea |
Sizes and technical parameters :No. | I.D | O.D | W.P | B.P |
inch | mm | Tolerance (mm) | inch | mm | Tolerance (mm) | Bar | PSI | Bar | PSI |
1 | 1/8 | 3.2 | ±0.3 | 23/64 | 9 | ±0.3 | 20 | 300 | 80 | 1200 |
2 | 5/32 | 4 | ±0.3 | 25/64 | 10 | ±0.3 | 20 | 300 | 80 | 1200 |
3 | 3/16 | 4.8 | ±0.3 | 7/16 | 11 | ±0.3 | 20 | 300 | 80 | 1200 |
4 | 1/4 | 6.3 | ±0.3 | 1/2 | 12.7 | ±0.4 | 20 | 300 | 80 | 1200 |
5 | 5/16 | 7.9 | ±0.4 | 35/64 | 14 | ±0.5 | 20 | 300 | 80 | 1200 |
6 | 3/8 | 9.5 | ±0.4 | 5/8 | 16 | ±0.5 | 20 | 300 | 80 | 1200 |
7 | 15/32 | 12 | ±0.4 | 3/4 | 19 | ±0.5 | 20 | 300 | 80 | 1200 |
8 | 1/2 | 12.7 | ±0.5 | 25/32 | 20 | ±0.6 | 20 | 300 | 80 | 1200 |
9 | 5/8 | 16 | ±0.5 | 61/64 | 24 | ±0.6 | 10 | 150 | 40 | 600 |
10 | 3/4 | 19 | ±0.6 | 1-9/64 | 28.8 | ±0.8 | 10 | 150 | 40 | 600 |
11 | 1 | 25.4 | ±0.8 | 1-3/8 | 35 | ±1 | 10 | 150 | 40 | 600 |

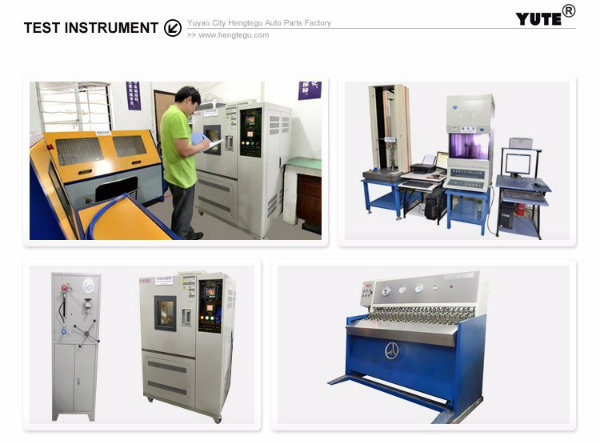

Product Test and Certification The factory inspection:100% Pressure Inspection100% Throughput Inspection100% Pass and Stop Inspection100% Length,Surface Inspection100% Internal Gassing clean
Certificate: ISO/TS16949:2009, AMECA, ROHS.

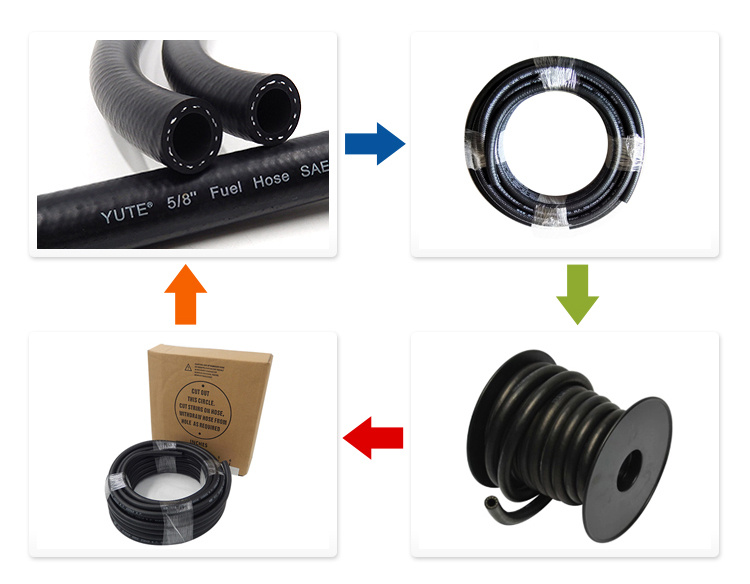

Packing and Shipping
1,Conventional core is 100 meters.Press the length of the rubber core cut, PVC coating, into the woven bag or carton, playing the tray.
2,According to customer requirements packaging.Company InformationYUTE specializes in rubber hose when it was founded. It's a fast growing company, the recognized Leader In Rubber Hose field.
CEO Mr. Zhang Fang Hua is a senior engineer, professional in rubber's formula. Our professional and effective group will make every customer benefit from the highest levels of quality, service and value.
YUTE good product, you deserve it !
More information visit
www.hengtegu.com
http://hengtegu.en.alibaba.com
http://auto-rubber-hose.com
Trade ShowsAutomechanika Shanghai
AAPEX Show
Automechanika Frankfurt

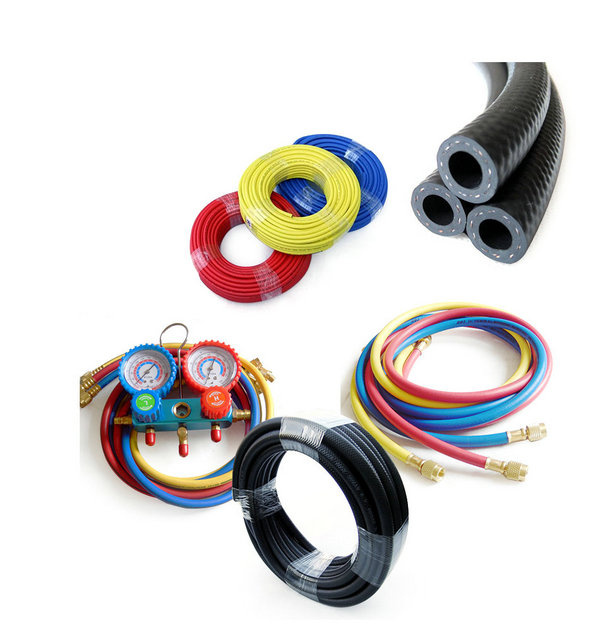

Related ProductsAir Brake Hose, Hydraulic Break Hose, Transmission Oil Cooler Hose,
Rubber Air Hose, Epdm Rubber Hose,Charging Hose
Our Services1.OEM Manufacturing
2.Accept sample order
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in neutral PVC film and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It's located in Ningbo, Zhejiang Province. The transportation is convenient, 40 minutes away from the Hangzhou International Airport and one and a half hours away from Ningbo shipping port. As a manufacturing enterprise, we are engaged in the research and development of rubber hose's design, manufacturer and sales. We have been trying our best to invest in our people, technology and resources to make it easier for you to do business with us.
Now the factory owns sets of advanced cold rubber compound feed production lines and completed testing equipments. Our factory have passed the ISO/TS16949 quality management system certification, the products' quality meets SAE & DIN standard.
Main products: Fuel hose, air brake hose, hydraulic brake hose, power steering hose, rubber air hose, rubber air hose assembly and refrigerant charging hose, are widely used in the auto, engineering machinery, HAVC and other industries. Best quality and competitive price, we will try our best to provide you with good service. You are recognized for every dollar you spend with us.
Our business philosophy: Unitive and harmonious, hardworking and enterprising, regard technology as the core, offer cost-effective products to serve customers.
