Yute Rubber Hose 3/8 Inch SAE 30 R7 Oil Hose

Name: Yute Rubber Hose 3/8 Inch SAE 30 R7 Oil Hose
Brand: ibuyautoparts.com
SKU: 785155015
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	US $ 1.92-2.37/Meter
Trade Terms:	FOB,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Yute Rubber Hose 3/8 Inch SAE 30 R7 Oil Hose

Applications :
Design to transport gasoline, E85 gasoline, diesel , engine oil, kerosene, hydraulic oil and lubricating oil.It's widely used in engineering machinery, automobile, internal combustion engine fuel system.

sizes and performance parameters :

NO	I.D		Refer to O.D		Working pressure		Burst pressure		approximate Weight
NO	(inch)	(mm)	(inch)	(mm)	MPa	Psi	MPa	Psi	kg/m	lbs/ft
1	1/8	3.2±0.2	0.35	9±0.3	2.06	300	8.27	1200	0.078	0.12
2	5/32	4±0.2	0.4	10±0.3	2.06	300	8.27	1200	0.092	0.14
3	3/16	4.8±0.2	0.43	11±0.3	2.06	300	8.27	1200	0.108	0.16
4	1/4	6.3±0.3	0.5	12.7±0.3	2.06	300	8.27	1200	0.134	0.2
5	5/16	8.0±0.3	0.56	14±0.3	2.06	300	8.27	1200	0.147	0.22
6	3/8	9.5±0.3	0.63	16±0.4	2.06	300	8.27	1200	0.182	0.27
7	15/32	12±0.3	0.75	19±0.5	2.06	300	8.27	1200	0.238	0.35
8	1/2	12.7±0.4	0.78	20±0.5	2.06	300	8.27	1200	0.262	0.39
9	5/8	16±0.4	0.94	24±0.5	1.03	150	4.12	600	0.351	0.52
10	3/4	19±0.4	1.13	28.8±0.5	1.03	150	4.12	600	0.515	0.77
11	1	25.4±0.5	1.38	35±0.6	1.03	150	4.12	600	0.637	0.95

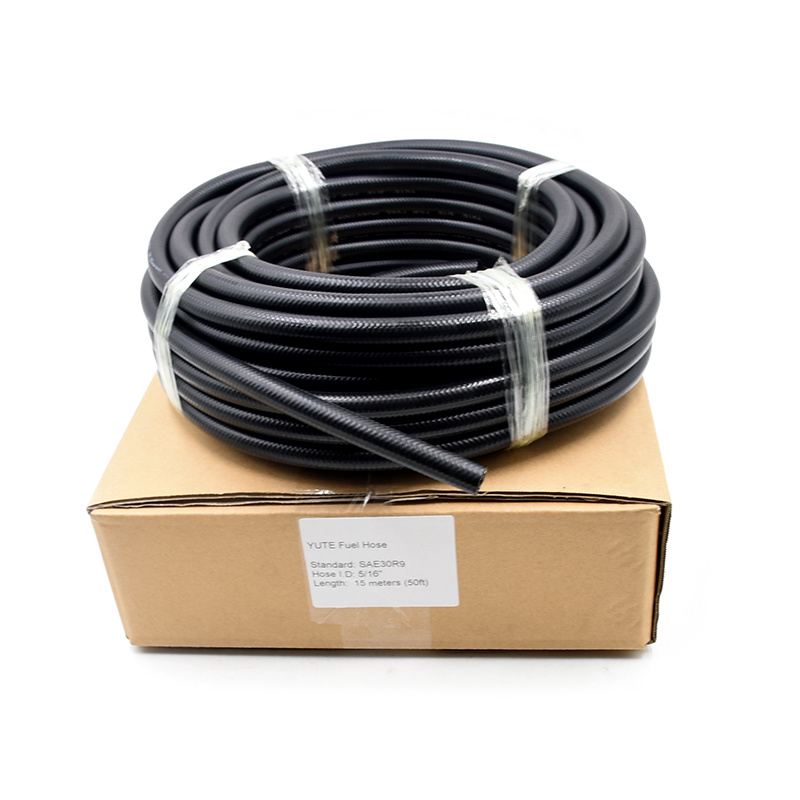

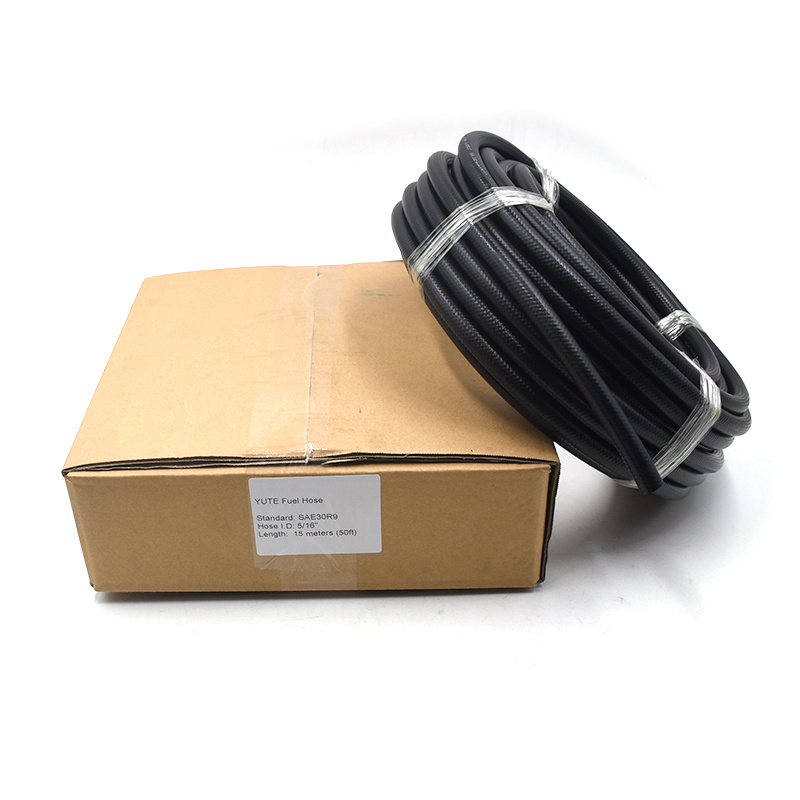

package

certification

Exhibition Show

Dear friend, if you are interested in our products , feel free to contact with me.

Prod Model:	saej30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Western Europe
Product Name:	Oil Hose
Aging Time:	72 H
Working Pressure:	300 Psi
Brust Pressure:	1200 Psi
Length:	20 Meters
Accept OEM Service:	OEM
Delivery Time:	15 Days
Payment:	L/C, T/T, Western Union etc
Size:	Stardard Size
Color:	Black/Red
Fuel:	Gasoline
Body Material:	Aluminium
Component:	Fuel Injection Device
Certification:	RoHS
Stroke:	6 Stroke
Cylinder:	Multi-cylinder

Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It's located in Ningbo, Zhejiang Province. The transportation is convenient, 40 minutes away from the Hangzhou International Airport and one and a half hours away from Ningbo shipping port. As a manufacturing enterprise, we are engaged in the research and development of rubber hose's design, manufacturer and sales. We have been trying our best to invest in our people, technology and resources to make it easier for you to do business with us.

Now the factory owns sets of advanced cold rubber compound feed production lines and completed testing equipments. Our factory have passed the ISO/TS16949 quality management system certification, the products' quality meets SAE & DIN standard.

Main products: Fuel hose, air brake hose, hydraulic brake hose, power steering hose, rubber air hose, rubber air hose assembly and refrigerant charging hose, are widely used in the auto, engineering machinery, HAVC and other industries. Best quality and competitive price, we will try our best to provide you with good service. You are recognized for every dollar you spend with us.

Our business philosophy: Unitive and harmonious, hardworking and enterprising, regard technology as the core, offer cost-effective products to serve customers.
