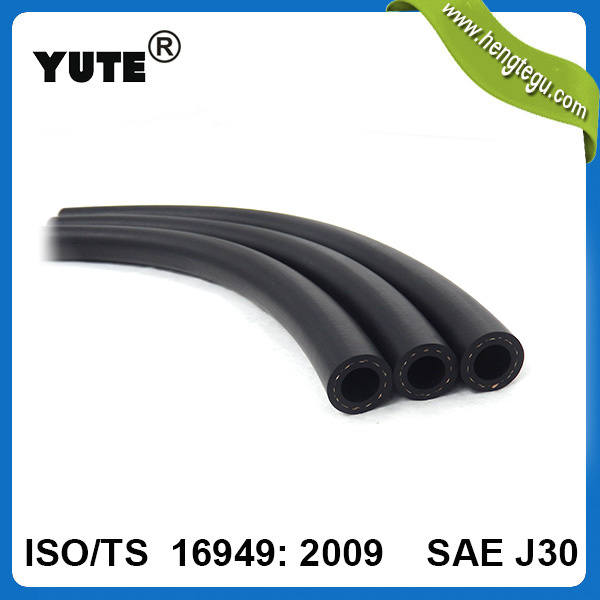

Yute 3/16" SAE J30r7 Oil Rubber Hose with Ts16949

          YUTE 3/16" SAE j30r7 Oil Rubber Hose with TS16949

Applications:
Apply to transporting gasoline,diesel,engine oil and lubricating oil etc.It is widely used in agriculture machinery and engineering machinery .

Construction:
Tube:oil-resistant, low permeation of special rubber formula.
Reinforcement:High tensile braided fiber;
Cover:weather-,aging-resistant with high performance synthetic rubber.
Working temperature:-40~+125ºC, -40 ºF~ +275 ºF

Hose size and technical parameters:

NO	I.D			O.D			W.P		B.P
	inch	mm	Tolerance(mm)	inch	mm	Tolerance(mm)	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.3	23/64	9	±0.3	20	300	80	1200
2	5/32	4	±0.3	25/64	10	±0.3	20	300	80	1200
3	3/16	4.8	±0.3	7/16	11	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	1/2	12.7	±0.4	20	300	80	1200
5	5/16	7.9	±0.4	35/64	14	±0.5	20	300	80	1200
6	3/8	9.5	±0.4	5/8	16	±0.5	20	300	80	1200
7	15/32	12	±0.4	3/4	19	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	25/32	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	61/64	24	±0.6	10	150	40	600
10	3/4	19	±0.6	1-9/64	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	1-3/8	35	±1	10	150	40	600

Packing:
      1.Every 20/25/50/100 meters a roll.
      2.According to customer requirements.
Logistics:
Shipping and Air transport

Certificate:
     ISO/TS 16949:2009.
     SGS
     CE
     RoHS.
Trade Shows:
        Automechanika Shanghai
         AAPEX Show
         Automechanika  Frankfurt
        Kentucky Exposition Center

Our Services

1.   OEM Manufacturing
2. Accept sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and  give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
