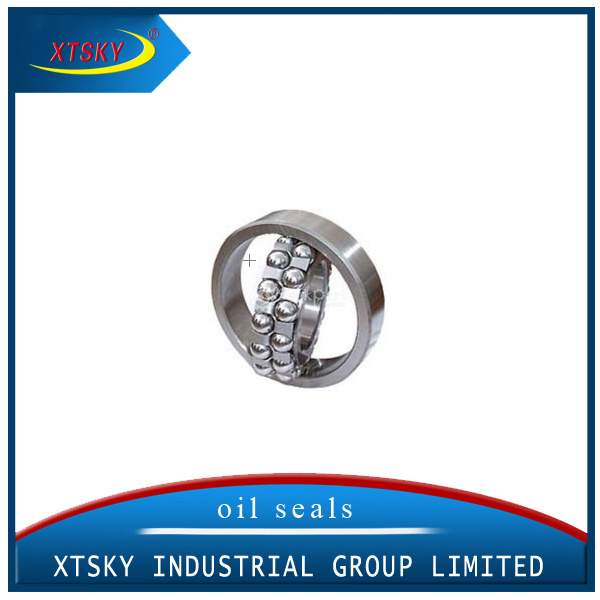

Xtsky Double Row Self-Aligning Ball Bearing (1311)
| Price: |
US $ 2-10/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
1. 2300 series:
2300 2301 2302 2303 2304 2304K |
2314 2315 2315K 2316 2316K 2317 |
2305 2305K 2306 2306K 2307 2307K |
2317K 2318 2318K 2319 2319K 2320 |
2308 2308K 2309 2309K 2310 2310K | 2320K 2321 2322 2322K |
2311 2311K 2312 2312K 2313 2313K |
|
2.2200 series
2200 2201 2202 2203 2204 2204K
2205 2205K 2206 2206K 2207 2207K |
2208 2208K 2209 2209K 2210 2210K |
2211 2211K 2212 2212K 2213 2213K |
2214 2215 2215K 2216 2216K 2217 |
2217K 2218 2218K 2219 2219K 2220 |
2220K 2221 2222 2222K |
3.1300 series
1300 1301 1302 1303 1304 1304K
1305 1305K 1306 1306K 1307 1307K | 1308 1308K 1309 1309K 1310 1310K |
1311 1311K 1312 1312K 1313 1313K | 1314 1315 1315K 1316 1316K 1317 |
1317K 1318 1318K 1319 1319K 1320 | 1320K 1321 1322 1322K |
4.1200 series
1200 1201 1202 1203 1204 1204K |
1205 1205K 1206 1206K 1207 1207K |
1208 1208K 1209 1209K 1210 1210K |
1211 1211K 1212 1212K 1213 1213K |
1214 1215 1215K 1216 1216K 1217 |
1217K 1218 1218K 1219. |
| Cylindrical Bore Bearing No. | Tapered Bore Bearing No. | Boundary Dimensions d (mm) | Boundary Dimensions D (mm) | Boundary Dimensions B (mm) | r (min. ) | Basic Load Rating(KN)Dynamic Cr | Basic Load Rating(KN)Static Cor | Limiting Speed Grease (r/min) | Limiting Speed Oil(r/min) | Weight Kg(pc) Cylindrical Bore | Weight Kg(pc) Tapered Bore |
| 1300 |
| 10 | 35 | 11 | 0.6 | 7.25 | 1.6 | 20000 | 24000 | 0.058 |
|
| 1301 |
| 12 | 37 | 12 | 1 | 9.4 | 2.15 | 18000 | 22000 | 0.067 |
|
| 1302 |
| 15 | 42 | 13 | 1 | 9.55 | 2.3 | 16000 | 20000 | 0.094 |
|
| 1303 |
| 17 | 47 | 14 | 1 | 12.5 | 3.2 | 14000 | 17000 | 0.13 |
|
| 1304 | 1304K | 20 | 52 | 15 | 1.1 | 12.4 | 3.3 | 13000 | 15000 | 0.163 | 0.161 |
| 1305 | 1305K | 25 | 62 | 17 | 1.1 | 18 | 5 | 9900 | 12000 | 0.257 | 0.252 |
| 1306 | 1306K | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 8700 | 11000 | 0.387 | 0.381 |
| 1307 | 1307K | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 7600 | 9300 | 0.51 | 0.502 |
| 1308 | 1308K | 40 | 90 | 23 | 1.5 | 29.5 | 9.7 | 6900 | 8400 | 0.715 | 0.704 |
| 1309 | 1309K | 45 | 100 | 25 | 1.5 | 38.1 | 12.7 | 6100 | 7500 | 0.957 | 0.942 |
| 1310 | 1310K | 50 | 110 | 27 | 2 | 43.4 | 14.1 | 5600 | 6800 | 1.21 | 1.19 |
| 1311 | 1311K | 55 | 120 | 29 | 2 | 51.3 | 17.9 | 5000 | 6200 | 1.58 | 1.56 |
| 1312 | 1312K | 60 | 130 | 31 | 2.1 | 57.2 | 20.8 | 4500 | 5500 | 1.96 | 1.93 |
| 1313 | 1313K | 65 | 140 | 33 | 2.1 | 61.7 | 22.9 | 4300 | 5200 | 2.45 | 2.41 |
| 1314 | 1314K | 70 | 150 | 35 | 2.1 | 74 | 27.7 | 4000 | 4900 | 2.99 |
|
| 1315 | 1315K | 75 | 160 | 37 | 2.1 | 78.9 | 29.9 | 4000 | 4900 | 3.56 | 3.51 |
| 1316 | 1316K | 80 | 170 | 39 | 2.1 | 88.1 | 33.1 | 3500 | 4300 | 4.18 | 4.12 |
| 1317 | 1317K | 85 | 180 | 41 | 3 | 97.3 | 37.8 | 3300 | 4000 | 4.98 | 4.91 |
| 1318 | 1318K | 90 | 190 | 43 | 3 | 116 | 44.4 | 3100 | 3800 | 5.8 | 5.71 |
| 1319 | 1319K | 95 | 200 | 45 | 3 | 132 | 50.8 | 2900 | 3600 | 6.69 | 6.59 |
| 1320 | 1320K | 100 | 215 | 47 | 3 | 143 | 57.3 | 2800 | 3400 | 8.3 | 8.19 |
| 1321 |
| 105 | 225 | 49 | 3 | 149 | 60.2 | 2600 | 3200 | 10 |
|
| 1322 | 1322K | 110 | 240 | 50 | 3 | 150 | 63.2 | 2400 | 3000 | 11.8 |
| Prod Model: |
1311 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Any Main Port in China |
| Weight: |
1.58kg |
| Package: |
Standard Export Packing |
| Service: |
OEM or Client's Design or Spedific Brand |
| MOQ: |
Negotiable Trial Order |
| Delivery Time: |
According to Quantity Ordered |
| Size: |
55*120*29mm |
| Material: |
High Quality Chrome Steel |
XTSKY INDUSTRIAL GROUP LIMITED is a group company specialized in the research, development, manufacture and export of bearings, oil seals, auto filters and auto spare parts in China.
As a professional manufacturer and exporter with many years' experience, the most advanced production equipment, experienced and qualified engineers and workers, recognized quality control systems and a friendly professional sales team for pre/after sales support make us different with others.
Our products are popular and well sold in Europe, America, South America and Southeast Asia and they enjoy an excellent reputation. If you are looking for a reliable parter with good quality that suit to your market and help your business, please feel feel free to contact with us.
Guided by the corporate mission: Super quality, satisfactory service, we are making every effort to be a good business partner of yours. We are convinced that with joint efforts, the business between us will be developed into our mutual benefit.
We sincerely wish to work with friends all over the world and we will always support our customers to make promising business in their local market.
