Xtool PS2 Truck Diagnostic Tool Original Professional Heavy Duty Scanner
| Price: |
US $ 1700-1800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
PS2 Universal Truck Diagnostic Tool
Software:
European: VOLVO, SCANIA, MAN, MERCEDES BENZ, MACK, DAF, IVECO, ERF, Astra, Bremach , Renault
Asian: ISUZU, HINO, FUSO, HYUNDAI, KIA, UD
USA: CAT, CUMMINS, DEROIT
Chinese:YUTONG,SHAANXI.SANY,KINGLONG,SINOTRUCK,JAC,FAW,DONGFENG,BEIBEN,WEICHAI POWER
1. Diagram of PS2 mainframe appearance

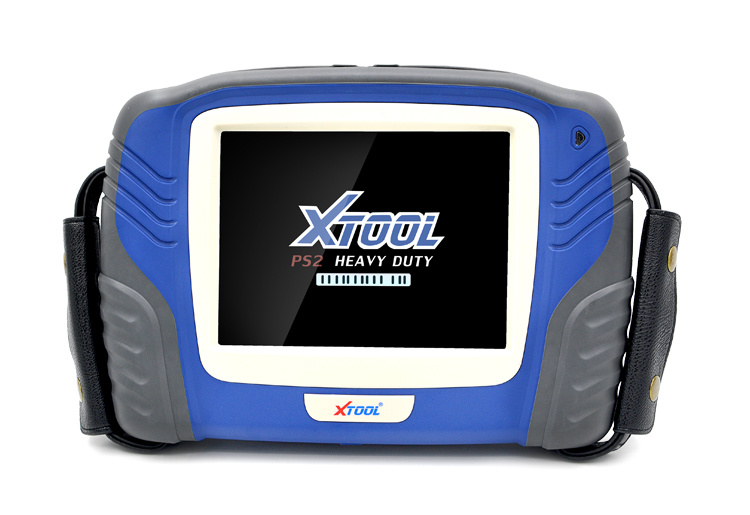

A. Front-View Figure

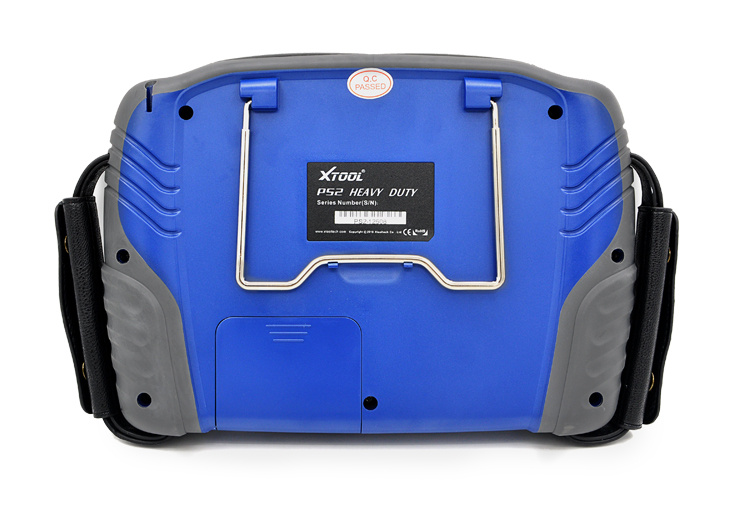

B. Back- view Figure

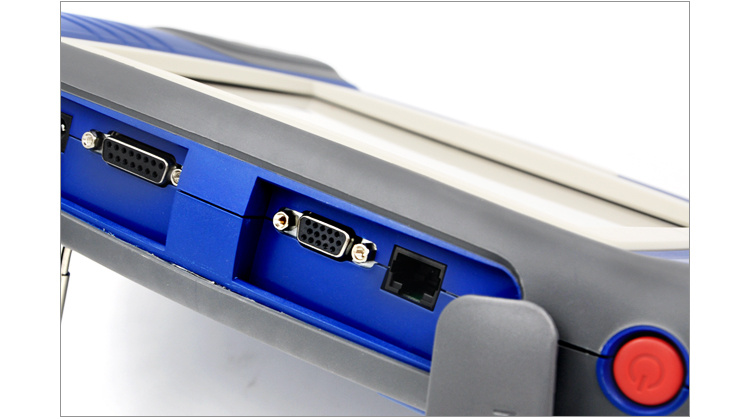

C. the upward-side connection of the mainframe:
Power switch: Uses for starting and closing of main engine
USB connection: Uses this connection to carry on the data synchronization with PC.
VGA connection: Uses this connection to link the external monitor (800x600 pixels)
Main test connection: Uses the testing line to carry on the vehicles diagnosis.
power connection: Uses for the exterior power supply
touching pen: Uses in clicking on the touching-screen.
D. the lower-side connection of the mainframe :
serial port: for the main body debugging.
SD card slot: uses for SD card
paper outlet: for mini printer

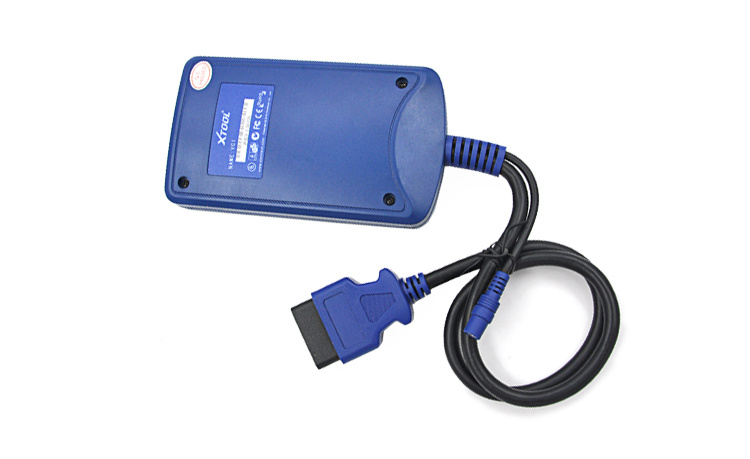

E. Function of VCI diagnostic box:
The VCI box communicates with PS2 mainframe and vehicle. It is also called lower-position machine box. This diagnostic box has two connections: DB15 and OBD II. The main testing line connects
PS2 mainframe with DB15. The OBDII connection could link with the testing adapter (vehicle with OBDII adaptor
could directly link with PS2 mainframe)
PS2 mainframe with no main testing line also can do diagnosis as the Bluetooth communication module has been
installed into the VCI diagnosis box. Please change the setting from "on-line diagnosis" to the "wireless diagnosis" on the menu if you are wondering to use it with wireless!
parameter:| operating system | WINCE 5.0 operating platforms |
| CPU | SAMSUNG 32 bits processors, basic frequency is 400MHZ |
| random memory | SDRAM 64M |
| programming memory | FLASH 64M ,supports SD card slot-in and slot-out |
| mainframe battery | rechargeable battery 3500m/Ah |
| mainframe power supply | DC12V/24V |
| mainframe power | 25W |
| printer | Mini high-speed thermal sensitive printer |
| screen | 8 inches real-color touch-screens, 800x600 with LED back-light |
| relative humidity | <90% |
| temperature | -20-50 |
| wireless communication | blue-teeth |
Package parameters:

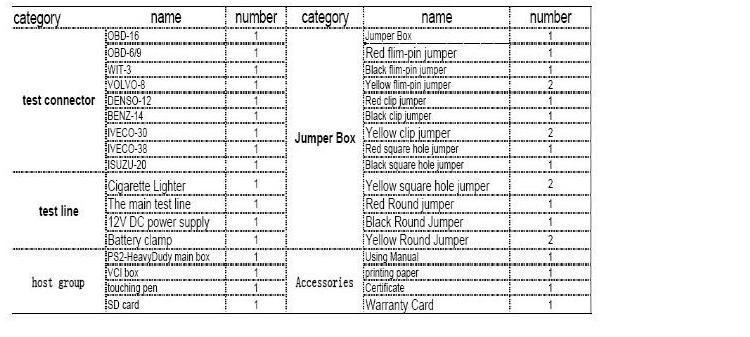

machine composition: mainframe with SD card, touching pen, testing adapters,
group of lines, SD card adaptor, operation manual and outside suitcase
overall size: 305.2x215.2x85mm
weight: 9.5KG
Contact:
| Prod Model: |
SP58 |
| Dealer Code: |
Xtoolen |
| Printer: |
Mini High-Speed Thermal Sensitive Printer |
| Support Vehicles: |
Trucks |
| Screen: |
8 Inch |
| Language: |
English |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
