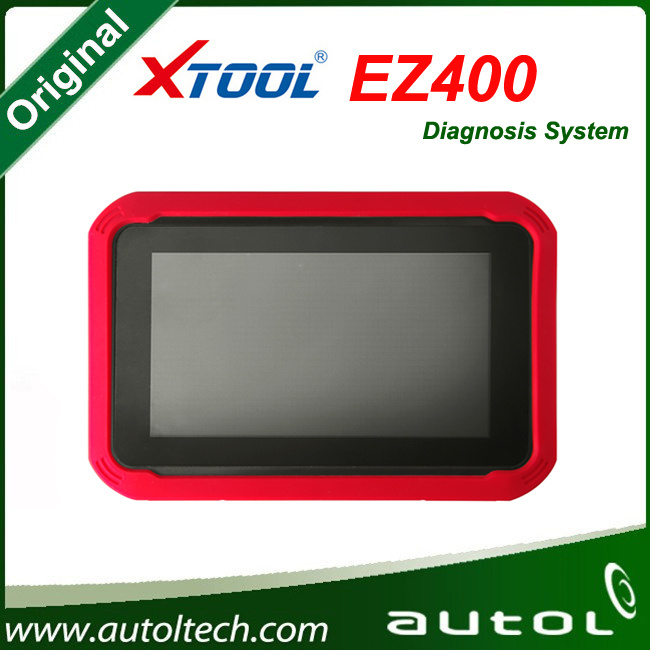

XTOOL EZ400 Diagnosis System
(2 years free software update and one year warranty)
Powerful, Fast, Economical!
More than Diagnosis!
EZ400 is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ400 provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.
l Features:
*Easy registration with EZ400 connected to WIFI
*Wireless diagnosis via Bluetooth
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*7 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes
Extensive vehicle coverage for most US, Asian and European vehicle makes
American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...
Function:
Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,
Body (ECM), Chassis...
Basic function: read fault codes, clear fault codes, live data, actuation
Accurate live data in both Wave and Dashboard form
Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment...
l Specifications:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU | Quad Core, 1.3 GHz |
| Display | 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port |
| Battery: | 2400mAh, 3.7V |
| Power Voltage: | 5V |
| Power Consumption: | 8W |
| Operating Temperature: | -20 to 50ºC(-4 to 126ºF) |
| Humidity: | <90% |
| Dimension: | (L*W*H): 208*140*15.5mm |
l Packing list:
| Type | Name | QTY |
| Test Connectors | OBD II-16 | 1 |
| HONDA-3 | 1 |
| BMW-20 | 1 |
| TOYOTA-17 | 1 |
| MAZDA-17R | 1 |
| KIA-20 | 1 |
| HYUNDAI/KIA-10 | 1 |
| NISSAN-14 | 1 |
| GM/DAEWOO-12 | 1 |
| SELFTEST | 1 |
| UNIVERSAL-3 | 1 |
| SUZUKI-3 | 1 |
| FIAT-3 | 1 |
| CITROEN-2 | 1 |
| AUDI-4 | 1 |
| MITSUBISHI-12+16 | 1 |
| BENZ-38 | 1 |
| BENZ-14 | 1 |
| Main Cable | 1 |
| battery Cable | 1 |
| Cigar Lighter Cable | 1 |
| Main Units | EZ400 Tablet | 1 |
| VCI Box | 1 |
| Charger for Tablet | 1 |
| US Power Adapter | 1 |
| EU Power Adapter | 1 |
| Micro USB Cable | 1 |
| Case | 1 |
| Stand for EZ400 | 1 |
| Accessories | Certificate of Quality | 1 |
| Packing List | 1 |
| User Manual | 1 |
| Carton | 1 |
