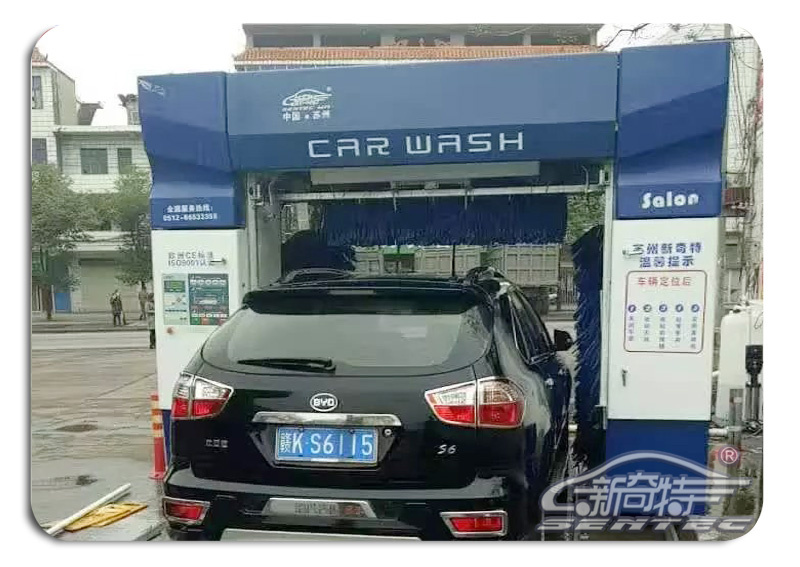

XQT-S9 type nine brush tunnel type automatic car washer
XQT-S9 type nine brush tunnel type automatic washing machine, color touch screen man-machine interface operating system, computer integrated control system, electric valve system, automatic fault detection and alarm system, automatic vehicle identification system, troubleshooting display system, car wash, car wash brush numeration system pressure regulating system, built-in electronic precise automatic mixing foam system the built-in automatic proportioning system, wax, vehicle safety protection device, optical positioning system, high pressure pump group, 4 groups of fan 14 super air bag type air drying system, a strong fixed high pressure water flushing system, steel plate galvanized coating (spray);
Main technical parameters:
Machine size (mm:12500 (long), *3800 (width) *3000 (height)
Installation dimension (mm):13000 (long) *4000 (width) *3200 (height)
The car speed: =90 seconds / A + dry cleaning
Power / power: three-phase four wire 380V / 30KW
Water consumption: 90-100L / car
Rolling brush structure: the top brush a set of vertical brush four sets of small vertical brush four
High-pressure water jet structure: a group of a group of pre wash rinse spray group
Dry structure: strong modeling air dry four system group
Video Demo: http://www.szxqt.cn/sp.html#maodian_11
Main performance characteristics:
1, XQT-S9 type nine brush tunnel type computer washing machine, cleaning all kinds of cars and vans;
2 color touch screen man-machine interface, operating system, computer integrated control system;
3. Electric valve system, automatic fault detection and alarm system, automatic identification system, troubleshooting method, display system, car washing counting system and electronic control system of roller brush cleaning pressure;
4, built-in automatic proportioning system, built-in automatic mixing wax foam system, vehicle safety protection device, optical positioning system, high pressure pump group, 4 groups of fan 14 super air bag type air drying system, a strong fixed high pressure water washing system, zinc paint (spray);
5. At the entrance, the vehicle is more proper. The whole set of machines is equipped with remote monitoring and control system, car washing, roof shed, glass (optional).
