Ww-5131 Cbt125/Dayun-4 /Wy125 Motorcycle Brake Shoe,
| Price: |
US $ 0.81-0.82/Pairs |
| Trade Terms: |
FOB |
| Min Order: |
1000/Pairs |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
WW-5131 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Model: |
Cbt125 |
| Color: |
Black |
| Key Words: |
Brake Shoe |
| Main Market: |
South America Middle East,Africa |
| Raw Material: |
Non-Asbestos |
| Trial Order: |
Acceptable |
| Metter Specification: |
OEM Quality |
| Classification: |
Drum |
| Position: |
Rear |
| Inner Package: |
Colourful Box |
| Type: |
Motorcycle Brake |
| Material: |
Alloy |
| Certification: |
SGS |
Product Description

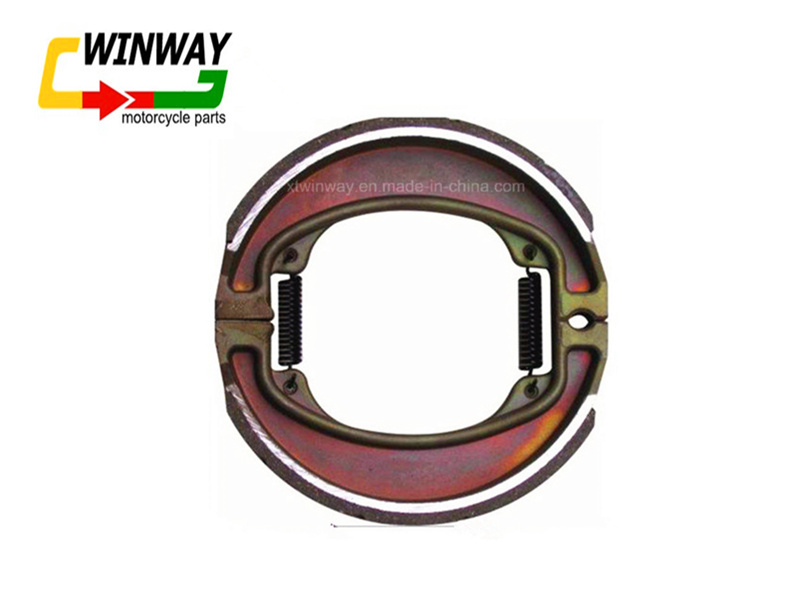

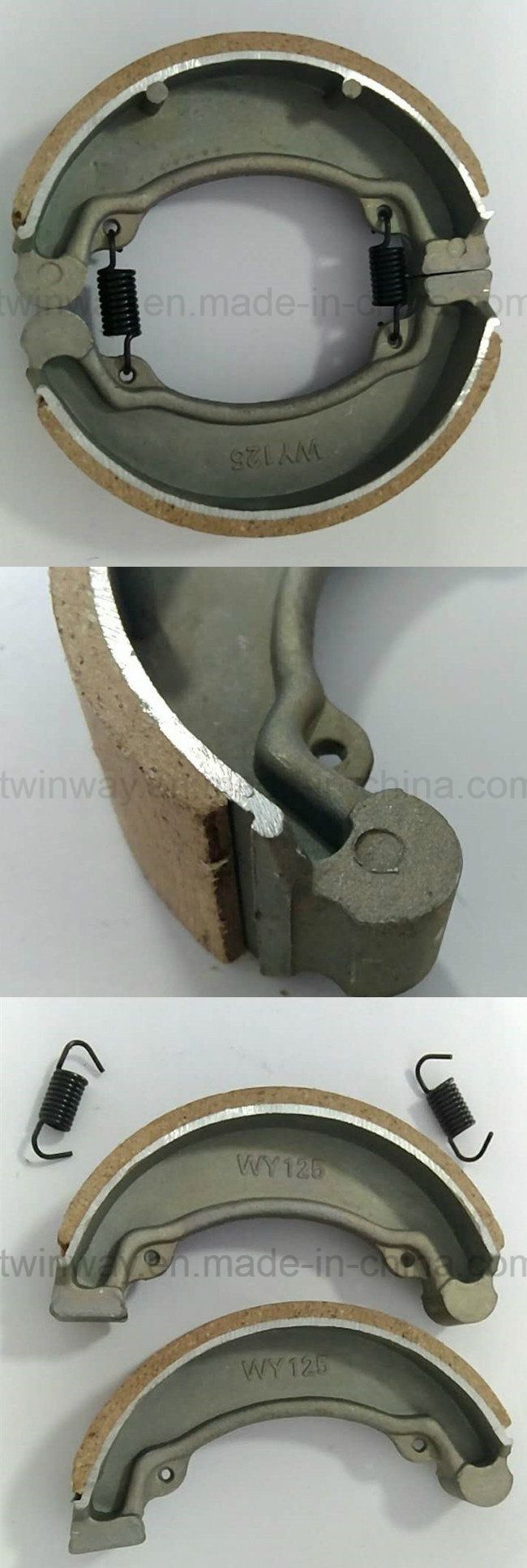

WW-5131 CBT125/WY125 motorcycle brake shoes, Synthetic ceramic carbon fiber brake parts
Material:ADC12,Synthetic ceramic carbon fiber brake friction plate

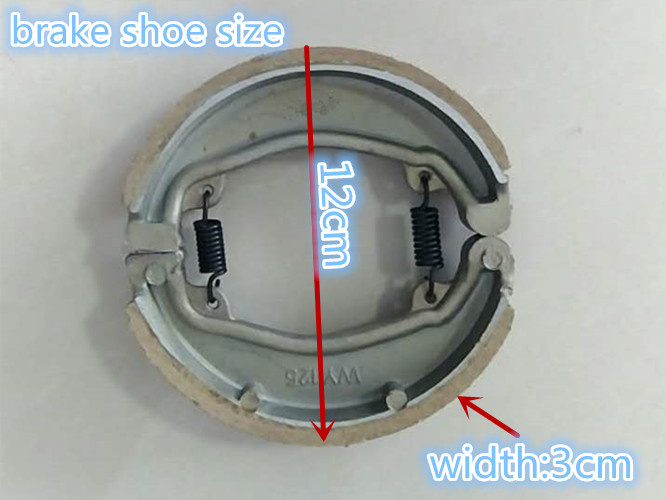

Diameter:130MM
Friction coefficient:0.43
Suitable motorcycle:GL145,WY125,CBT125,KC6,JH125/JH145,JH150The brake oars of this product are fabricated with high quality aluminum alloy material (ADC12). The tholes are designed scientifically and reasonably with equal back force distributed, which makes the tholes have resistance to rupture and shape change advantages. The shoe brake is manufactured with excellent abrasion resisting carbon fiber characterized by resistance to abrasion and high temperature. The shoe brake is cohered with brake oars through import cement heating and the shear strength is ≥3.72Mpa.| Item Name | Motorcycle brake shoe |
| performance | high temperature resistance & Wear Resistance |
| Shear strength | ≥3.72 |
| Customized Design&Size | Available |
| Material | abrasion resisting carbon fiber |
| OEM | Acceptable |
| Mixed Container | Acceptable |
| Package Details | Small Box+Cartons |
| MOQ | 500 Pairs |
| Loading Port | Tianjin/Shanghai |
| Delivery detail | 25days,after order confirm |
| Main market | Middle east,Africa,South America |
The Material of Brake Shoe-- Aluminum rack: ADC12 Aluminum Alloy
The aluminum rack of brake shoes are processed by 180 ton high pressure casting machine, which will ensure the aluminum rack is hard and high density without any air bubble inside.
The Material of Brake Shoe-Brake lining: asbestos, non-asbestos, soft leather

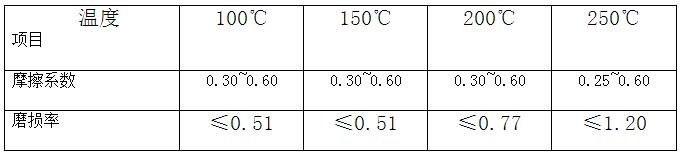

The special formulations of this brake shoes friction material make it Low noise, good thermal recession and recovery, good performance of water recession.Technical performance requirements are in the following table:
2.Impact strength,hardness index is in line withGB5763.
3.Refer to samples for color.
4.No defects on the brake pads,such as cracks,scars and uneven.
5.No grease on the surface of brake pads.
Spring Material65# Mn Steel
Flat Button Material40# Mn Steel
Shoe surface:Electrostatic painting
Our factory main products is for brake shoe / brake pad / clutch plate .
Our factory started from 1987 , until now it has 27 years . Throught many years to study how is the best brake shoe , how to offer our customers good products and hope our customer to get more reputation and expand brand market .
Xingtai Winway Import and Export trading CO., LTD
ADD: 176#Kaiyuan Road, Qiaodong District, Xingtai City, Hebei, P. R. China
Tel: 0086-319-3896108
Fax: 0086-319-3896109
Web: www.xtwinway.com
Xingtai Winway Import&Export Trading Co., Ltd is one of the special supplier of motorcycle part.
Our main product is Brake shoe, Shock absorber, Speedometer, Head light use for CG125, AX100, WY125, BAJAJ100/150/180, CD70, V50/80, PGT, GY150, GXT200, JAWA350.
Our main market is Middle East, Africa, South Asia. Such as Bangladesh, Pakistan, India, Thailand, Iran, Iraq, Kuwait, Dubai, Nigeria, Kenya, Congo, Tanzania, Uganda, Mozambique, Zambia, and so on.
Our aim is develop high quality products, offer competitive price, make fast shipment for customer's satisfaction.
Our company have the export team for more than 10 years, have enough experience for deal with all the matter for FOB or CIF, we make the FORM E/FORM B, product certificate, SGS, BV,
All the heavy parts like kick starter, sprocket, nut out of carton have Nelon bag, this is good for shipping,
No lose any small parts in the carton, meanwhile we will put sticker on the bag.
If you order big quantity we can make your package, like bag, box, cartons, this is good for long time business.
Our company main product is shock absorber, brake shoe, cable, mirror, speedometer, sprocket. This is new team for export company, we will offer factory price to you, then check our special,
Give your trust to us, we will show our advantage to you.
