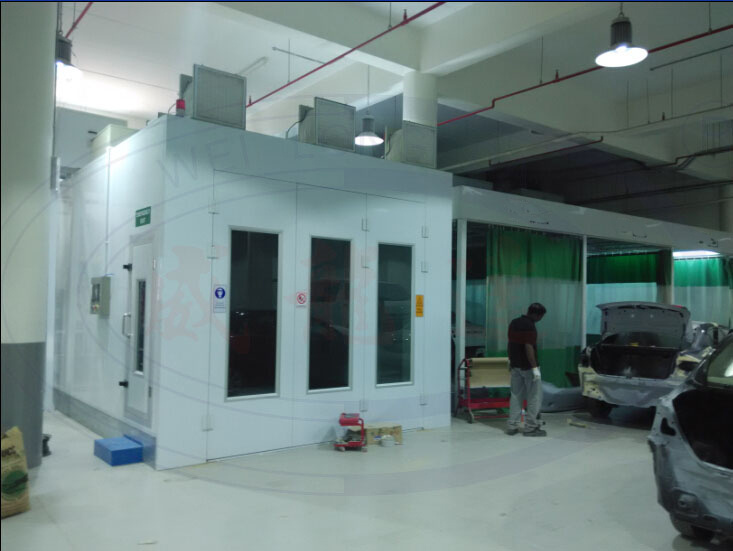

1. Car Baking Oven for water based paint.
2. CE certificate we have
3. Excellent technology with touch screen control spray booth
4. High quality and factory cost spray booth
Welcome to visit our factory at anytime.
External Size:(mm) | 7000x5450x4000 | Front Door:(mm) | 3000(w)x2750(h) |
Internal Size:(mm) | 6900x3900x2800 | Total Power:(kw) | 20 |
Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The Colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice,including blue, red, orange and white. High quality galvanized steel roof panel. |
Basement | 300mm high powder coated galvanized steel sheet and square steel pipe construction. 3 row of checked plate and 2 row of grids, antirust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Powder coated full ramps. |
Door | 3 pieces of luxury front doors, made of 0.8mm galvanized powder coated sheet, beautiful and strong. Size: 3000(w)*2750(h). 1 piece of emergency door. |
Air Circulation System | Intake Fan | 1x7.5kw direct drive turbo fan, Air Flow is 25000m3/h.BELIMO 20N electric damper. Air flow: 24,000m3/h. The wire core of our fans is full cooper so that our fans are very durable. |
Exhaust Fan | 1x5.5kw direct drive turbo fan, Air Flow is 18000 m3/h. |
Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe 750*750*1000, and 1piece of elbow. |
Nozzles | 60 units ceiling nozzles with 3 sets of centrifugal fan.3×1.5KW.Air flow is 15000 m3/h,special for water based paint spraying and drying. |
Air circulation type | Full inner air circulation type, particularly rapid heating, insulation ability, especially energy,reflect its superior performance in a cold environment. |
Filtering | Multilayer filtering structure. The primary pocket filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter and active carbon filter beside exhaust fan can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%. |
Heating System | Burner | Original Italy RIELLO RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60°C) Max temperature at 80°C. Fuel consumption is 4-5kg/vehicle. |
Heat Exchanger | Two layers. Made of stainless steel. The heat exchange rate can reach 85%. Two layers to make our heating system safer and get higher heat exchange rate.What is more, we make two wings to make the temperature rise more quickly and save energy. |
Air make up cabinet | The surface plate is powder coated galvanized plate, antirust, strong and beautiful;The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
Oil tank support | Tank carefully made of high quality steel, the powder coated treatment, beautiful and durable. |
Fume pipe | Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. |
LED Lighting System | Light tube | Ceiling light has 32 pieces of 16w LED lamps. Side light has 16 pieces of 16kw lamps. 900 Lux.LED lamps are more bright and durable.The grade of lighting box's dustproof and waterproof reach IP54 grade. |
Light box | Welded galvanized plate, powder coated treatment, surface brightness, color uniformity. |
Filtering System | Pre-filter | Grade G2 plate type fiber glass filter; Dual filtering structure. The pre-filter can capture granules larger than 10μm. |
Ceiling filter | EU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reach 98%. |
Floor filter | Multilayer glass Fiber. The air cleanliness in the working environment can reach 98%. |
Ceiling filter support | Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong,rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton. |
Pollution Control System | Special configure with M pattern active carbon pocket filter system to filter paint and dust emission. |
Control system | Touch Screen Control | Luxury touch screen Microcomputer control system, the system is composed of PLC, Converter, Air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system. Especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devicesalert. It makes our booth very safe. |
Damper | Air damper, efficient and durable. |
