| Prod Model: |
WLD9100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size: |
6.9X3.9X2.8m |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS or Rock Wool |
| Brand: |
Weilongda |
Product Description
1. 16 years manufacturing experience.
2. Real spray booth manufactory in China
3. OEM service in spray booth
Welcome to visit our factory any time

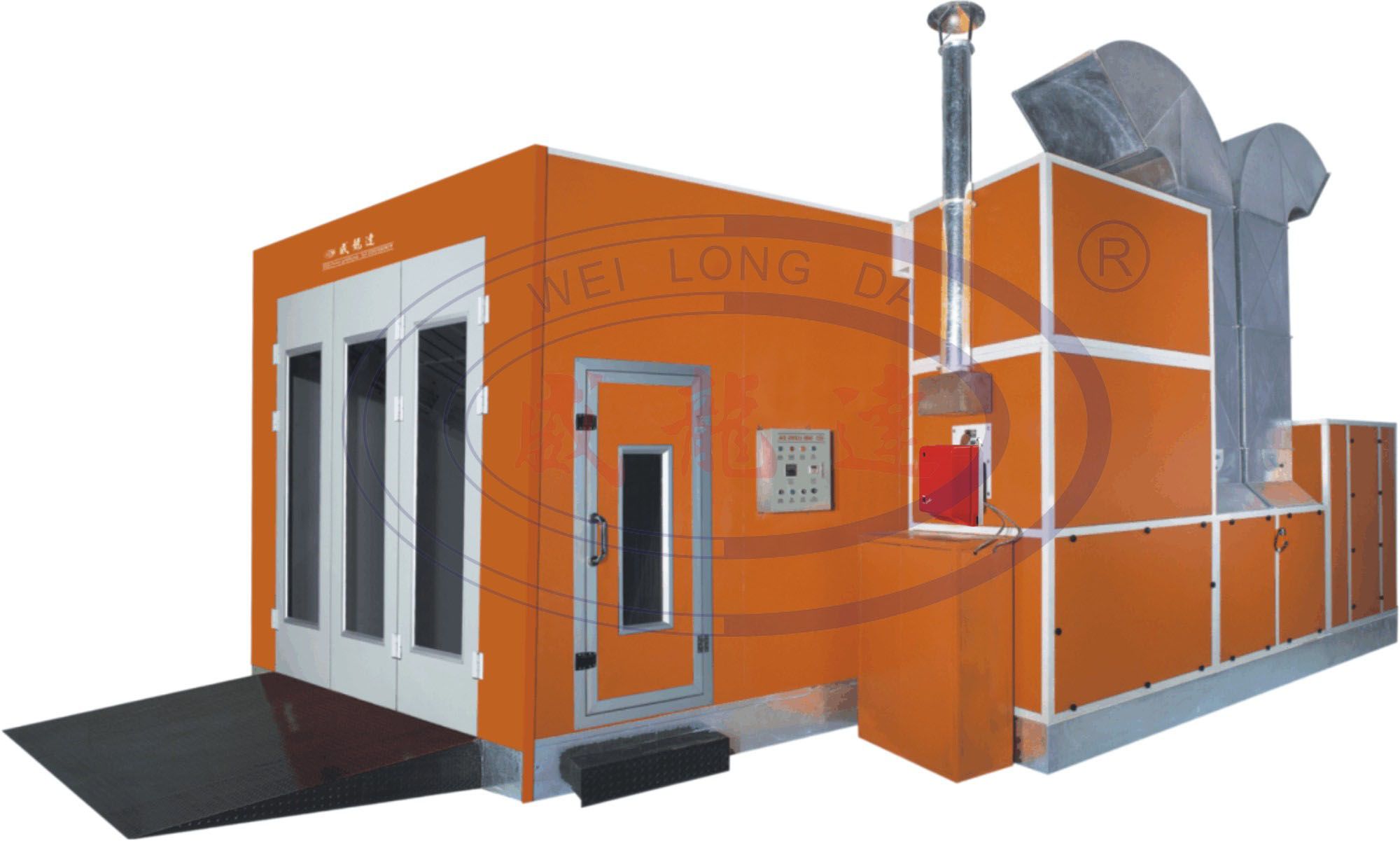

WLD9100 Luxury Spray Booth with Active Carbon Cabin (CE)
| External Size | L7000×W5450×H3480(mm) | Air Flow | 24000m³/h |
| Internal Size | L6900×W3900×H2800(mm) | Air Speed | 0.3~0.5m/s |
| Main Door Size | W3000×H2750(mm) | Fuel Consumption | 5~6kg/vehicle |
| Total Power | 16KW | Application | Saloon Car/Jeep/Wooden/Furniture |
| Wallboard | 50mm EPS, foam density is 14kg/m³. 0.476mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight. |
| Basement | Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 3pcs of large ramps. |
| Door | 3 folders of front door, made of 0.8mm colorful steel skin board, with aluminum view window, size: W3000×H2750(mm). 1pc of service door, size: W800×H2000 (mm). |
| Fan | 2×4KW centrifugal intake fans, 1×5.5KW centrifugal exhaust fan, introduced from Siemens technology, supply large air flow to the working environment at low noise. |
| Air Pipe | Made of galvanized steel sheet, consist of 4pcs of straight pipes 750*750*1000 and 1pc of elbow. |
| Primary Filter | Dual filtering structure, the primary filter is M pattern non-woven filter bags. It can capture granules bigger than 10μm. |
| Ceiling Filter | Ceiling filter captures granules larger than 5μm. |
| Floor Filter | Multilayer glass fiber, the air cleanliness in the working environment can reach 98%. Special configure with multilayer active carbon cabinet filter system. |
| Burner | Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time is 4~5min (20~60ºC). Max. temperature is 80ºC. |
| Heat Exchanger | Made of stainless steel, two layers and two wings for temperature rising quickly and dissipating more heat, the heat exchange rate can reach 85%. |
| Control Box | Micro-soft computer control box, use high quality electronic component, the temperature and the drying time is accurately shown. Equipped with overheat, overload & short-circuited protected, safe and reliable. |
| Damper | BELIMO 20N electric damper. |
| Ceiling Light | 8 units × 4pcs=32pcs of LED lamps. |
| Side Light | 8 units × 2pcs=16pcs of LED lamps. |
Packaging & Shipping
Polyfoam and Carton,one set in a 20ft container,3 sets in a 40HQ container.
Company Information

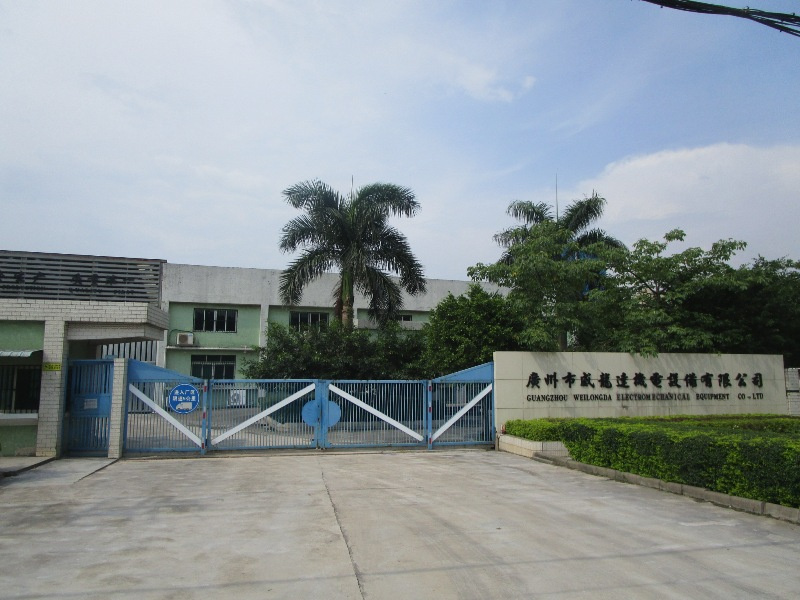

Guangzhou WeiLongDa Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipment manufacturers and suppliers in China.Covering more than 15000 square meters,it manufactures spray booths, preparation stations,auto lifts and supplies body repair systems, wheel alignment,tire changer,wheel balancer and other relevant garage equipment to the clients all over the world.


FAQ
Why Choose WeiLongDa?
1. Verified 16 years original big factory,covers more than 18,000 square meters. We don't rent a workshop or factory to manufacture. We built the factory by ourself,so we never move to other places,then you can find us very easily at any time.
2. Quality first and service highest are the principle and belief in our WeiLongDa members. We are sincere and honest in the business.

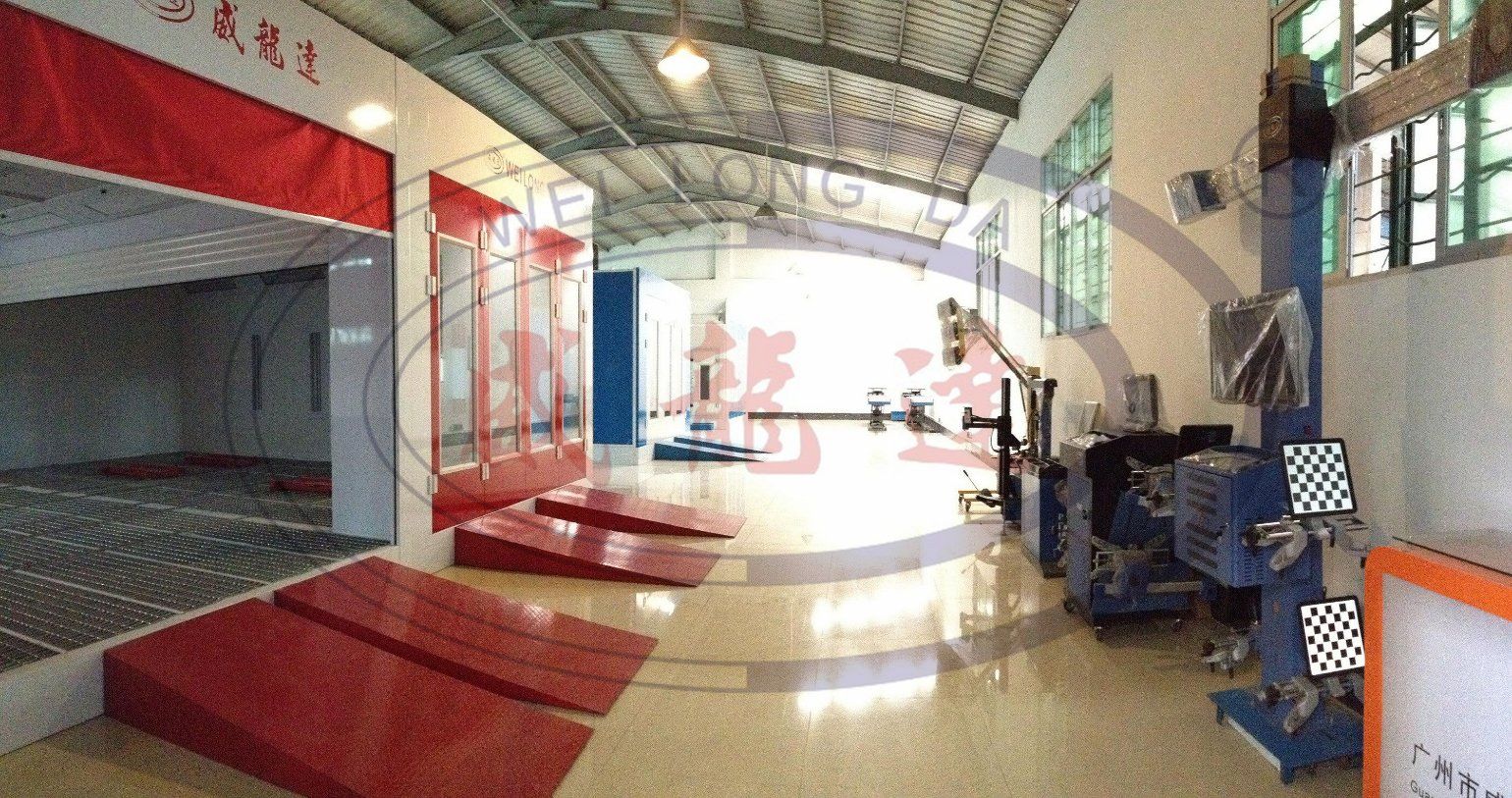

3. We own the biggest product showroom in China; Welcome to visit our factory at any time.
4. Professional engineer and technician team to make sure perfect product structure,design and layout.
5. With excellent attitude and service,our experienced export sales team members provide good solution for your standard or customized requirements and make sure smooth shipping for your goods.
6. Powder coating technology is applied in the production for many parts of the our products,such as beams,frames,cabinets,and basement etc,very antirust,durable and beautiful.
7. High quality raw materials,good facilities and skilled workers to make sure high quality products in the production. Quality control system is carried out in the whole production process.
8. Good after-sales service.
9. Specially verified by famous Germany TUV Rheinland,more reliable. Please watch our TUV video and read TUV report to know more about us.
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
With your join, the future is better.
