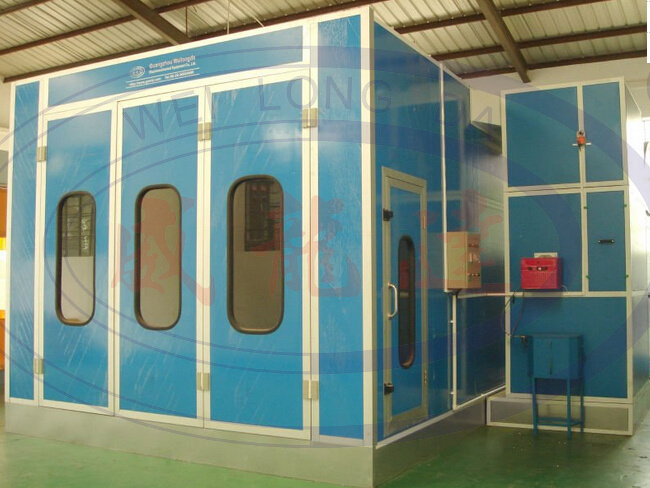

Wld8100 Auto Painting Equipment (Standard)

Wld8100 Auto Painting Equipment (Standard)
Price: US $ 5000-20000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: WLD8100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: 6.9X3.9X2.6m
External Size: 7000*5450*3480mm
Internal Size: 6900*3900*2800mm
Air Flow: 24000m3/H
Air Speed: 0.3-0.5m/S
Power: 10kw
Vehicle Suited: Saloon Car/Jeep/SUV
Certification: CE
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Substrate: EPS or Rock Wool
Brand: Weilongda

Product Description

Auto Painting Equipment  Suitable for car and furniture
Famous brand spray booth in China and factory cost,
OEM service is avaliabe.
Welcome feel free to contact us!

External Size:(mm)     7000x5450x3480                 Front Door:(mm)
                 Aluminum Frame
                          3000(w)x2750(h)
Internal Size:(mm)6900x3900x2800                 Total Power:(kw)                                   10
   Cabin       System Wallboard

Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel.
  Basement300mm high powder coated galvanized steel sheet and square steel pipe construction. 3 row of checked plate and 2 row of grids ,anti-rust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Two powder coated ramps.
     Door3 pieces of aluminum front doors. Size: 3000(w)*2750(h). 1 piece of emergency door.
     Air Circulation System          Intake Fan2x4kw intake fan. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h. The wire core of our fans is full cooper so our fans are very durable.
       Air PipeMade of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow.
      FilteringMultilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%.
 Heating System             BurnerOriginal Italy RIELLO G20 diesel burner, 200,000Kcal/h. The heating time 5-7min(20-60°C) Max. temperature at 80°C. Fuel consumption is 4-5kg/ vehicle.
 Heat ExchangerTwo layers. Made of stainless steel. The heat exchange rate can reach 85%.Two layers to make our heating system safer and get higher heat exchange rate. What is more, we make two wings to make the temperature rise more quickly and save energy.
        Air make up           cabinetThe surface plate is powder coated galvanized plate, antirust, strong and beautiful;The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity.
 Oil tank supportTank carefully made of high quality steel, the powder coated treatment, beautiful and durable.
     Fume pipeFume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows.
    LED         Lighting     System        Light tubeCeiling light has 24 pieces of 16w LED lamps. Side light has 16 pieces of 16kw LED lamps. 900 Lux. LED lamps are more bright and durable. The grade of lighting box's dustproof and waterproof reach IP54 grade.
      Light boxWelded galvanized plate, powder coated treatment, surface brightness, color uniformity.
  Filtering     System           Pre-filterGrade G2 plate type fiber glass filter; Dual filtering structure. The
Pre-filter can capture granules larger than 10μm.
     Ceiling filterEU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%.
      Floor filterMultilayer glass Fiber. The air cleanliness in the working environment can reach 98%.
     Ceiling filter           support Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton.
Pollution Control        SystemMulti-layer fiberglass filter to filter paint and dust emission.
  Control     system    Control panel  Microcomputer control system
      Function Painting, constant temperature painting , drying, lighting, painting time and
drying time setting ;emergency stop switch, failure indication etc,especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe.
